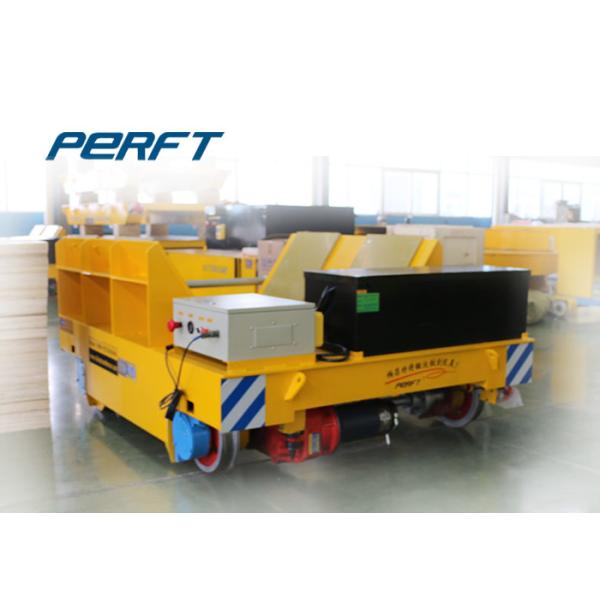

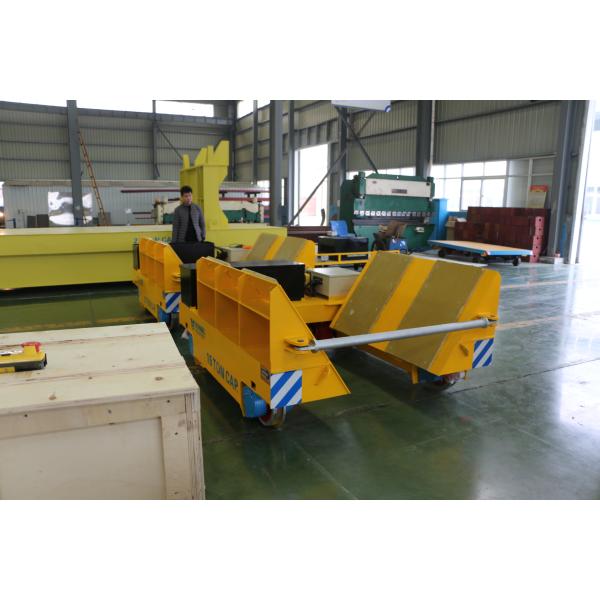

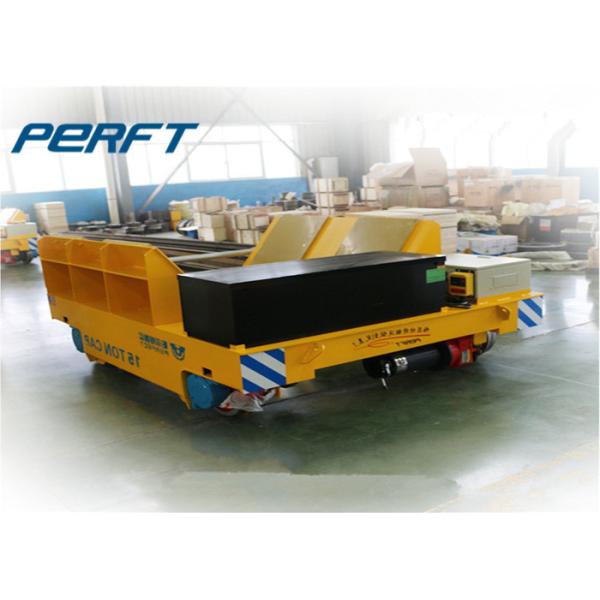

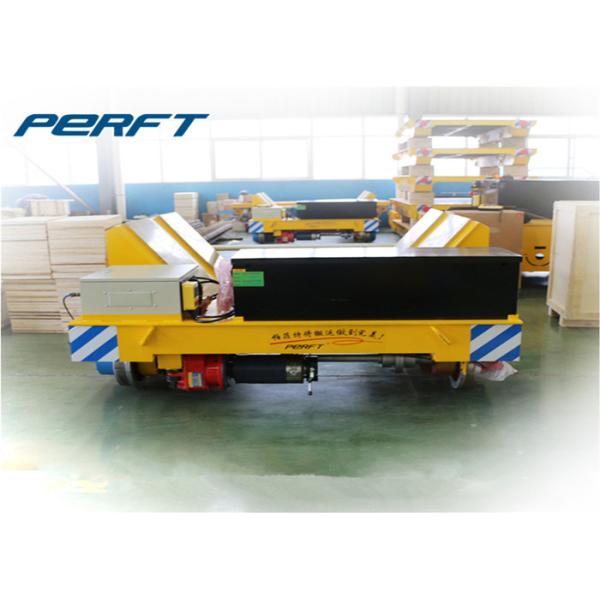

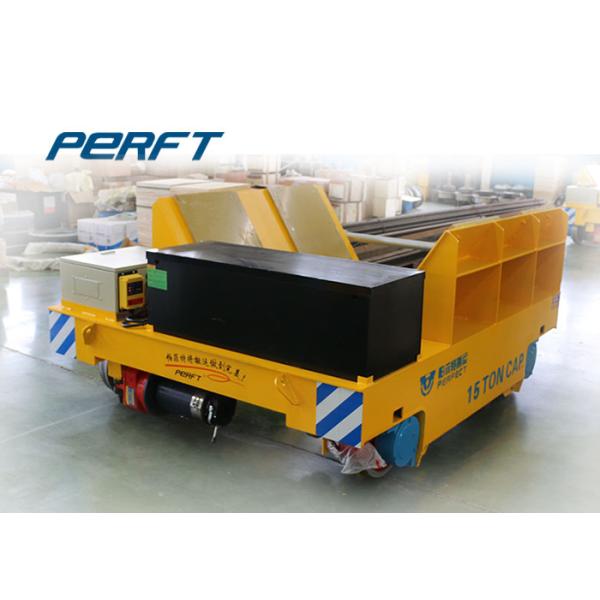

PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
Specifications
Brand Name :
coil transfer car on rails
Model Number :
coil transfer car on rails
Certification :
CE ISO SGS
Place of Origin :
Henan China
MOQ :
1
Price :
Usd5000-9000/set
Supply Ability :
30sets/week
Delivery Time :
20 work days after received balance payment
Packaging Details :
Trap and wooden case
Product Name :
PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
Battery Capacity(Ah) :
180-600
Running time When Full Load :
2.9-4.35
Battery Voltage(v) :
24-72
Rail Inner Gauge(mm) :
1200-2000
Wheel Base(mm) :
1200-7000
Running Distance for One Charge(Km) :
7
Description

PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant

PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant

KPDZ series PLC Controlled Battery Motorized Steel Coil Transfer Car on Rails for Metal Plant are powered by the low voltage electricity from the railways. The power source AC 380v is transformed into AC 36v two-phase and are respectively connected to the two rails. Then the wheels and conducting plate lead the AC 36v electricity to the electrical appliance box which is installed on the PLC Controlled Battery Motorized Steel Coil Transfer Car on Rails for Metal Plant..And then the AC 36v is transformed into DC 36V through the transformer. then controls DC Metallurgy motor through DC control system to make the flat carts start, stop, go forward and backward and adjust the speed and so on.

Advantage

1.PLC system.

2.V or U frame to add the coil stability.

3.Wireless remote control.

4.The V or U shape can be remove freely off.

5.The capacity,table size,motor power,running speed can be customized.

6.The Ground Clearance of the Steel Coil Transfer Car on Rails required 50mm.

7.The platform of the coil transfer trolley is water roof designed.

8.Widely used in the aluminum coil plant.

Scheme

PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant

Technical Table

Rated Load(t) 2 20 50 100 150
Table Size(mm) Length(L) 2000 4000 5500 6500 10000
Width(W) 1500 2200 2500 2800 3000
Heigth(H) 450 550 650 900 1200
Wheel Base(mm) 1200 2800 4200 4900 7000
Rail Inner Gauge(mm) 1200 1435 1435 2000 2000
Wheel Diameter(mm) 270 350 500 600 600
Wheel Quantity 4 4 4 4 8
Ground Clearance(mm) 50 50 50 75 75
Running Speed(min) 0-25 0-20 0-20 0-20 0-18
Motor Power(kw) 1 2.2 5 10 15
Battery Capacity(Ah) 180 180 330 440 600
Battery Voltage(V) 24 48 48 72 72
Running Time When Full Load 4.32 4 3.3 3.2 2.9
Running Distance for One Charge(Km) 6.5 4.8 4 3.8 3.2
Max Wheel Load(KN) 14.4 77.7 174 343.8 265.2
Reference Weight(t) 2.8 5.9 8 14.6 26.8
Recommended Rail Model P15 P24 P43 QU100 QU100

Componences

PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant

Application

PLC System Remote Controlled Battery Motorized Steel Coil Transfer Car on Rails for Aluminum Coiling Plant
