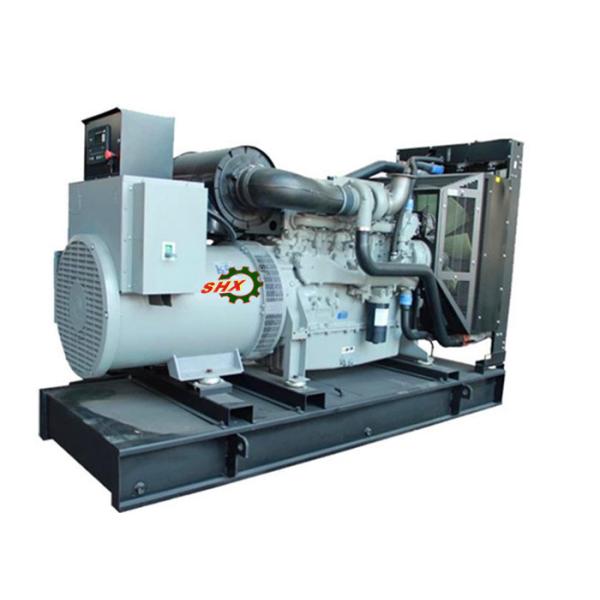

150 Kva Perkins Diesel Generator Genset Commercial 400 Rated Voltage 50/60Hz
150 Kva Perkins Diesel Generator Genset Commercial 400 Rated Voltage 50/60Hz
Specifications
Brand Name :
SHX
Model Number :
SPF350
Certification :
ISO9001:2015, CE, TUV, BV
Place of Origin :
Foshan, China
MOQ :
1 Set
Price :
Negotiation
Payment Terms :
L/C, T/T
Supply Ability :
30 Sets per month
Delivery Time :
20 working days
Packaging Details :
Standard export packing
Product Name :
350KVA Perkins Generator
Color :
Gray
Insulation Grade :
Class H
Protection Grade :
IP23
Application :
Industrial
Engine brand :
Perkins
Alternator brand :
Faraday
Control Mode :
Auto/man
Description

150 Kva Perkins Diesel Genset 400 Rated Voltage 50/60Hz Commercial Generators

General Feature:

1. Prime power 120KW / 150KVA, standby power 132KW / 165KVA
2. Engine brand: Perkins
3. Alternator: Stamford
4. Water-cooled
5. Manual start / auto start
7. Soundproof canopy is optional
8. 230 / 400V AC, 50Hz / 60Hz, 0.8pF three-phase and four wires alternating current output


Genset Specifications:

Genset model SPS165
Genset rated power 120KW / 150KVA
Rated voltage 400/230V (adjustable)
Rated current 216Amps
Frequency 50 Hz / 60 Hz
Power factor 0.8 Lagging
Connecting type 3 phase 4 wire
Cooling system Closed cycle water-cooled with fan, water tank
Overall dimension (L×W×H) mm 2750*850*1150
Gross weight (kg) 1250

Engine Specifications:

Diesel Engine
Brand PERKINS
Model 1106A-70TAG2
Engine type 6 cylinders in line, 4 stroke, direct injection
Aspiration Turbocharged and intercooled
Rotating speed 1500 RPM
Engine cooling system Water-cooled
Fuel injection system Electronic
Starting method By 24V batteries
Engine filter system Dry type air filter ,fuel filter, oil filter, water filter
Displacement(L) 7
Bore×Stroke(mm) 105×135
Compression ratio 16:1
100% Load fuel consumption (l/h) ≤205
Lube capacity(L) 16.5

Alternator Specifications:

Alternator
Brand STAMFORD
Model UCI274F
Excite type Brushless self-excited AVR regulation
Connecting type 3 phase 4 pole
Steady frequency change 0.50%
No load voltage ≥95%-105%
Steady voltage ≤±1%
Insulation class Class H
Protection grade IP23

Operation Display:

  • Unit voltage, tri-phase load current and frequency display
  • Water temperature, oil pressure display
  • Fuel level, fuel temperature display
  • Audible and visual alarm lamps and buzzers
  • Starting system: DC alternator is used to start engine
  • Short circuit protection: MCCB air switch
  • Cooling system: Combined cooling water tank fitted to meet the requirement of radiation at ambient temperature 40 degree
  • Filter system: Oil, fuel and air filter
  • Accessories: Exhaust elbow, bellow, muffler

150 Kva Perkins Diesel Generator Genset Commercial 400 Rated Voltage 50/60Hz
