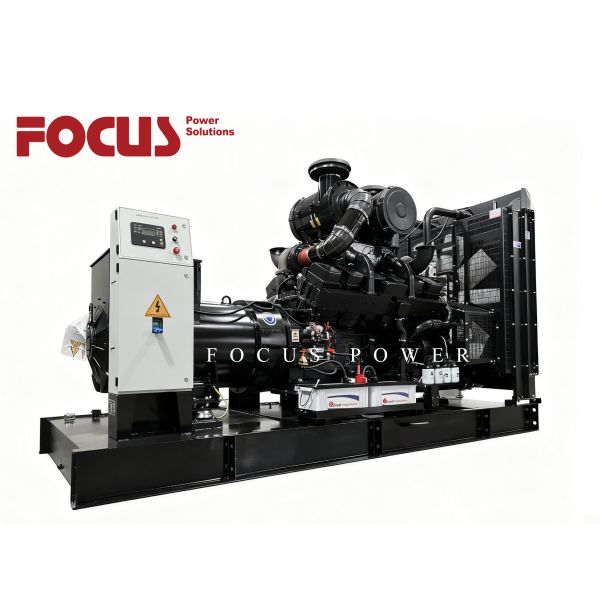

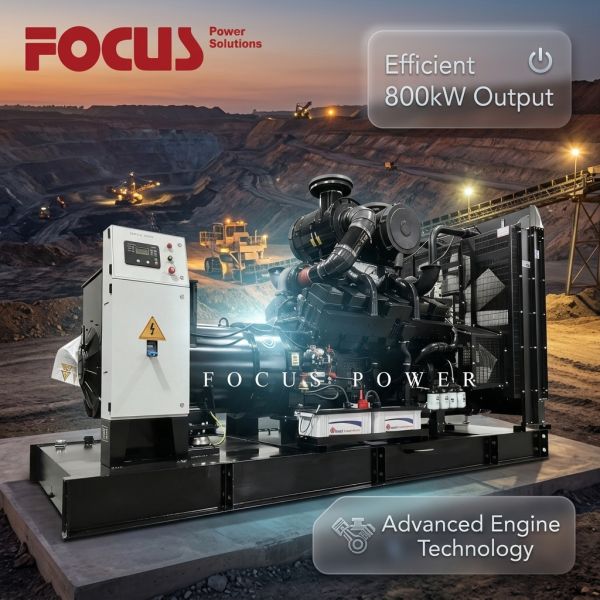

1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
Specifications
Brand Name :
CCEC
Model Number :
KTA38-G7E
Certification :
CE ISO9001
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Delivery Time :
25-30 WORKING DAYS
Controlpanel :
Digital control panel with monitoring
Frequency :
50Hz
Productname :
Prime Power Genset
Alternatorbrand :
Stamford / Leroy Somer
Voltage :
400V / 230V
name :
800 kw prime power generator
Description
1000kVA 800kW Prime Power Generator for Mining Applications
The 1000kVA 800kW Prime Power Generator is a high-performance, reliable power solution specifically engineered for demanding mining environments. Powered by the durable CCEC KTA38-G7E engine, this generator delivers stable and continuous power output, making it ideal for mining operations requiring uninterrupted energy supply to support heavy machinery and equipment.
1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
Robust Design & Key Features
This generator features a rugged design with high-strength alloy cast iron cylinder block that minimizes vibration and noise while enhancing durability. Equipped with the CCEC KTA38-G7E engine—a 12-cylinder V-type four-stroke engine with advanced turbocharging and after-cooling technology—it ensures excellent fuel efficiency and emission performance.
  • Long service life with minimal maintenance requirements
  • High reliability and operational stability
  • Strong adaptability to extreme environmental conditions
  • Excellent performance in high-temperature and low-altitude environments
  • Precise fuel injection control and efficient cooling system
Primary Applications
The 1000kVA 800kW Prime Power Generator is primarily used to provide continuous power for mining operations, including crushers, conveyors, drills, and other mining machinery. It can also serve as a backup power source to prevent production interruptions caused by grid failures, ensuring stable power output even under heavy load conditions for extended periods.
CCEC KTA38-G7E Engine Specifications
Engine Type 12 cylinder V type four stroke
Displacement 37.8 liters
Bore and Stroke 159mm x 159mm
Prime Power 935kW
Speed 1500rpm
Fuel System CMI PT fuel system
Cooling System Closed water cooling cycle
Starting Method DC24V electric start
1000kVA 800kW Prime Power Generator With CCEC KTA38-G7E Engine For Mining
Global Market Availability
This high-quality generator is supplied to key markets including the Middle East, Southeast Asia, Russia, Africa, South America, Latin America, and Australia—regions where mining activities are intensive and demand robust power systems.
The 1000kVA 800kW Prime Power Generator combines the reliability of the CCEC KTA38-G7E engine with practical design, making it a cost-effective and trustworthy power solution for mining operations. Compliance with international standards and easy access to spare parts further enhance its competitiveness in global mining power markets.
