Specifications
Brand Name :
MBKL
Model Number :
MB-64
Certification :
CE&ISO
Place of Origin :
China
MOQ :
1 set
Price :
USD$210000-USD$268000
Payment Terms :
L/C,T/T,
Supply Ability :
200sets per month
Delivery Time :
10 working days
Packaging Details :
Plastic wrapped on Polywood bearers as consumer requirements. LCL, 20FT and 40FT are available.
Engine Brand :
Perkins 1104A-44TG2
Alternator :
MBKL, Leroy Somer, Stamford, Wuxi Stanford
Control Panel :
Smartgen, Deep sea
Rated Power :
64KW/80KVA
Phase :
AC Single Phase / AC Three Phase
Frequency :
50HZ/60HZ
Rated Voltage :
230V / 400V
Speed :
1500RPM/1800RPM
Rated Current :
115A
Type :
Open Type / Silent Type
Warranty :
12 Months / 1000 Hours
Fuel :
Diesel
ATS :
Optional
Description

64kw/80kva with Perkins engine generator 80kva powered by Perkins 1104A-44TG2 generator price



Perkins diesel engine advantage



1. Original Perkins diesel engine model :1104A-44TG2
2. Comfortable, lower vibration and noise.
3.
The emission requirements o fnon-road diesel engines have been meet , and some products hanveachieved
the U.S.EPA, EuropeE-mark, india CPCB and other emission standars.



64kw/80kva Perkins diesel generator specification as below:



Genset

Model

MB-64

Output Power

64KW/80KVA

Power Factor

COSΦ=0.8(lagging)

Maximum Output Current

115.2A

Weight

1455KG

Silent Genset Dimensions

2670×1080×1865mm

Voltage

400/230

Frequency

50Hz

Diesel Engine

Manufacturer

Perkins

Model

1104A-44TG2

Rotate Speed

1500RPM

Power

80.5KW

Fuel Consumption

208g/kw.h

Lube Oil Capacity

8L

Cylinder/Stroke

105/127mm

Compression Ratio

17.25:1

Gas Displacement

4.4L

Cooling Liquid Capacity

8L

Configuration

4 in line ,four-stroke, Turbocharged, Charge Air Cooled

Cooling Mode

Closed circuit water cooling

Speed Control System

Electronic Govenor

Starting Mode

24V DC

Filter System

Dry air filter, fuel filter, oil filter

Alternator

Manufacturer

Wuxi Stanford Intelligent Technology Co.Ltd

Model

S6L1D-G41

Voltage Control Mode

AVR (automatic voltage regulation)

Voltage Regulation

±1%

Rated Voltage/Frequency/Power Factors

400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire

Steady State Frequency

Better than 5%

No-load Voltage Adjust Range

≥95% - 105%

Insulation Class/Protection Class

H / IP22

Excitation Type

Brushless

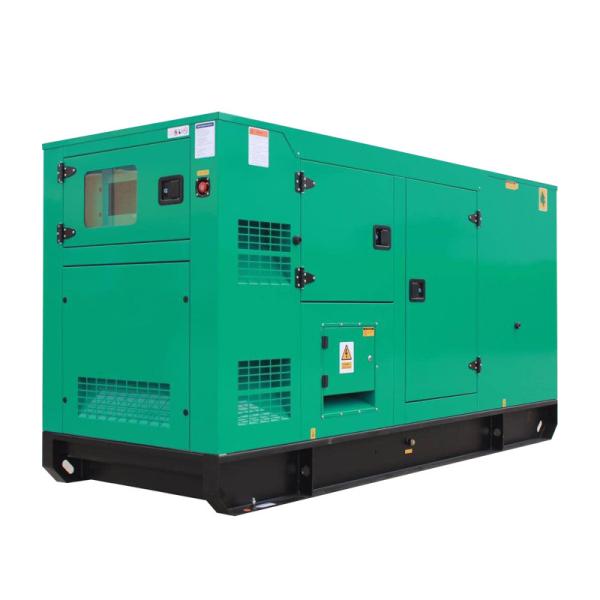

Pictures for reference only as below:


1104A-44TG2 Perkins Engine 64KW 80KVA Diesel Generator power solution Silent/open type1104A-44TG2 Perkins Engine 64KW 80KVA Diesel Generator power solution Silent/open type1104A-44TG2 Perkins Engine 64KW 80KVA Diesel Generator power solution Silent/open type


1104A-44TG2 Perkins Engine 64KW 80KVA Diesel Generator power solution Silent/open type


Applications:



1. Industrial area: real estate, hospital, hotel, bank,construction, factory, oil field, airport, mining, railway

2. Home use: personal use for house, camping, party, etc

3. Telecom, Mobile tower, etc

4. Island, Desert or any place without electricity

5. As for emergency equipment special for natural disasters, such as typhoon, earthquake, heavy snow,

6. Standby power or main power, indoor or outdoor using.



About Mingbang company:



Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai


Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,Volvo and Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,

and so on. Key diesel generator stock ranges from 3KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will support you the most reliable and most cost-efficient generators and accessories. Weclome to visit our factory!


1104A-44TG2 Perkins Engine 64KW 80KVA Diesel Generator power solution Silent/open type1104A-44TG2 Perkins Engine 64KW 80KVA Diesel Generator power solution Silent/open type



RFQ


1. What is your warranty period?


Our warranty period is 1 year or 1000 running hous, whichever comes first(Excep the damageable spare parts of genset caused by incorrect man-made operation).


2. What is your payment terms?


T/T 30% advance payment, the balance 70% shall be paid before shipment.
L/C Irrevocable L/C at sight.


3. What is your delivery time?


As usually the delivery time is 7 to 15 working days.If you have special requirements, the delivery will be longer. Kindly contact us to confirm it.


4. Can the generators be customized?


Yes. Our generators can be customized depending on customer's detailed requirements. We can supply generators for rental business, home use, inudstrial projects, army projects, power station, etc. The generators we supply is suitable for indoor and outdoor use, lower and high temperature environment.


5. Can you use our logo?


Yes. For mass orders, we can use customer's logo instead of ours.
