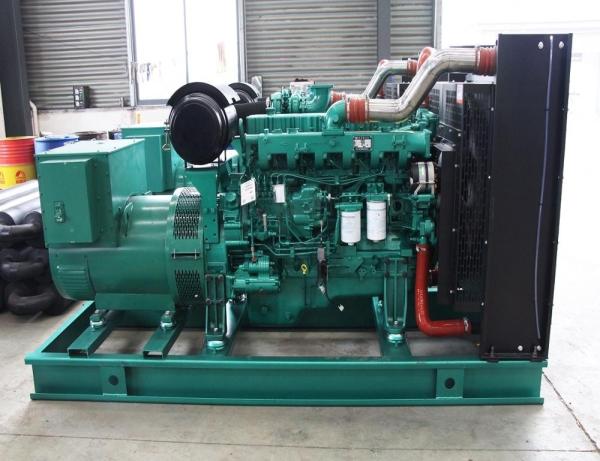

100kva/80kw SDEC SC4H140D2 Engine Open/Silent type Diesel Generator Set
100kva/80kw SDEC SC4H140D2 Engine Open/Silent type Diesel Generator Set
Specifications
Brand Name :
SDEC engine
Model Number :
SC4H140D2
Certification :
ISO 9001:14000,CE,EACC
Place of Origin :
China
MOQ :
1PC
Price :
Price:Negotiable
Payment Terms :
Western Union,T/T,D/P,L/C
Supply Ability :
200pcs/month
Delivery Time :
7-30days
Packaging Details :
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Brand Name: :
SDEC open diesel generator 100kva/80kw
Rated Voltage: :
230V/400V
Engine Model: :
SC4H140D2
Rated Current: :
144A A
Frequency: :
50Hz/60Hz
Alternator: :
MBC27A
Control Panel: :
Deepsea / Harsen / Smartgen
Certificate: :
ISO 9001:14000,CE
ATS: :
Optional
Delivery: :
7-30 Days
Warranty time: :
1 year
Genset Dimension: :
3000×1240×1790mm
Genset Weight: :
1420KG
Speed: :
1500rpm/1800rpm
Model Number: :
MB-80
Description

SDEC SC4H140D2​ diesel generator sets features:


(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.


Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset Parameters

Genset

Model

MB-80

Output Power

100kva/80kw

Power Factor

COSΦ=0.8( lagging)

Maximum Output Current

144A

Weight

1420KG

Dimensions

3000×1240×1790mm

Voltage

400/230

Frequency

50Hz

Diesel Engine

Manufacturer

SDEC Diesel Engine

Model

SC4H140D2

Rotate Speed

1500RPM

Power

95/105KW

Fuel Consumption

≤204g/kw.h

Lube Oil Capacity

13 L

Cylinder/Stroke

105×124 mm

Compression Ratio

16:1

Gas Displacement

4.3 L

Configuration

4-cylinder in-line, four-stroke, water-to-air cooling

Cooling Mode

Liquid Cooled

Speed Control System

Electronic

Starting Mode

24V DC

Filter System

Dry air filter, fuel filter, oil filter

Alternator

Manufacturer

Changsha Mingbang Intelligent Technology Co.Ltd

Model

MBC27A

Voltage Control Mode

AVR (automatic voltage regulation)

Voltage Regulation

±1%

Rated Voltage/Frequency/Power Factors

400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire

Steady State Frequency

Better than 5%

No-load Voltage Adjust Range

≥95% - 105%

Insulation Class/Protection Class

H / IP22

Excitation Type

Brushless


Rated power Engine Alternator Control panel
24kw~1500kw Cummins Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators		 Deepsea
ComAp
Harsen
Smartgen
36kw~18+00kw Perkins
68kw~560kw Volvo
20kw~200kw Deutz
40kw-2200kw Yuchai
50kw-2200kw Weichai
540kw-1900kw Mitsubishi
50kw-800kw SDEC
650kw~2200kw Chinese engine


100kva/80kw SDEC SC4H140D2 Engine Open/Silent type Diesel Generator Set100kva/80kw SDEC SC4H140D2 Engine Open/Silent type Diesel Generator Set100kva/80kw SDEC SC4H140D2 Engine Open/Silent type Diesel Generator Set


Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.


Our factory has CCEC, DCEC, VOLVO, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.


100kva/80kw SDEC SC4H140D2 Engine Open/Silent type Diesel Generator Set

100kva/80kw SDEC SC4H140D2 Engine Open/Silent type Diesel Generator Set

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
