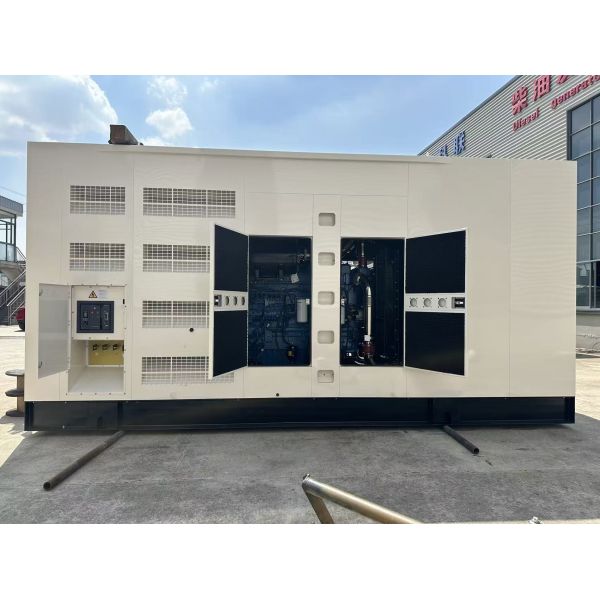

Premium 1250kVA Silent Gensets for Generator Distributors Worldwide
Premium 1250kVA Silent Gensets for Generator Distributors Worldwide
Specifications
Brand Name :
Yuchai engine
Model Number :
MB-1000
Certification :
ISO 9001:14000,CE,EACC
Place of Origin :
China
MOQ :
1PC
Price :
Price:Negotiable
Payment Terms :
Western Union,T/T,D/P,L/C
Supply Ability :
200pcs/month
Delivery Time :
7-30days
Packaging Details :
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Brand Name: :
Yuchai diesel generator
Rated Voltage: :
230V/400V
Engine Model: :
YC6TF1520-D31
Rated Current: :
1800A
Frequency: :
50Hz/60Hz
Alternator Brand: :
MBKL / Wuxi Standford / Stamford/ LEROY-SOMER
Control Panel: :
Deepsea / Harsen / Smartgen
Certificate: :
ISO 9001:14000,CE
ATS: :
Optional
Delivery: :
7-30 Days
Warranty time: :
1 year or 1000 runing hours(Whichever arrive first)
Speed: :
1500rpm/1800rpm
Description

Yuchai YC6TF1520-D31​ diesel generator sets features:


(1) . Full control panel with power indicator light and oil light.
(2). Emergency shutdown for low oil pressure and high water temperature.
(3). Large fuel tank ensure continuous running.
(4). Low noise & vibration.
(5). Compact structure.
(6). Reliable performance.
(7). Easy for installation and maintenance.


Painting materials
rust removing in pickling tank(10minutes)------unoil(30mins)-----rinsing(3mins)----wathsetting(10mins)----rinsing(5mins)-----parkerising(20mins)----rinsing----blow dry-----stoving----pylons----spray paint(adopt static flame paint)-----Oven(170degree/20mins)-----draw a charge---inserting coil.

Genset

Model

MB-1000

Output Power

1000KW/1250KVA

Power Factor

COSΦ=0.8( lagging)

Maximum Output Current

1800A

Silent type Weight

9150 kg

Silent type Dimensions

5800*2400*2900

Voltage

400/230V

Frequency

50Hz

Diesel Engine

Manufacturer

Yuchai Diesel Engine

Model

YC6TF1520-D31

Rotate Speed

1500RPM

Power

1118 kW

Fuel Consumption

≤195 g/kw.h

Lubricating oil capacity

95L

Cylinder/Stroke

152mm/200mm

Compression Ratio

13.5:1

Displacement

31.75L

Configuration

6-cylinder In-line, four-stroke, water-to-air cooling

Cooling Mode

Liquid Cooled

Speed Control System

Electronic

Starting Mode

24V DC

Filter System

Dry air filter, fuel filter, oil filter

Alternator

Manufacturer

Changsha Mingbang Intelligent Technology Co.Ltd

Model

MBV6F

Voltage Control Mode

AVR (automatic voltage regulation)

Voltage Regulation

±1%

Rated Voltage/Frequency/Power Factors

400V/230V, 50Hz, COSΦ=0.8 lagging, three-phase four-wire

Steady State Frequency

Better than 5%

No-load Voltage Adjust Range

≥95% - 105%

Insulation Class/Protection Class

H / IP22

Excitation Type

Brushless

Premium 1250kVA Silent Gensets for Generator Distributors WorldwidePremium 1250kVA Silent Gensets for Generator Distributors WorldwidePremium 1250kVA Silent Gensets for Generator Distributors Worldwide


Our factory

Mingbang Power Perkins Diesel Generating Set, power ranging from 45kVa up to 2250kVa. Perkins is the world's top engine brand, for more than 80 years, UK Perkins has been the world's leading supplier of diesel and gas engines in the 4 - 1800 kW market. Perkins key strength is its ability to tailor engines precisely to meet customers' requirements, which is why its engine solutions are trusted by more than 1,000 leading manufacturers in the industrial, construction, agricultural, materials handling and electrical power generation markets.


Our factory has CCEC, DCEC, PERKINS,MTU,Deutz, Daewoo, SDEC, Weichai,Jichai etc. World and Chinese famous engine for generators set. We have specialized in synchronous 100%copper wire alternator for more than 20 years. MB brand alternator has been expanded all over the world. The power range of our generator is from 6.5KW~2000KW.


Premium 1250kVA Silent Gensets for Generator Distributors Worldwide

New Powered By Yangdong Engine Prime Power 800kw Diesel Generator Set

Premium 1250kVA Silent Gensets for Generator Distributors Worldwide

More details for diesel generator sets ,please contact us any time

Your further inquiry will be welcome!!
