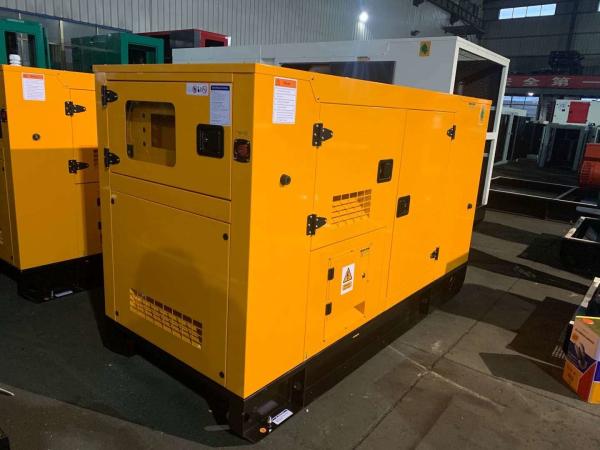

50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type
Specifications
Brand Name :
Cummins
Model Number :
NTA855-G2A
Certification :
ISO 9001:14000,CE,EACC
Place of Origin :
China
MOQ :
1PC
Price :
Price:Negotiable
Payment Terms :
Western Union,T/T,D/P,L/C
Supply Ability :
200pcs/month
Delivery Time :
7-30days
Packaging Details :
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Place of Origin: :
Jiangsu China
Brand Name: :
MBKL
Rated Voltage: :
230V/400V
Engine Model: :
Cummins NTA855-G2A
Rated Current: :
720A
Frequency: :
50Hz/60Hz
Alternator: :
MBC5B
Control Panel: :
Deepsea / Harsen / Smartgen
Certificate: :
ISO 9001:14000,CE
ATS: :
Optional
Delivery: :
7-30 Days
Warranty time: :
1 year
Genset Dimension: :
3500×1300×1800mm
Genset Weight: :
3500kgs
Speed: :
1500rpm/1800rpm
Model Number: :
MBC5B
Description

Power Generator Set 345kva 60HZ 345 Kva Diesel Generator Dynamo Generator Set Prime Power 275kw With Smartgen Controller

Dynamo Generator Genset Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-C300
Prime Power 275KW/343.75KVA
Standby Power 300KW/375KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 540A
Genset Weight 2800KG
Length x Width x Height (Engine) (mm) 3000×980×1670
Voltage 400/230V
Frequency 50HZ
Engine Specification
Manufacturer Chongqing Cummins Engine Co. Ltd
Model NTA855-G2A
Rated speed 1500rpm
Prime Power 312KW/390KVA
Standby Power 343KW/428.75KVA
Fuel Consumption <=205g/KW.H
Lube oil capacity 39L
Bore (mm) x Stroke (mm) 140*152
Compression ratio 14.0:1
Displacement (litre) 14L
Coolant capacity, L /
Configuration 6 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBC4E
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless

Rated power Engine Alternator Control panel
24kw~1500kw Cummins Stamford
Leroy somer
Marathon
Mecc alte
ABB
Chinese alternators		 Deepsea
ComAp
Harsen
Smartgen
36kw~18+00kw Perkins
68kw~560kw Volvo
20kw~200kw Deutz
40kw-2200kw Yuchai
50kw-2200kw Weichai
540kw-1900kw Mitsubishi
50kw-800kw SDEC
650kw~2200kw Chinese engine

50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type

About MingBang Intelligent Technology

50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers
50/60HZ Soundproof Cummins Diesel Generator Set for Charging in Factory Silent type

Our with Cummins engine NAT855-G2A Cummins 275kw diesel generator

service quality assurance:


1)Before-sale Service:

we provide detailed product technical parameters for equipment choosing and system designing

2)Service quality assurance:

our sale staffs are all experience and professional,who can provide the most proper system design and

optimized equipment for the customers.


3)After sale maintenance service:

We create files for end user and provide them follow-up service,regular return visit and permanent

maintenance.


4)Spare parts supply:

We provide all kinds of spare parts and technical support.


5)Main overhaul or maintenance service:

We provide perennial major overhaul and maintenance service.

More details for diesel generator sets ,please contact us any time
