Specifications
Brand Name :
Cummins
Model Number :
4B3.9-G1
Certification :
ISO 9001:14000,CE,EACC
Place of Origin :
China
MOQ :
1PC
Price :
Price:Negotiable
Payment Terms :
Western Union,T/T,D/P,L/C
Supply Ability :
200pcs/month
Delivery Time :
7-30days

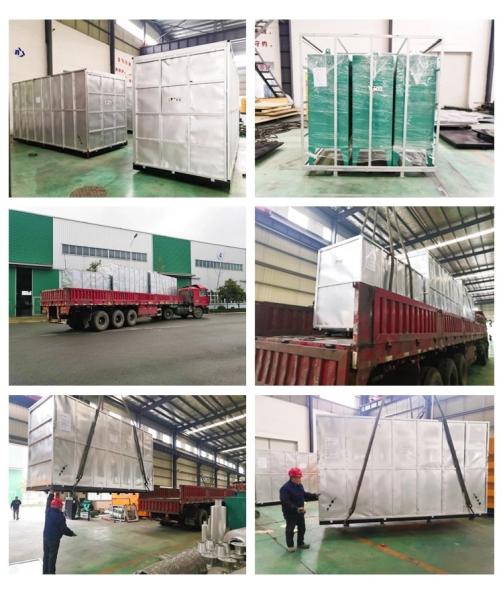

Packaging Details :
Plastic wrapped on wooden bearers as consumer requirements. LCL, 20FT and 40FT are available.
Place of Origin: :
Jiangsu China
Brand Name: :
MBKL
Rated Voltage: :
230V/400V
Engine Model: :
Cummins 4B3.9-G1
Rated Current: :
43.2A
Frequency: :
50Hz/60Hz
Alternator: :
MBC21A
Control Panel: :
Deepsea / Harsen / Smartgen
Certificate: :
ISO 9001:14000,CE
ATS: :
Optional
Delivery: :
7-30 Days
Warranty time: :
1 year
Genset Dimension: :
1800x760x1400mm
Genset Weight: :
890kgs
Speed: :
1500rpm/1800rpm
Model Number: :
MB-C24
Description

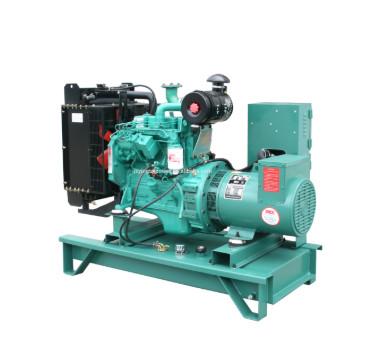

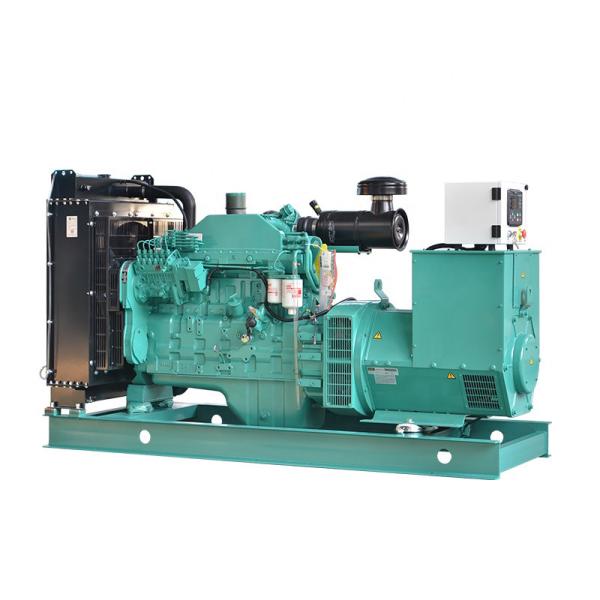

Cummins 4B3.9-G1 24kw 30kva 50hz high performance diesel generator set AC Three Phase Over Load Protection

Diesel generator sets Cummins 4B3.9-G1Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MB-C24
Prime Power 20KW/25KVA
Standby Power 22KW/27.5KVA
Power Factor COSΦ=0.8(lagging)
Max. Output current 43.2A
Genset Weight 890KG(Net)
Length x Width x Height (Engine) (mm) 1800x760x1400mm
Voltage 400/230V
Frequency 50HZ
Engine Specification
Manufacturer Dongfeng Cummins Engine Co. Ltd
Model 4B3.9-G1
Rated speed 1500rpm
Prime Power 24KW/30KVA
Standby Power 27KW/33.745KVA
Fuel Consumption <=210g/KW.H
Lube oil capacity 9 L
Bore (mm) x Stroke (mm) 102*120
Compression ratio 16.5:1
Displacement (litre) 3.92L
Coolant capacity, L /
Configuration 4 in line ,four-stroke, Turbocharged, Charge Air Cooled
Cooling Liquid Cooled
Governor type Electronic
Starting voltage 24 Volts DC
Filtration system Air Filter/Fuel Filter/Oil Filter
Alternator Specification
Manufacturer Changsha Mingbang Intelligent Technology Co.Ltd
Model MBC21A
Voltage Regulator AVR
Voltage adjust range ±1%
Rated Voltage/Frequency/Factor 400/230V, 50HZ, COSΦ 0.8(lagging) ,Three-phase Four-wire
Steady-state Frequency 5%
No-load Voltage Adjust Range >=95%-105%
Insulation Class H
IP Protection 22
Excitation Type Blushless

Cummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for Charging

Cummins 4B3.9-G1 24kw 30kva 50hz Workshop

Cummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for ChargingCummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for ChargingCummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for ChargingCummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for Charging

About MingBang Intelligent Technology

Cummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for Charging

Mingbang Intelligent Technology Co.,LTD was established in 2005,occupies an area of 5042 square meters,located in Yangzhou city,Jiangsu Province,which is the central part of manufacturing industry zone in Southeast China near Shanghai

Mingbang works closely with all large power manufactures such as Cummins, Perkins, Deutz,
Volvoand Chinese local brands SDEC,Yuchai,Jichai diesel generator sets,engines with
Stamford,Marathom,Leroy-Somer,and MBKL manufactured alternators ,and so on. Key diesel
generator stock ranges from 10KVA to 3000 KVA, classifying silent generator, open generator ,
container generator, mobile genset, and so on.


Whether you require support for an office, residential development ,industrial development or
shopping centre, hospital,railways,prison, hotal, airport ,bank data centre, Mingbang will
support you the most reliable and most cost-efficient generators and accessories.
Weclome to visit our factory!

Our customers
Cummins 4B3.9-G1 50hz 24kw 30 Kva Diesel Generator Set for Charging

FAQ:

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: What is your MOQ of this item?
A: 1 set.
Q3: Is it all right to make customer's own brand name?
A: We can be your OEM manufacture with your authorization of brand.
Q4: What is your company's available production capacity?
A: 50 Sets per Month.
Q5: What is the lead time?
A: 2-7 working days after received the 30%T/T deposit.
Q6: What are your payment terms?
A: 30% TT as deposit,70% TT before Shipment.
Q7: Does your generator have global warranty?
A:Yes, most of our products such as Cummins,Perkins and so on enjoy the global warranty service.

And the alternator we use like Leroysomer, Stamford, marathon also enjoy the global warranty service.
