Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine
Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine
Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine
Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine
Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine
Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine
Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine
Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine
Specifications
Model Number :
6BG1-TABFD-12-C2
MOQ :
1unit
Payment Terms :
Western Union,T/T
Supply Ability :
Spot goods
Delivery Time :
30 work day
Packaging Details :
wooden box packaging
Price :
$3824-$10294
State :
Brand New
Type :
Inline six-cylinder, 4-stroke, water-cooled diesel engine
Displacement :
Approximately 6.5 L
Bore x Stroke :
105 × 125 mm
Speed :
2200 rpm
Power :
97.7 kW
Power Range :
75 kW - 130 kW
Fuel system :
Direct injection
Intake method :
Turbocharged
运输方式 :
空运/海运/UPS/DHL/EMS/联邦快递
Description

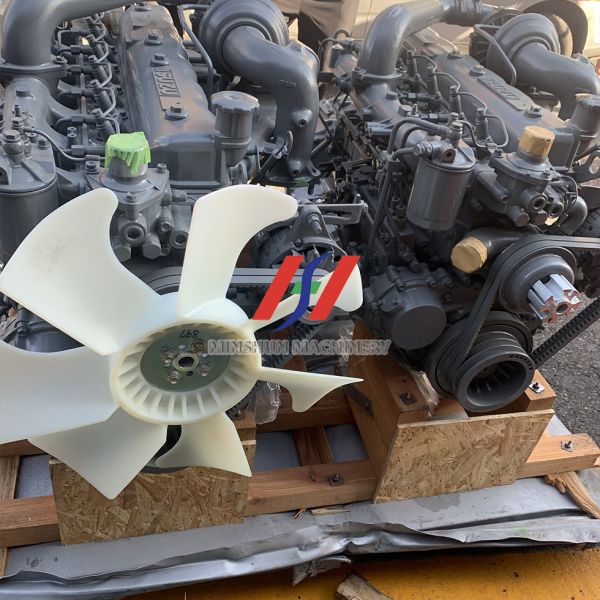

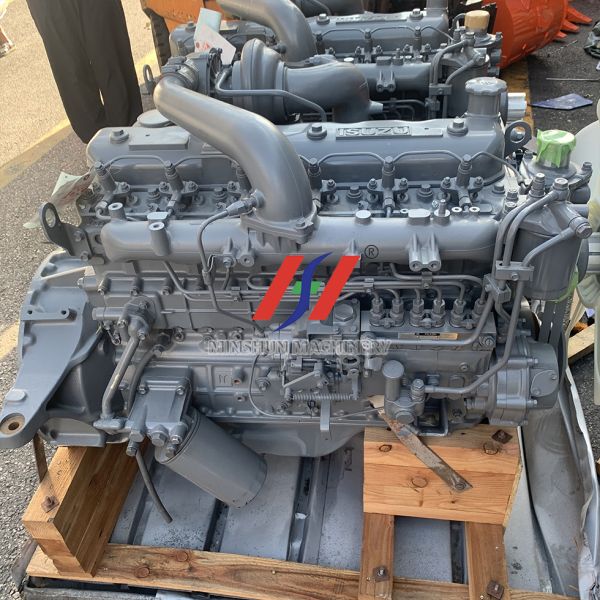

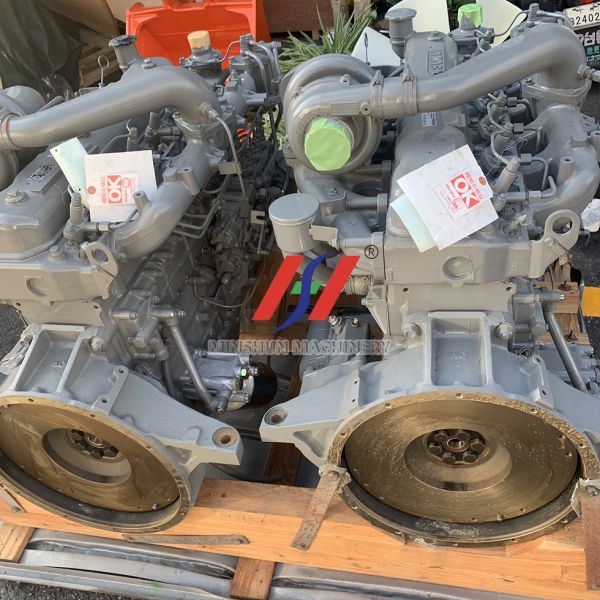

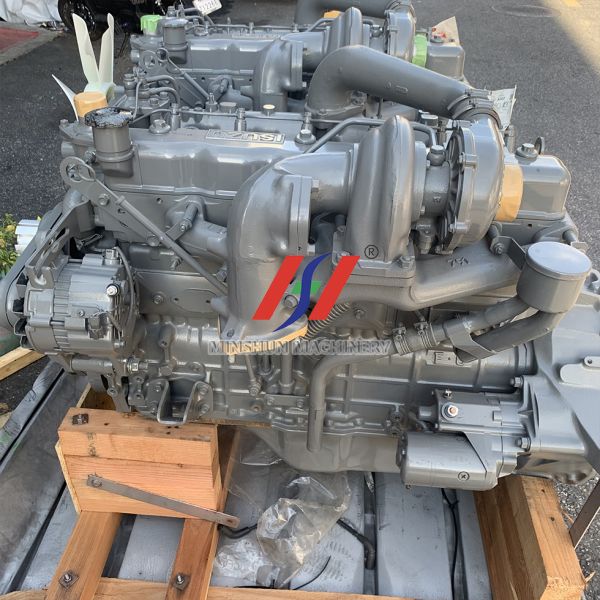

Isuzu 6BG1-TABFD-12-C2 6-cylinder water-cooled diesel engine
State Brand New
Type Inline six-cylinder, 4-stroke, water-cooled diesel engine
Displacement Approximately 6.5 L
Power 97.7 kW
Speed 2200 rpm
Bore × Stroke 105 × 125 mm
Fuel System Direct injection
Intake Method Turbocharged
Applications Excavators, Loaders, Construction Machinery, Generator Sets, Heavy-Duty Transport Vehicles
The 6BG1-TABFD-12-C2 is a 6-cylinder, water-cooled diesel engine based on the Isuzu 6BG1 series, suitable for various applications including construction machinery, generator sets, heavy-duty transportation, and industrial power equipment. The engine utilizes a proven direct injection fuel system and, in both naturally aspirated and optional turbocharged/supercharged versions, balances power, reliability, and fuel efficiency. With its large 6.5 L displacement and 6-cylinder design, it provides strong and sustained power reserves, making it ideal for heavy-duty, high-load, and continuous operation environments.
Features and Advantages

• High Displacement and High Torque Output: 6.5L capacity and 6-cylinder structure provide ample power reserve for heavy-duty equipment.

• High Fuel Injection Efficiency: Direct injection system ensures complete fuel combustion, improving fuel efficiency and response performance.

• Strong Adaptability: Can be configured as naturally aspirated, turbocharged, or turbocharged and intercooled versions, flexibly matching different equipment needs.

• Mature and Reliable Structure: The 6BG1 series has been market-tested, exhibiting excellent stability and durability, with a mature maintenance system.

• Convenient Maintenance and Servicing: Designed with industrial equipment operating environments in mind, with reasonable maintenance cycles and good parts commonality.

Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel EngineIsuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel EngineIsuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel EngineIsuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine

Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel EngineIsuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine Isuzu 6BG1-TABFD-12-C2 6-cylinder Water-cooled Diesel Engine

Frequently Asked Questions
Q1: What is your main products?
A1: We are specialized in the excavator engine spare parts, for example Main cylinder block, cylinder head, crankshaft, Engine assembly, piston, cylinder liner, piston ring, camshaft, connecting rod, oil pump, water pump, valve series products, movement, etc. almost all parts of the entire engine.
Q2: If I only know the excavator model, but can not offer parts No., what should I do?
A2: If possible, you can send us pictures of old products, name plate or the size for reference.
Q3: Can you accept sample order?
A3: Yes sure. We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and the courier cost.
Q4: Do you test all your goods before delivery?
A4: Yes, we have 100% test before delivery.
Q5: How can I do if there is something wrong with the items?
A5: Our products have been professionally tested and the quality is very stable. If you really found something wrong, please contacts. We have a professional after-sales team to help you solve the problem.
