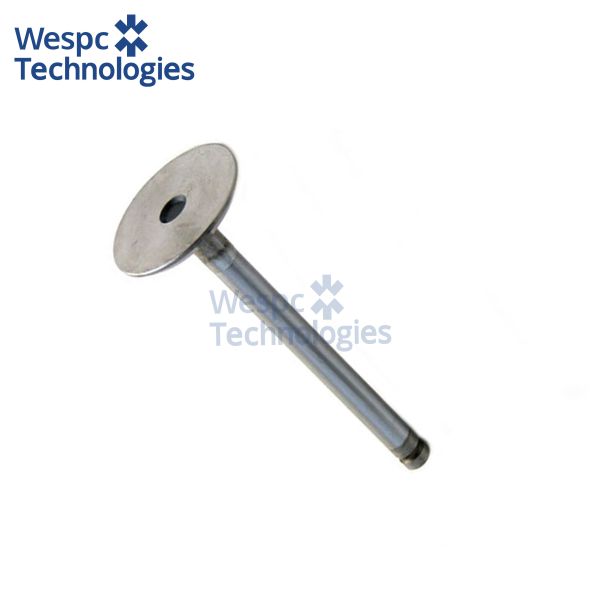

WESPC Intake Valve 3142L051/905-026 for Perkins 1004 1006 6.354 diesel engines
WESPC Intake Valve 3142L051/905-026 for Perkins 1004 1006 6.354 diesel engines
WESPC Intake Valve 3142L051/905-026 for Perkins 1004 1006 6.354 diesel engines
WESPC Intake Valve 3142L051/905-026 for Perkins 1004 1006 6.354 diesel engines
WESPC Intake Valve 3142L051/905-026 for Perkins 1004 1006 6.354 diesel engines
WESPC Intake Valve 3142L051/905-026 for Perkins 1004 1006 6.354 diesel engines
WESPC Intake Valve 3142L051/905-026 for Perkins 1004 1006 6.354 diesel engines
WESPC Intake Valve 3142L051/905-026 for Perkins 1004 1006 6.354 diesel engines
Specifications
Brand Name :
WESPC
Model Number :
3142L051/905-026
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$5-$8(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
Intake Valve 3142L051/905-026
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description
WESPC Intake Valve 3142L051/905-026 for Perkins 1004 1006 6.354 Diesel Engines
High-quality intake valve designed for reliable performance in Perkins diesel engines across agricultural, construction, and industrial applications.
Brand Name WESPC
Place of Origin China
Part Number 3142L051/905-026
After-sales Service Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes
Application
The 3142L051/905-026 Intake Valve is precision-engineered for 4.4-liter, 6.0-liter, and 6.6-liter inline diesel engine platforms, specifically compatible with Perkins 1004, 1006, and 6.354 series power units. This valve is extensively utilized across heavy-duty agricultural machinery, construction equipment, material handling systems, and power generation units.
The valve regulates the intake of fresh air or fuel-air mixture into the combustion chamber, ensuring optimal engine breathing efficiency and volumetric efficiency. It is compatible with naturally aspirated and turbocharged diesel engines, supporting reliable operation in high-demand farming, earthmoving, and industrial power applications. The valve maintains critical sealing integrity during intake cycles, contributing to improved engine efficiency, reduced emissions, and optimal power output.
Technical Specifications
  • Valve Type: Intake/Inlet Valve
  • Part Number Cross-Reference: 3142L051 (primary), 905-026 (alternate reference)
  • Compatible Engines: 4.4-liter, 6.0-liter, and 6.6-liter displacement diesel engines (1004-4, 1004-4T, 1004-40, 1004-40S, 1004-40T, 1004-42, 1004-4T, 1006-6, 1006-6T, 6.354.4, A6.354.4, T6.354.4, T6.60)
  • Valve Head Diameter: 45 mm (1.77 inches) / 45.1 mm (1.775 inches)
  • Valve Stem Diameter: 9.5 mm (0.374 inches)
  • Overall Length: 122.8-123.3 mm (4.83-4.855 inches)
  • Face Angle: 45 degrees
  • Material Grade: 21-4N austenitic heat-resistant stainless steel with chrome-manganese-nickel steel composite
  • Surface Treatment: Chrome-plated valve stem with advanced gas nitriding available for enhanced wear resistance
  • Weight: 0.11-0.14 kg (0.24-0.31 lbs)
  • Operating Temperature Range: -40°C to +800°C (intermittent peak during intake cycles)
  • Pressure Rating: Designed to withstand intake manifold pressures and pressure differentials typical of modern turbocharged diesel engines
  • Valve Seat Compatibility: Precision-matched to 45-degree valve seat inserts
  • Stem Hardness: HRC 30-35 (core), hardened surface layer for wear resistance
  • Head Hardness: Optimized for high-temperature oxidation resistance
  • Quantity per Engine: 4 units (4-cylinder engines) or 6 units (6-cylinder engines)
  • Valve Guide Compatibility: Precision-matched to 3343F041 intake valve guides
Material & Performance Features
The intake valve is manufactured from high-grade 21-4N austenitic heat-resistant stainless steel (containing 21% chromium, 4% nickel, and nitrogen additions) combined with chrome-manganese-nickel steel, providing exceptional heat resistance, wear resistance, and structural stability under cyclic high-temperature operating conditions.
The material composition ensures superior oxidation resistance and maintains mechanical properties at elevated temperatures encountered in modern turbocharged diesel combustion chambers. The valve features a chrome-plated valve stem with precision surface finish, significantly improving wear resistance, scuffing resistance, and fatigue life.
This surface treatment ensures minimal stem-to-guide wear and maintains precise valve seating geometry over extended service intervals. The solid metal rod construction (distinct from hollow sodium-filled exhaust valve designs) provides robust structural integrity for intake cycle operation.
Interchange Part Numbers
3142L051; 905-026; 3142L071; 3142L072; 6I-0282; 748413M1 (Massey Ferguson); 70910060 (Massey Ferguson); VPA1330 (Vapormatic); 02/200050 (JCB)
