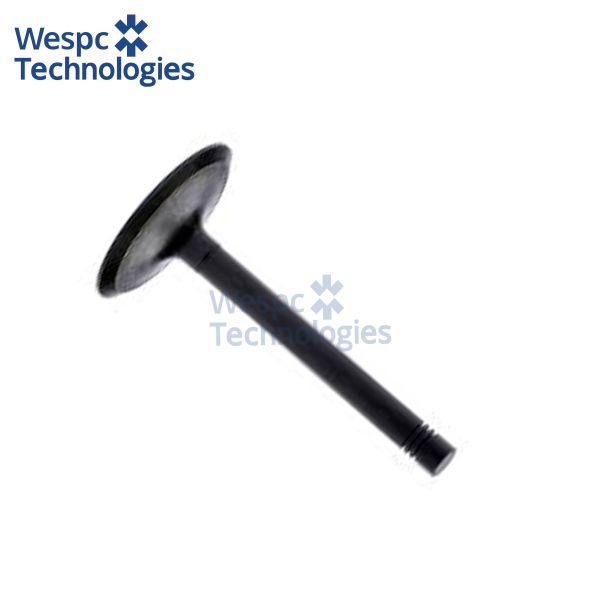

WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
Specifications
Brand Name :
WESPC
Model Number :
3142H091
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$5-$8(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
Intake Valve 3142H091
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description
WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
WESPC Intake Valve 3142H091 for Perkins 1104D and 1106D E C series
Brand Name WESPC
Place of Origin China
Part Number 3142H091
After-sales Service Provided Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes
Application
The 3142H091 Intake Valve is precision-engineered for 4.4-liter and 6.6-liter inline diesel engine platforms, specifically compatible with 1104D and 1106D/E/C series power units. This valve is extensively utilized across heavy-duty construction equipment, including 20-ton class hydraulic excavators (320D, 323D, 326D, 329D, 336 models), agricultural tractors, telescopic handlers, and material handling equipment.
The valve regulates airflow into the combustion chamber, ensuring optimal engine breathing efficiency across agricultural tractors (Massey Ferguson 6400 and 7000 series), telescopic lifts (Doosan DT series, Manitou MLT series), and road construction machinery (Voegele Super series). It is compatible with turbocharged and aftercooled diesel engines featuring electronic fuel injection systems, supporting reliable operation in high-demand earthmoving, farming, and industrial power generation applications.
Technical Specifications
Valve Type Intake/Inlet Valve
Compatible Engines 4.4L and 6.6L displacement diesel engines (1104D-E44T, 1104D-E44TA, 1106D-E66TA, 1106C-E66TA, 1106C-E66TAG4)
Valve Head Diameter 35 mm (1.38 inches)
Valve Stem Diameter 6 mm (0.236 inches)
Overall Length 108.15-108.2 mm (4.26 inches)
Face Angle 30 degrees
Material Grade 4Cr9Si2 heat-resistant alloy steel
Surface Treatment Gas nitriding for enhanced surface hardness
Weight 0.054-0.06 kg (0.12-0.13 lbs)
Operating Temperature Range -40°C to +800°C (intermittent peak)
Pressure Rating Designed to withstand high combustion chamber pressures typical of modern turbocharged diesel engines
Valve Seat Compatibility Precision-matched to 30-degree valve seat inserts
Stem Hardness HRC 30-35 (core), HRC 60+ (nitrided surface)
Head Hardness HRC 25-30 with nitrided surface layer
Quantity per Engine 4 units (4-cylinder engines) or 6 units (6-cylinder engines)
Material & Performance Features
The intake valve is manufactured from high-grade 4Cr9Si2 martensitic heat-resistant alloy steel, featuring exceptional creep resistance and thermal fatigue strength under cyclic high-temperature operating conditions. The material composition includes chromium and silicon additives providing superior oxidation resistance and structural stability at elevated temperatures encountered in modern turbocharged diesel combustion chambers.
The valve undergoes advanced gas nitriding surface treatment, creating a hardened diffusion layer that significantly improves wear resistance, scuffing resistance, and fatigue life. This surface hardness treatment ensures minimal stem-to-guide wear and maintains precise valve sealing geometry over extended service intervals. The 30-degree face angle is precision-ground to ensure optimal seating contact pressure and combustion sealing capability.
Interchange Part Numbers
3142H091 3142H081 309-6678 3096678 T423393 4226566M1 (Massey Ferguson) 4226307M1 (Massey Ferguson)
