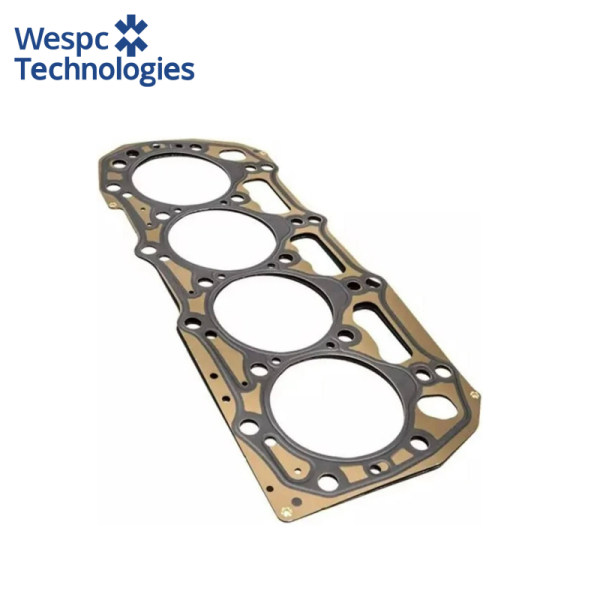

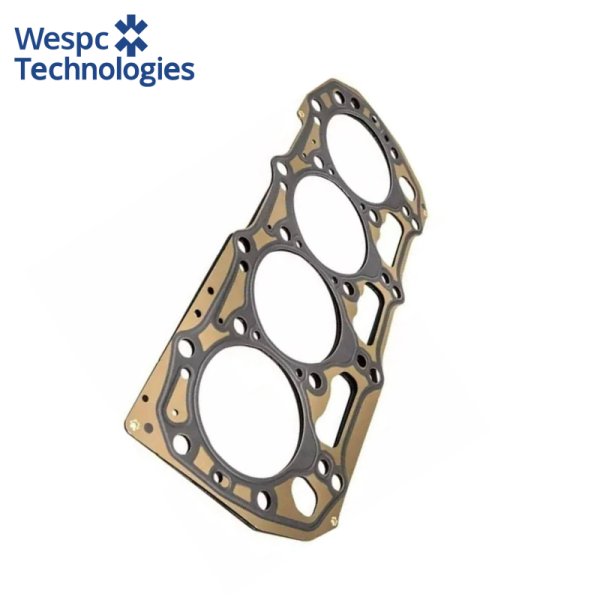

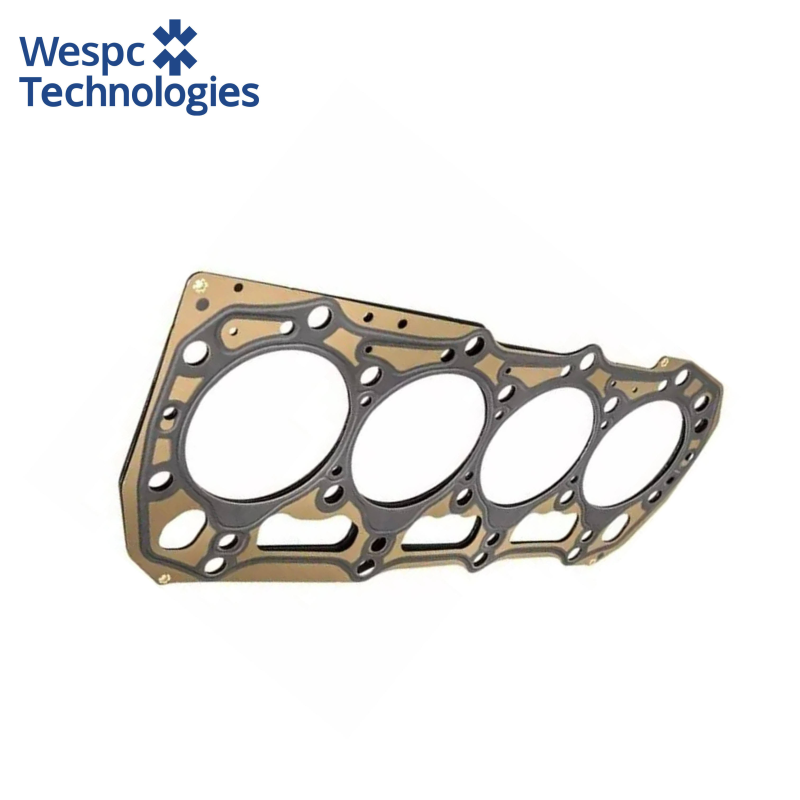

WESPC 111147751 Cylinder Head Gasket Kit Full Set for Perkins 1103 1104 Diesel Engine
WESPC 111147751 Cylinder Head Gasket Kit Full Set for Perkins 1103 1104 Diesel Engine
WESPC 111147751 Cylinder Head Gasket Kit Full Set for Perkins 1103 1104 Diesel Engine
WESPC 111147751 Cylinder Head Gasket Kit Full Set for Perkins 1103 1104 Diesel Engine
WESPC 111147751 Cylinder Head Gasket Kit Full Set for Perkins 1103 1104 Diesel Engine
WESPC 111147751 Cylinder Head Gasket Kit Full Set for Perkins 1103 1104 Diesel Engine
WESPC 111147751 Cylinder Head Gasket Kit Full Set for Perkins 1103 1104 Diesel Engine
WESPC 111147751 Cylinder Head Gasket Kit Full Set for Perkins 1103 1104 Diesel Engine
Specifications
Brand Name :
WESPC
Model Number :
111147751
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
US $ 8-9 (1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
in stock
Delivery Time :
5-10 days
Packaging Details :
Carton
Compatibility :
Perkins Engines
Size :
Standard
Durability :
High
Application :
Truck / Marine / Machine
Model :
Gasket
Water Resistance :
High
Description
WESPC 111147751 Cylinder Head Gasket Kit Full Set
Complete cylinder head gasket kit designed for Perkins 1103, 1104 and 404D-22 (404D-22T/404D-22TA) four-cylinder diesel engines with 2.2 L displacement. Provides reliable sealing performance for over 6,000 hours of service.
Application & Compatibility
Engine Compatibility
  • Perkins 1103 diesel engines
  • Perkins 1104 diesel engines
  • Perkins 404D-22, 404D-22T, 404D-22TA four-cylinder diesel engines
Equipment Applications
  • Massey Ferguson 35-50 HP tractors
  • Compact backhoe loaders and mini excavators
  • Skid-steer loaders
  • FG Wilson 30-65 kVA generator sets
  • Various construction machinery power units
Ideal for engine cylinder head sealing system maintenance, coolant/oil leakage repair, and comprehensive cylinder head overhaul procedures.
Technical Specifications
Part Number 111147751
Type Cylinder Head Gasket Kit Full Set
Material Construction MLS (3-5 SUS 201/301 stainless steel layers) with 15-25 µm FKM coating
Dimensional Accuracy OEM standard (±0.02 mm on critical features)
Temperature Range -40°C to +180°C (continuous operation up to +250°C)
Pressure Rating 180-200 bar combustion pressure resistance
Compressed Thickness 1.10 mm
Bore Diameter 84 mm
Overall Dimensions Approx. 650 mm * 200 mm
Quality Certification ISO9001
Warranty 12-month quality assurance
Package Size 50*27*6 cm
Gross Weight 2.0 kg
Availability In Stock
Interchange Part Numbers
Part Number: 111147751
Replaces: Corresponding OEM cylinder head gasket kit for Perkins 1103/1104/404D-22 series diesel engines
Cross References: Perkins 111147761 (1.2mm variant), Perkins 111147771 (1.3mm variant), JCB 02/630675, AGCO/Massey Ferguson 111147751
Genuine WESPC brand aftermarket replacement part with ISO9001 certification, ideal for moderate-duty diesel engine cylinder head maintenance and repair.
