WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s
WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s
WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s
WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s
WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s
WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s
WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s
WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s
Specifications
Brand Name :
WESPC
Model Number :
2674A441
Certification :
CE,RoHS,ISO9001
Place of Origin :
Guangdong, China
MOQ :
1
Price :
U$199-189(1pcs)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In Stock
Delivery Time :
5-8 work days
Packaging Details :
Carton
Product Name :
Turbocharger
Material :
Steel
Condition :
100%new
Accuracy :
OEM High quality
Warranty :
1year
Description

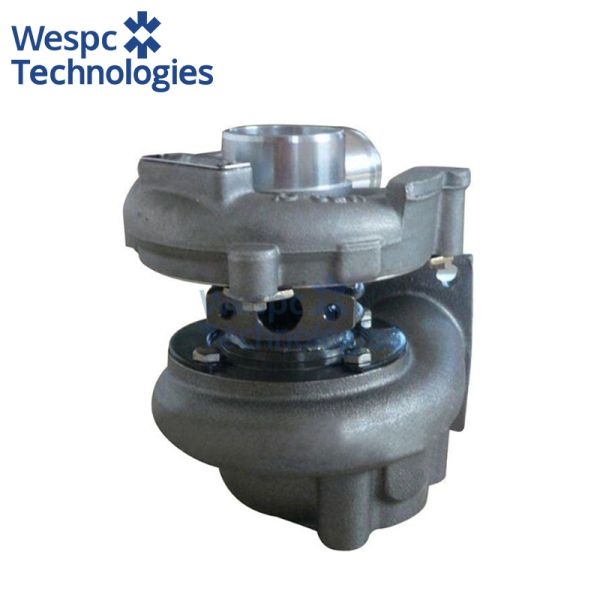

WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s

Brand Name WESPC
Product Name Turbocharger
Part Number 2674A423
Material Metal
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 year
Stock Yes

Application
The WESPC 2674A423 turbo is built for Perkins 1103A-33T, 1103A-33TG1, 1103C-33T 3.3 L three-cylinder diesels and the equivalent FG Wilson P13-5 → P22-5 generator ends.It is therefore fitted to Cat 301.6–302.4 mini-excavators, JCB 8025-8026, Liu-Gong 906/908 diggers, Manitou forklifts and 55–75 kVA industrial gen-sets—one turbo covers agricultural, construction and power-generation fleets worldwide.

Technical specifications
GT2049S frame; compressor wheel OD 49 mm, turbine wheel OD 46 mm; total length 290 mm, body diameter 200 mm, weight 7.3 kg; oil inlet M12 × 1.5, oil drain 2 × M8 on 38 mm PCD; water connections 2 × M10; maximum continuous boost 2.0 bar, peak turbo speed 180000 rpm, exhaust gas temperature limit 750 °C.

Material & performance features
Turbine housing cast from Ni-Resist ductile iron for 750 °C fatigue strength; compressor wheel milled from 7075-T6 aluminium,hard-anodised to 50 HV for salt-spray resistance; shaft is 42CrMo vacuum-nitrided to 900 HV, running on brass floating-bush bearings with 0.12 mm oil film for >8 000 h service before rebuild; water-cooled centre housing eliminates oil coking during hot-shutdown, keeping oil temperature <120 °C at 45 °C ambient; every unit is spin-balanced to <0.5 g-mm, giving <72 dB(A) noise and zero shaft vibration throughout the 1 400–2 200 rpm engine speed range.

Interchange part numbers
2674A422, 754111-0008, 754111-0009, 754111-8, 754111-9,10000-06394, KRP1695

WESPC 2674A423 Turbo for Perkins 1103A 33TG1 33TG2 3 3L Engine Gt2049s
