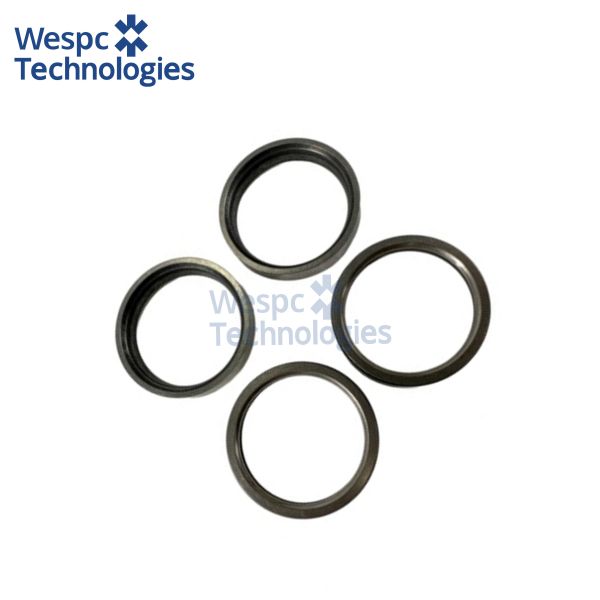

Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
Intake Valve Seat 3314A241 For Perkins Four Cylinder Diesel Engines
Specifications
Brand Name :
WESPC
Model Number :
3314A241
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$3-$6(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
Intake Valve Seat 3314A241
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description
WESPC Intake Valve Seat 3314A241 for Perkins Four Cylinder Diesel Engines
Brand Name WESPC
Place of Origin China
Part Number 3314A241
After-sales Service Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes
Application
The 3314A241 intake valve seat is engineered for Perkins 1104C-44, 1104C-44T, 1104D-44, 1104D-44T, and 1104C-E44T four-cylinder diesel engines (4.4L displacement). These engines are widely used in:
  • JCB backhoe loaders (3CX, 4CX series)
  • Telescopic handlers (Loadall series)
  • Wheeled excavators and rough-terrain forklifts
  • Agricultural tractors including Massey Ferguson 4200, 4300, 5300, 6100, and 8100 series
  • Generator sets producing 60-90 kVA continuous output
  • Cater C4.4 engine derivatives in compact construction equipment
The intake valve seat installs within the cylinder head combustion chamber, providing a precision sealing surface for intake valves operating in turbocharged diesel environments where air-fuel mixture temperatures can reach 200°C during the intake stroke.
Technical Specifications
  • Outer diameter: 42.5 mm
  • Inner diameter: 34.25 mm (intake valve head contact surface)
  • Height: 7.60 mm (overall thickness)
  • Taper angle: 45° sealing face (standard for diesel intake applications)
  • Valve compatibility: Intake valves 3142H071 (Perkins specification)
  • Engine family: 1104C, 1104D, 1104-E (C and D suffix denote emissions Tier level)
  • Quantity per engine: 4 pieces (one per cylinder)
  • Weight per unit: 0.03 kg (30 grams)
  • Packaging dimensions: 5.0 cm × 5.0 cm × 5.0 cm per unit
  • Thermal conductivity: Engineered to dissipate heat loads exceeding 500°C during sustained turbocharged operation
Material & Performance Features
Manufactured from high-alloy sintered steel with premium-grade iron-based powder metallurgy composition, the 3314A241 valve seat features advanced material engineering for superior durability in severe-service diesel applications. Key performance characteristics include:
  • Material matrix of tempered martensite with uniformly distributed fine carbides
  • Exceptional hardness of 45-48 HRC and compressive strength exceeding 1050 N/mm²
  • Copper infiltration process enhances thermal conductivity by 35% compared to conventional cast iron seats
  • Precision CNC machining achieves surface finish Ra < 0.8 μm on the sealing face
  • 45° sealing angle optimized for Perkins 1104 series intake valve geometry
  • Advanced heat treatment prevents dimensional changes under thermal cycling (ambient to 600°C)
  • Resists valve recession, valve seat pitting, and high-velocity erosion
  • Service life exceeding 6000 engine hours in continuous-duty applications
Interchange Part Numbers
Primary Reference
Perkins 3314A241 (supersedes 3314A221 effective 06/12/2007)
Perkins System Identifier
3314A241
Exhaust Valve Seat Counterpart
3314A231 (creates matched set per cylinder)
Equipment Manufacturer References
1104C-44, 1104C-44T, 1104D-44, 1104D-44T, 1104C-E44T
Service Part Grouping
Typically ordered with intake valves 3142H071, valve guides 3313A012, and valve stem seals 2418M519
