WESPC Intake Valve 120166350 For Perkins Four-cylinder Diesel Engines
WESPC Intake Valve 120166350 For Perkins Four-cylinder Diesel Engines
WESPC Intake Valve 120166350 For Perkins Four-cylinder Diesel Engines
WESPC Intake Valve 120166350 For Perkins Four-cylinder Diesel Engines
WESPC Intake Valve 120166350 For Perkins Four-cylinder Diesel Engines
WESPC Intake Valve 120166350 For Perkins Four-cylinder Diesel Engines
WESPC Intake Valve 120166350 For Perkins Four-cylinder Diesel Engines
WESPC Intake Valve 120166350 For Perkins Four-cylinder Diesel Engines
Specifications
Brand Name :
WESPC
Model Number :
120166350
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$5-$8(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
Intake Valve 120166350
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description

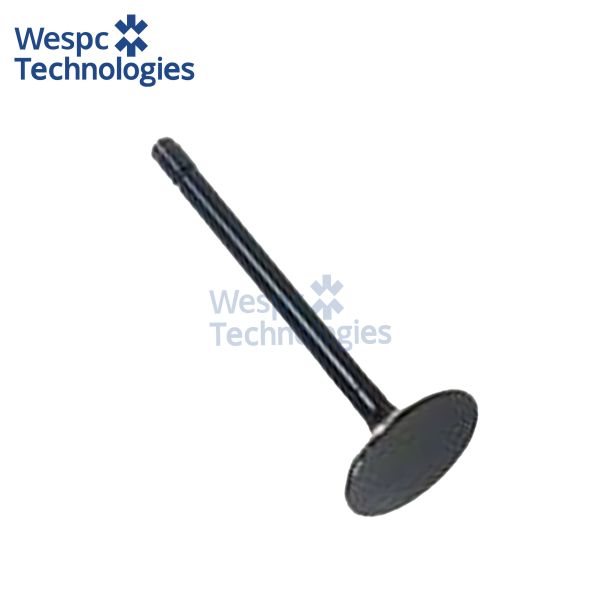

WESPC Intake Valve 120166350 for Perkins Four-Cylinder Diesel Engines
Product Overview
WESPC Intake Valve T406777 for Perkins 1204E E44TA 1206F E70TTA Diesel Engines
Brand Name WESPC
Place of Origin China
Part Number 120166350
After-sales Service Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes
Application
The 120166350 intake valve is engineered for Perkins 104-22, 403C-15, 403C-17, 403D-15, 403D-17, 404C-22, 404C-22T, 404D-22, 404D-22T, and 404D-22TA four-cylinder diesel engines. These 1.4L to 2.2L powerplants are extensively deployed in compact agricultural tractors (Massey Ferguson), skid steer loaders (Case-IH 410, 420, SR130, SR150, SR175, SV185), mini excavators, telehandlers, and generator sets producing 20-50 kVA continuous output. The valve provides critical sealing in the combustion chamber intake port, operating in direct-injection diesel environments where intake air temperatures reach 150°C and cylinder pressures exceed 180 bar. This component is also compatible with Shibaura N844L engine derivatives used in similar compact equipment applications.
Technical Specifications
  • Stem diameter: 7.0 mm
  • Overall length: 99.6 mm (from valve tip to head face)
  • Head diameter: 37.0 mm
  • Sealing angle: 45° (ground and lapped sealing face)
  • Engine displacement coverage: 1.4 L to 2.2 L (104, 403, 404 series)
  • Quantity per engine: 4 pieces (one per cylinder)
  • Weight per unit: 0.06 kg
  • Operating temperature rating: -40°C to +650°C continuous service
  • Maximum valve lift: 12.5 mm (engine-specific camshaft profile dependent)
  • Stem-to-guide clearance: 0.03-0.06 mm (standard specification)
Material & Performance Features
Manufactured from high-grade alloy valve steel with precision machining and advanced surface treatment processes, the 120166350 intake valve delivers exceptional strength and wear resistance in severe-service diesel environments. The precision-ground stem surface (diameter tolerance ±0.01 mm) ensures consistent guide bushing lubrication and minimizes carbon buildup that can cause valve sticking. The valve head is engineered to withstand extreme thermal cycling and oxidation at operating temperatures up to 650°C typical of direct-injection diesel combustion with turbocharging. Advanced surface hardening treatment on the stem creates a wear-resistant layer preventing stem scuffing and extending guide bushing service life beyond 4000 operating hours.
Interchange Part Numbers
  • Primary reference: Perkins 120166350
  • Cross-reference variants: 120166380, 120166390
  • Case-IH equipment cross-reference: 110136400C1
  • Compatible valve spring: 198216700 (ensures proper seat pressure of 280-320 N at installed height)
  • Valve guide specification: 3313A012 (intake valve guide, press-fit installation)
  • Valve stem seal: 120406070 (intake valve, prevents oil intrusion)
