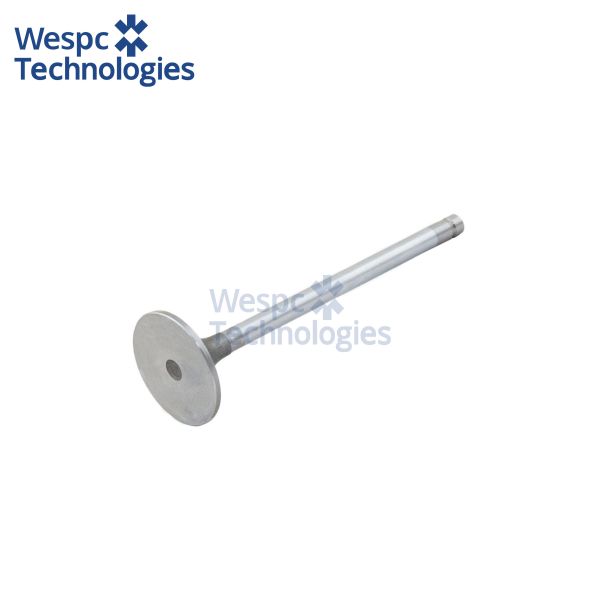

WESPC Inlet Valve 1826471C2 1842913C1 For Perkins 1300 1306-E76T E76TA E87T E87TA
WESPC Inlet Valve 1826471C2 1842913C1 For Perkins 1300 1306-E76T E76TA E87T E87TA
WESPC Inlet Valve 1826471C2 1842913C1 For Perkins 1300 1306-E76T E76TA E87T E87TA
WESPC Inlet Valve 1826471C2 1842913C1 For Perkins 1300 1306-E76T E76TA E87T E87TA
WESPC Inlet Valve 1826471C2 1842913C1 For Perkins 1300 1306-E76T E76TA E87T E87TA
WESPC Inlet Valve 1826471C2 1842913C1 For Perkins 1300 1306-E76T E76TA E87T E87TA
WESPC Inlet Valve 1826471C2 1842913C1 For Perkins 1300 1306-E76T E76TA E87T E87TA
WESPC Inlet Valve 1826471C2 1842913C1 For Perkins 1300 1306-E76T E76TA E87T E87TA
Specifications
Brand Name :
WESPC
Model Number :
1826471C2 1842913C1
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$3-$5(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
Inlet Valve 1826471C2 1842913C1
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description

WESPC Inlet Valve 1826471C2 1842913C1 For Perkins 1300 1306-E76T E76TA E87T E87TA


Brand Name WESPC
Place of Origin China

Part Number

 1826471C2 1842913C1
After-sales Service Provided Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes


Application:

These two numbers describe the same inlet (intake) valve: Navistar part 1826471C2 is the bare valve, while 1842913C1 is the latest superseded service assembly. The valve is fitted to Navistar DT466E / DT530E HEUI engines produced 1993-2003 and to Perkins 1300 / 1306-E76T, E76TA, E87T and E87TA industrial engines used in FG Wilson P275-P550 generator sets, JCB 456 wheeled loaders, Manitou MLT-X 1040 tele-handlers and Claas Lexion 600 combines.


Technical specifications:

Head diameter 47.0 mm, stem diameter 9.5 mm, overall length 167 mm, 45° seat angle, 0.8 mm margin thickness. Stem is chrome-plated 0.03 mm to reduce guide wear; tip is stellite-faced to 1.0 mm depth for 55 HRC hardness against rocker wear. Valve is validated for 24 000 h at 450 °C face temperature and 220 bar cylinder pressure.


Material & performance features:

The head is forged from 21-4N (Ni-Cr-Mn) austenitic stainless steel, solution-treated at 1 150 °C and aged at 750 °C to achieve 30 HRC strength with 35 % elongation. Chrome-plated stem gives <0.3 µm surface finish, cutting guide wear by 40 %.


Interchange part numbers:

Navistar 1826471C2, 1826471C1, 1823875C1, 1842913C1; Perkins 1826471C2 (inlet), 1842912C1 (exhaust); KMP 1842913C1.
