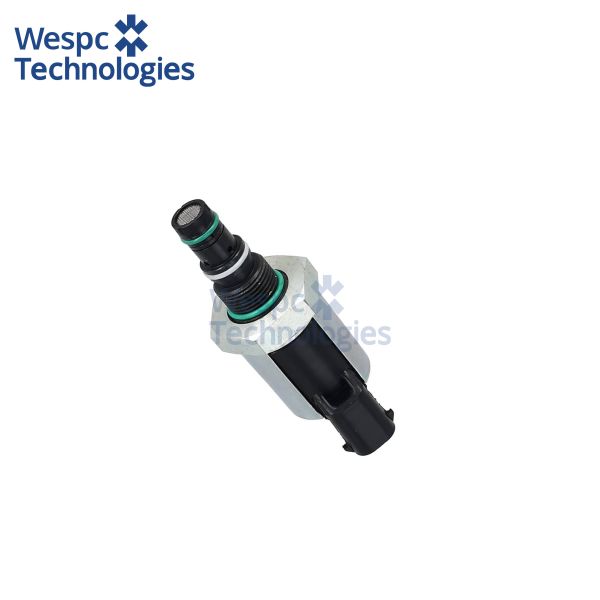

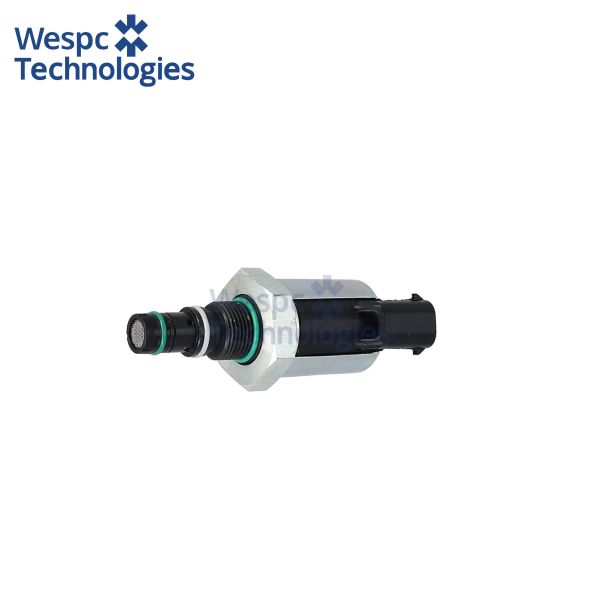

WESPC IPR Valve 1881094C92 For Navistar Perkins International Truck DT466 DT466E DT570 HT570
WESPC IPR Valve 1881094C92 For Navistar Perkins International Truck DT466 DT466E DT570 HT570
WESPC IPR Valve 1881094C92 For Navistar Perkins International Truck DT466 DT466E DT570 HT570
WESPC IPR Valve 1881094C92 For Navistar Perkins International Truck DT466 DT466E DT570 HT570
WESPC IPR Valve 1881094C92 For Navistar Perkins International Truck DT466 DT466E DT570 HT570
WESPC IPR Valve 1881094C92 For Navistar Perkins International Truck DT466 DT466E DT570 HT570
WESPC IPR Valve 1881094C92 For Navistar Perkins International Truck DT466 DT466E DT570 HT570
WESPC IPR Valve 1881094C92 For Navistar Perkins International Truck DT466 DT466E DT570 HT570
Specifications
Brand Name :
WESPC
Model Number :
1881094C92
Certification :
ISO9001
Place of Origin :
China
MOQ :
10
Price :
$23-$25(1 Piece)
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
In stock
Delivery Time :
5-10 work days
Packaging Details :
carton
Product Name :
IPR Valve 1881094C92
Condition :
100%new
Quality Class :
High-Quality
Stock :
Yes
Warranty :
1year
Packaging :
Carton
Description

WESPC IPR Valve 1881094C92 For Navistar Perkins International Truck DT466 DT466E DT570 HT570


Brand Name WESPC
Place of Origin China

Part Number

 1881094C92
After-sales Service Provided Video Technical Support, Online Support
Marketing Type Ordinary Product
Certificate ISO9001
Warranty 1 Year
Stock Yes


Application:

1881094C92 is the Injection Pressure Regulator (IPR) valve fitted to International / Navistar MaxxForce DT, 9 and 10 engines (2010-2015). It meters high-pressure oil to the HEUI injectors in DT466, DT570, HT570 and N9 / N10 on-highway and vocational chassis such as International ProStar, TranStar, WorkStar, DuraStar and IC CE / RE school buses.


Technical specifications:

The valve is a normally-closed, pulse-width-modulated solenoid rated 12 V, 2.2 A, 1.8 Ω coil @ 20 °C. It controls 3.4 – 24 MPa (500 – 3 500 psi) oil pressure with a 1 000 Hz PWM signal, 7 % – 67 % duty-cycle. Body is forged 6061-T6 aluminium with MIL-A-8625 hard-anodise, Viton main seal and 120-mesh stainless inlet screen.


Material & performance features:

The armature and poppet are nitrided 440C stainless to resist galling in aerated 15W-40 oil; internal spring is Cr-Si music wire preset for 0.2 % load loss at 1 million cycles. Integrated 0.1 mm pilot orifice gives ±2 % pressure repeatability, eliminating injector misfire and P0091 / P1211 DTCs.


Interchange part numbers:

Navistar 1881094C92, 1889325C95, 1889325C93; Alliant Power AP63514.
