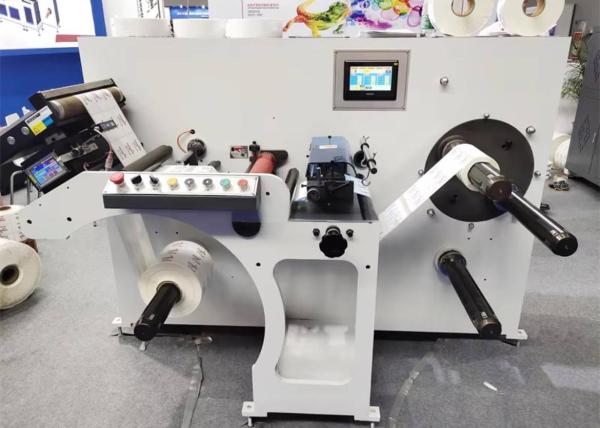

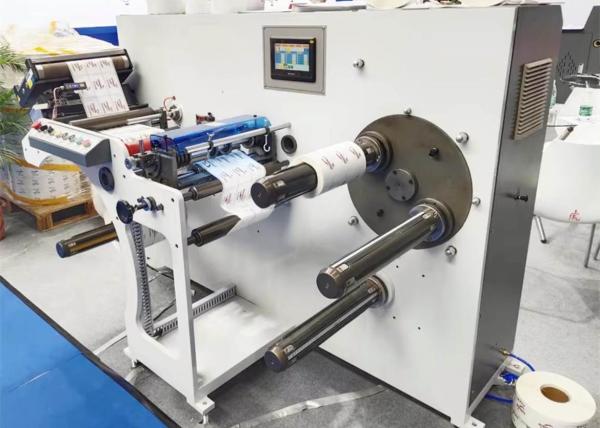

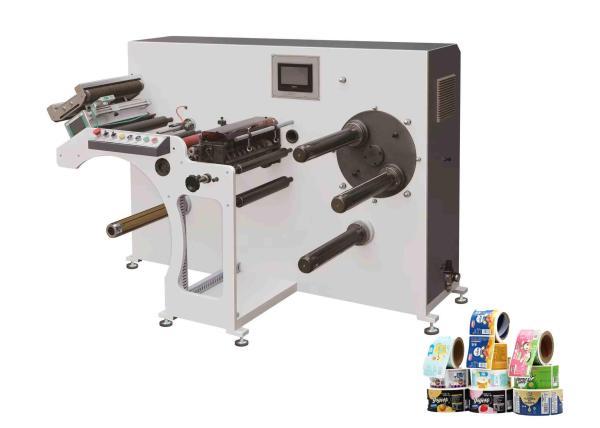

Automatic High Speed Label Slitting Machine with Servo Motor
Automatic High Speed Label Slitting Machine with Servo Motor
Automatic High Speed Label Slitting Machine with Servo Motor
Automatic High Speed Label Slitting Machine with Servo Motor
Automatic High Speed Label Slitting Machine with Servo Motor
Automatic High Speed Label Slitting Machine with Servo Motor
Automatic High Speed Label Slitting Machine with Servo Motor
Automatic High Speed Label Slitting Machine with Servo Motor
Specifications
Brand Name :
Sunrise
Model Number :
SR-350FG
Certification :
CE
Place of Origin :
Zhejiang,China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 Set/Sets per Month
Delivery Time :
15working days
Packaging Details :
Exported Wooden Case
Product name :
Automatic High Paper Speed Lable Slitting Cutting And Rewinding Machine
Application :
Manufacturing Plant, Machinery Repair Shops, Printing Shops, Construction works , Advertising Company
Feature :
Web guide control by auto ultrasonic,Rewind is turret type, auto rotate,With full servo motor,servo motor) 4.Sensor use germany sick brand, it can meter counter and quantity counter,with PLC, touch screen control system
Weight :
750kg
Blades installed :
8sets
Warrantly :
1year
Air suppply :
0.8mpa
Sliting speed :
350m/min
Description

High Speed Automatic Label Cutting Machine Self Adhesive Sticker Cutter Rewinder

Product Descriptions:

One researched new product, mostly is used for slitting narrow roll material, it is for top high level market with full servo driven system, typer tension system, top brand web guiding, turret rewind, it can meter and number counting, static eliminator, no material no working etc.

Performance and characteristics:

  • Web guide control by auto ultrasonic
  • Rewind is turret type, auto rotate.
  • With full servo motor(4 servo motor)
  • Sensor use germany sick brand, it can meter counter and quantity counter.
  • with PLC, touch screen control system

​Technical Data:

model SR-350FG SR-450FG
Max. Slitting speed 350 m/min
Max web width 350mm 450mm
Min. Slitting width 16mm
Cutter installed 8 sets
Max. Unwinding Dia 700mm
Max. Rewinding Dia

500mm
Air supply 0.8mpa
weight 1200kg
Dimension(L*W*H) 1850*1200*1300

Main Parts List:

NO. Parts Name Brand
1 Servo driver inovance
2 Counting sensor Germany--Sick
3 Servo Motor inovance
4 Proximity Switch Germany--Leuze
5 Relay French--Schneider
6 Buttons French--Schneider
7 A.C.Contactor French--Schneider
8 Touching-screen inovance

Machine details:

Automatic High Speed Label Slitting Machine with Servo MotorAutomatic High Speed Label Slitting Machine with Servo Motor

Automatic High Speed Label Slitting Machine with Servo MotorAutomatic High Speed Label Slitting Machine with Servo MotorAutomatic High Speed Label Slitting Machine with Servo MotorAutomatic High Speed Label Slitting Machine with Servo Motor

Finished Products:

Automatic High Speed Label Slitting Machine with Servo Motor

Packing & Delivery:

Automatic High Speed Label Slitting Machine with Servo Motor

Automatic High Speed Label Slitting Machine with Servo Motor

Automatic High Speed Label Slitting Machine with Servo Motor

Company Details:

Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational brand' as development strategy, to make company as the leader in after printing machinery line. Sincerity, quality,service is our operation principle, to be braveaggressivepragmaticefficient is our company spirit. We research and manufacture various of types of machines, welcome all old and new customers and friends to visit us!

Automatic High Speed Label Slitting Machine with Servo Motor

Automatic High Speed Label Slitting Machine with Servo Motor

FAQ:

1. who are we?
We are based in Zhejiang, China, start from 2013,sell to Domestic Market(60.00%),Mid East(12.00%),Eastern Asia(5.00%),South Asia(4.00%),Central America(3.00%),South America(3.00%),Africa(3.00%),Southeast Asia(3.00%),Oceania(3.00%),North America(2.00%),Eastern Europe(2.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Label Die Cutting Machine,Slitting Machine,Flexo Printing Machine,Laminating Machine,Rotary Label Die Cutting Machine

4. why should you buy from us not from other suppliers?
Wenzhou Sunrise Macinery Co.,Ltd professionally research and manufacture label die cutting machine, label slitting machine and some related series products, we pay attention to talents and the technical innovation, insist on "technical innovationnational

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C;
Language Spoken:English,Chinese
