Automatic High Speed Hot Stamping Die Cutting Machine
Automatic High Speed Hot Stamping Die Cutting Machine
Automatic High Speed Hot Stamping Die Cutting Machine
Automatic High Speed Hot Stamping Die Cutting Machine
Automatic High Speed Hot Stamping Die Cutting Machine
Automatic High Speed Hot Stamping Die Cutting Machine
Automatic High Speed Hot Stamping Die Cutting Machine
Automatic High Speed Hot Stamping Die Cutting Machine
Specifications
Brand Name :
SUNRISE
Model Number :
YS-350G
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1
Price :
230000-250000USD
Payment Terms :
T/T
Supply Ability :
30 Set/Sets per Month
Delivery Time :
50-60 days
Packaging Details :
exported wooden case
Max Feeding width :
350mm
Max.speed :
24000 times/h
Max.length of meter :
80m/min
Voltage :
3-phase 380v
Gross power :
16kw
Weight :
2500kgs
Position Accuracy :
±0.1mm
Warranty :
one year
Description

Automatic High Speed Hot Stamping And Die Cutting Machine

Scope of application:

It is used for die cutting adhesive label,adhesive tape rated products, this machine is best choice for working with high speed roll label printing machine,flexo printing machine,satellitic printing machine,PS printing machine,batch-type printing machine.

Introduction:

This machine is researched by ourselves. It is flat bed structure, computer-servo system pull material. Feeding-die cutting-waste discharge-rewinding-semi rotary sheet cutting, all processes are completed by computer in one time.

Feature:

1.Pressure is very stable

2.Work very quietly,normally without noise and shake

3.Two working station can be controlled separately.

4.The cutting plate is thin and light, very easy to get out and in, it is sucked by magnetic

5.Use wood die cutter, cheap and durable.

6.Automatic lubricate system, Automatic tension control

Machine details:

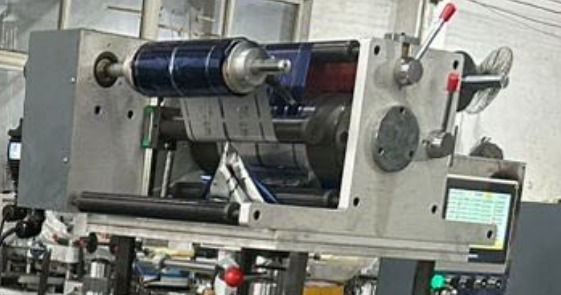

Heater Automatic High Speed Hot Stamping Die Cutting Machine

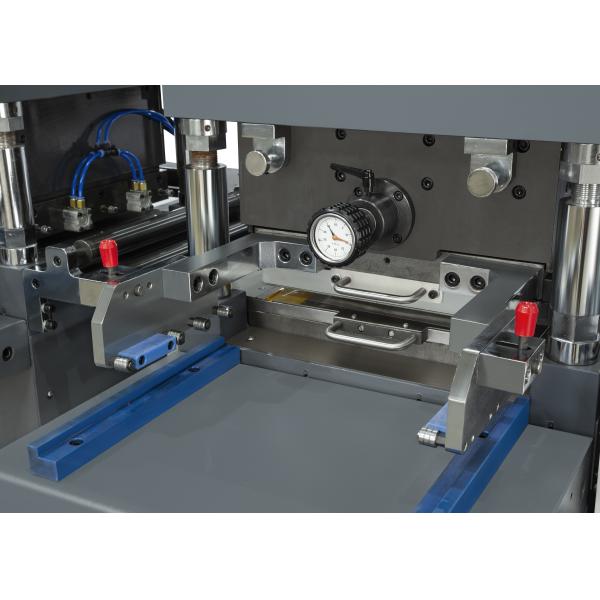

pressure gage Automatic High Speed Hot Stamping Die Cutting Machine

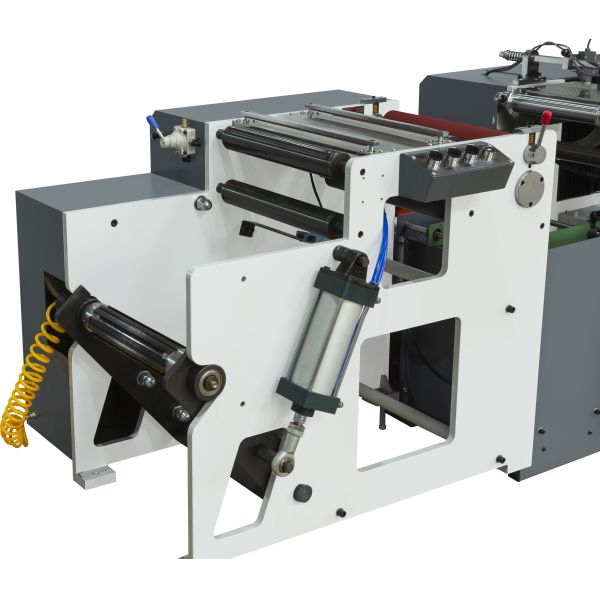

Auto loader Automatic High Speed Hot Stamping Die Cutting Machine

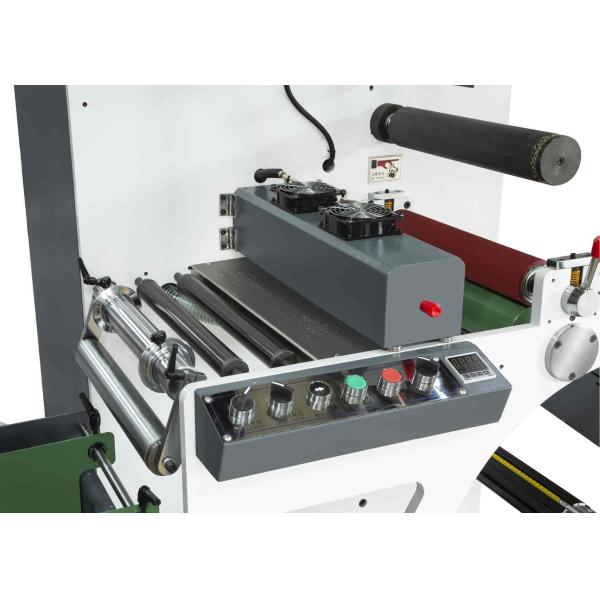

two direction hot stamp Automatic High Speed Hot Stamping Die Cutting Machine

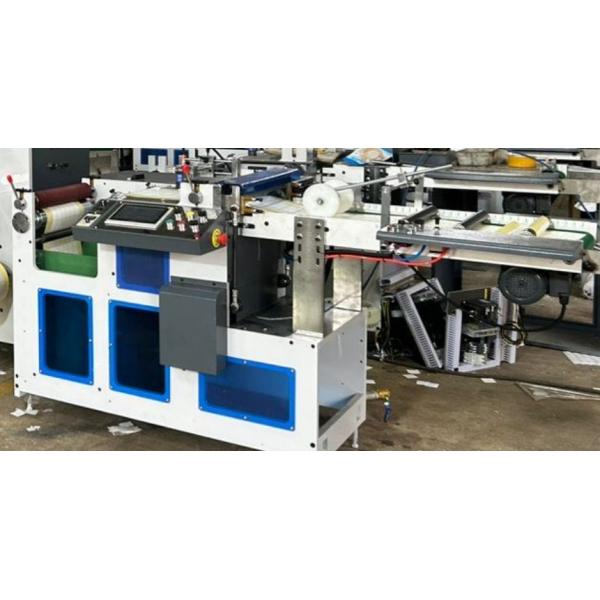

Sheet cutter (option) Automatic High Speed Hot Stamping Die Cutting Machine

Technical data:

Model YS-350G
Max Feeding width 350mm
Hot stamping area 340mm×300mm
Die cutting area 340mm×340mm
Max.speed 24000 times/h
Max.length of meter 80m/min
Position Accuracy ±0.1mm
Max.unwinder dia 800mm
Max.rewinder dia 800mm
Voltage 3-phase 380v
Gross power 16kw
Weight 2500kgs
Dimension(L×W×H) 5230mm×1300mm×1600mm
