Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%
Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%
Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%
Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%
Specifications
Brand Name :
SUNRISE
Model Number :
SR-320-4
Certification :
CE
Place of Origin :
Zhejiang, China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
30 Set/Sets per Month
Delivery Time :
within 30 days after deposit
Packaging Details :
exported wooden case
Printing speed :
10-100 m/min
Printing color :
4 color
Max. web width :
320 mm
Max. printing width :
310 mm
Max. unwinding diameter :
600 mm
Printing length :
177.8-355.6 mm
Voltage :
380V±10%
Precision :
±0.15mm
Weight :
2200kg
Overall Dimensions(LxWxH) :
1800x 1100 x 2000mm
Description

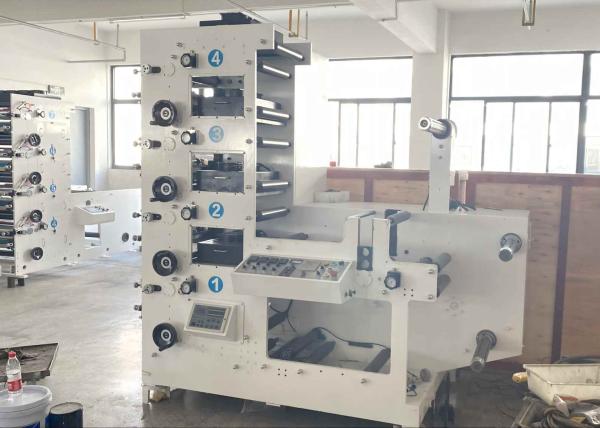

SR-320-4 Automatic Flexo Printing Machine

DETAILS FOR 4 COLORS FLEXO PRINTING MACHINE

  • ONE MOUNTING MACHINE
  • ONE ANILOX ROLLER FOR EACH GROUP
  • THREE SETS PRINTING ROLLER
  • PRINT BOTH SIDES(TURN BAR)
  • WITH LAMINATION
  • ONE UNWINDING TENSION CONTROLLER(MITSUBISHI JAPAN)
  • ONE REWINDING TENSION CONTROLLER
  • ONE DIE CUTTING STATION

Specifications:

l Adopt high quality ceramic anilox cylinder to transfer the ink.

l Unwinding is controlled by magnetic powder brake and rewinding is controlled by magnetic power clutch.

l Unwinding adopts auto tension controller.

l Each printing unit adopts 360° degree adjustment, it can independently gear and loosen, so other printing units can continue do printing.

l Each printing unit equips with IR and hot air

l Equipped with web guide for tracking.

l This machine with one die-cutting station, which makes printing and die-cutting can be finished in one process.

l The ink rollers will be separated from the printing rollers, and keep running when the machine stops.

l The main machine inverter is imported.

l It equipped with 3” air expanding shaft on unwinding/rewinding section.

l All the rollers are deal with thermal treated.

l The machine can finish material-feeding, printing, varnishing, drying, laminating, rewinding and die-cutting in a lump. It is an ideal machine for printing note and top-grade adhesive label.

Main Technical Parameters:
Printing speed 10-100 m/min
Printing color 4 color
Max. web width 320 mm
Max. printing width 310 mm
Max. unwinding diameter 600 mm
Max. rewinding diameter 600 mm
Printing length 177.8-355.6 mm
Voltage 380V±10%
Precision ±0.15mm
Voltage three-phase four-wire 380V,50HZ
Weight 2200kg
Overall Dimensions(LxWxH) 1800x 1100 x 2000mm

Cylinder type automatic clutch

Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

IR DRY UNIT

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

CAMERA INSEPECTPR

(option)

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

EPC web guide

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

INVERTER

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

UNWINDING MAGNETIC BRAKE

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

ELECTRICAL CARBINIET

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

LAMINAINTING UNIT

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

UNWINDING TENSION

(MITSUBISHI)

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

PLATE ROLLER, ANILOX ROLLER, OIL ROLLER

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

TURN BAR

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

UV DRIER (option)

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

Corona(OPTION)

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%

ROTARY DIE CUTTER

 Four Colors Flexo Printing Machine Automatic Printing Length 177.8-355.6 Mm Voltage 380V±10%
