Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
Specifications
Brand Name :
Teraoka
Model Number :
631S
Place of Origin :
China
MOQ :
1roll
Price :
USD1~USD50
Payment Terms :
T/T
Supply Ability :
10000roll/week
Delivery Time :
3~5working days normally
Packaging Details :
packing in cartons
Brand :
Teraoka
Model :
631S
Color :
Multicolor
Base material :
PE
Adhesive :
Acrylic
Adhesive faec :
Single sided
Thickness :
0.03/0.05/0.15mm
Feature :
Electrical insulation
Specification :
Customizable
Description

Teraoka 631S #12 #25 #100 Polyethylene film tape Electrical insulation tape

Product Description:

  • The 631S series is an insulating tape that has acrylic adhesive coated on a polyester film.

Product Features:

  • Heat resistance
  • Electrical insulation property
  • Chemical resistance
  • High adhesion
  • Soft and comfortable
  • Remove without leaving any remaining adhesive residue

Product Applications:

  • The outer and inner insulation of the transformer
  • Insulation and fixation of electronic components: LCD liquid crystal display, lithium-ion televisions, computers, copiers, fax machines, telephones, DVDs, instruments and meters
PRODUCT PARAMETERS

#12

 #25 #100
Thickness(MM) 0.03 0.05 0.15
Color Transparent, White, Blue, Green White, Black, Blue, Red, Yellow, Green, Transparent Transparent
Width(MM) 1000 1200 1200
Length(M) 50 30 , 50 20
Peel adhesion (N/25mm) 8.58 12.26 23.29
Tensile strength(N/25m) 39.2 95.6 343
Elongatio(%) 80 80 80
Breakdown voltage(KV) 4 6 14.6
Standards and Certifications UL temperature class 130°C

UL temperature class 130°C

UL746A CTI≧600V

 -

Note:

The #12 and #25 are also ideal for use in winding as it is hard for the terminal to peel off

#100 is suitable for insulating spacers

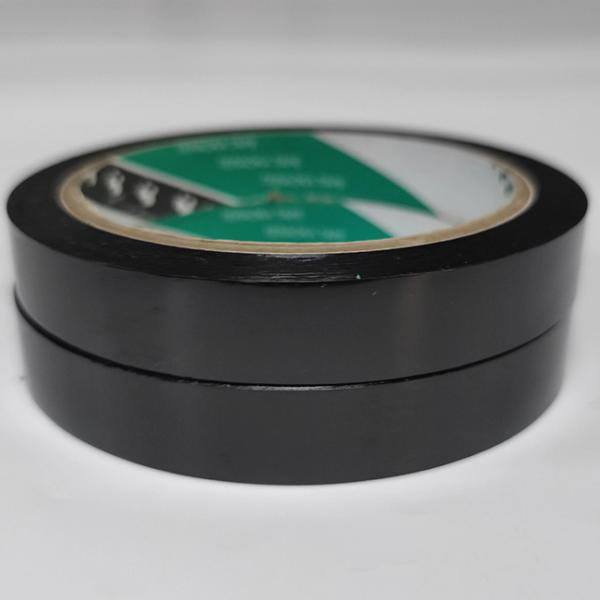

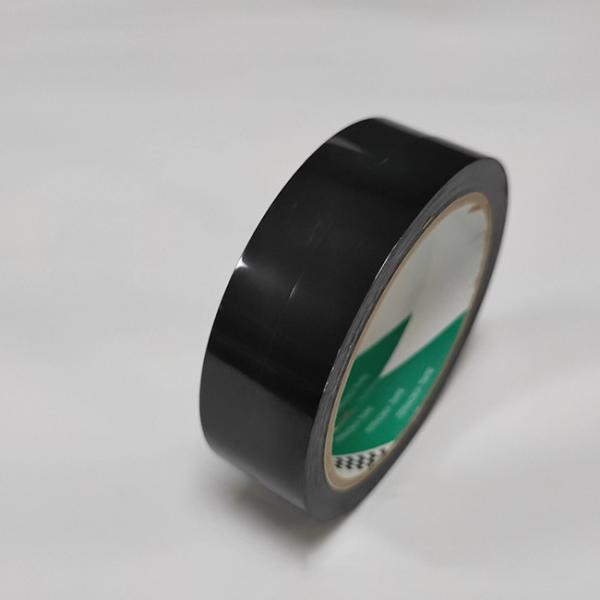

PRODUCT DISPLAY
Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene FilmTeraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film
PACKING OF TRANSPORT

Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene FilmTeraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene FilmTeraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film

COMPANY PROFILE

PUFENG is a professional die-cutting processing company, established in 2014.We have professional die-cutting materials and affiliated factories. We will do our best to solve all your bonding problems and provide you with professional solutions and suitable products.

Main products: viscose products, protective films, insulating products, foam and sponge. There are various brand partners: 3M, TESA, NITTON, SONY, TERAOKA, INOAC, ROGERS, etc.

Teraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene FilmTeraoka 631S 12 25 100 Electrical Insulation Tape With Acrylic Adhesive Polyethylene Film

OUR SERVICES


1.Your enquiries about our products will be answered within 12 hours.


2.OEM or ODM projects are very welcome.


3.We can die cut or design products according to your requirements.shock-proof, shading, etc.


4.Provide perfect after-sales service, if you have questions, please contact us.


5.Pack according to your requirement and deliver on time.

COMMON PROBLEM

1.)How to order from Pufeng?
Just send us an email or call us.
2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.
3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
