TESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering
TESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering
TESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering
TESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering
TESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering
TESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering
Specifications
Brand Name :
TESA
Model Number :
8853
Place of Origin :
China
MOQ :
1roll
Price :
USD1~USD50
Payment Terms :
T/T
Supply Ability :
10000roll/week
Delivery Time :
3~5working days normally
Packaging Details :
packing in cartons
Brand :
TESA
Model :
8853
Color :
Translucent
Adhesive :
Modified acrylic
Base materiNot haveal :
Non-woven
Total Thickness :
50 μm
Temperature range :
-20℃ ~ 260℃
Characteristic :
High obedience
Applied range :
FPC bonding of electronic parts
Specification :
1250mm × 100m (Customizable)
Description

TESA 8853 translucent non-woven high temperature resistant double-sided tape


Product Description
Tesa® 8853 is a double-sided semi-transparent ultra-thin non-woven fabric tape with a total thickness of 50 µm. It is made with a specially modified acrylic adhesive system and is combined with a high-temperature-resistant Graflex release paper (glass fiber paper)


Product features:

  • The acrylic adhesive gives this product an excellent temperature resistance up to 260°C.
  • The highly comfortable ultra thin non-woven backing offers excellent converting performance with limited edge picking
  • The temperature resistant glassine liner ensures it can be easily released without adhesive residue left after solder reflow process
  • Sufficient holding power and peel strength even after solder reflow process
  • Excellent die-cutting properties and very low oozing due to special backing
  • High tensile strength
  • High aging resistance
  • Conforming to RoHS
  • High conformability for uneven surfaces

Product Application :

  • FPC mounting application of electronic components, subjected to high temperature processing and operating environments


PRODUCT PARAMETERS



Brand

 TESA Model 8853


Base material

 Non-woven Backing Release paper


Color

 Translucent Adhesive Modified acrylic


Total thickness

(μm)

 50 μm Specification

1250mm × 100m

(Customizable)


PROPERTY / PERFORMMANCE VALUE :


Humidity resistance


 Chemical resistance Anti-aging (UV) Initial viscosity Anti-plasticizer


Very good


 Good Very good Good Good

PEEL STRENGTH FOR DIFFERENT SURFACES :

Material Initial peeling strength
( N/cm )

Peel strength after 14 days
( N/cm )
ABS 4.8 6.0
Aluminum 4.5 5.9
PC 5.8

6.9
PET 5.0 5.4
PI 5.9 6.0
Steel plate 5.3 6.5

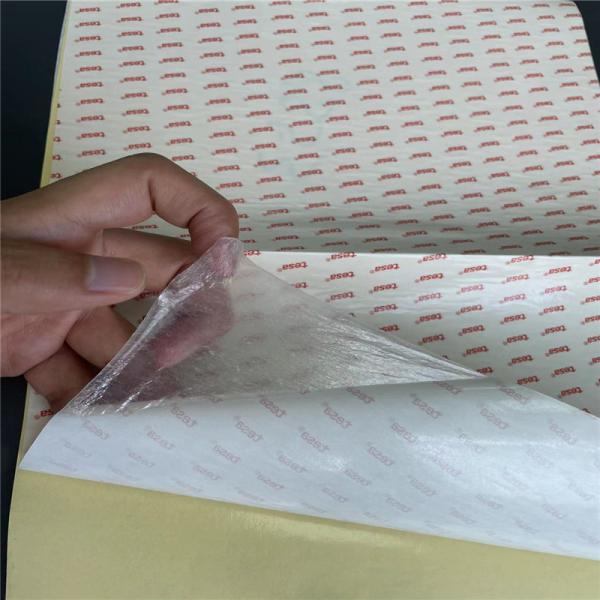

PRODUCT DISPLAY

TESA 8853 50µm double sided translucent non-woven tape -can go through reflow solderingTESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering
​​

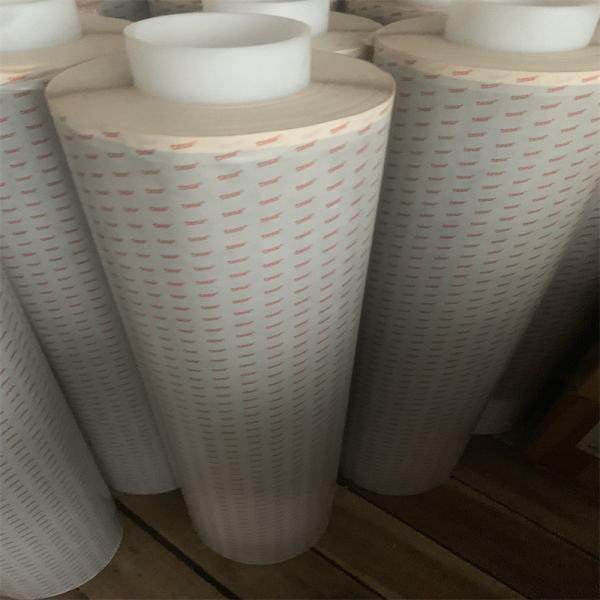

PACKING OF TRANSPORT

TESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering


COMPANY PROFILE

SHENZHEN PUFENG PACKING MATERIAL CO.,LTD (PUFENG) is an international machining manufacturer, who is devoting to the precision die-cutting machining field, designing adhesive products, insulation products, sourcing the best solutions and improving the quality and performance of products for customer.
The operation principle of PUFENG is "Running based on the market and sincerity,client and high quality come first." In order to provide a complete set of on-step products and service to customer, PUFENG has formed a strong technical team for worldwide customers to develop precision products. PUFENG’s quality principle is “Serve customers precisely on every tiny point of the demand from customer.” We hope to build up business relationships with you on the basis of equality and mutual benefit.

TESA 8853 50µm double sided translucent non-woven tape -can go through reflow solderingTESA 8853 50µm double sided translucent non-woven tape -can go through reflow soldering


OUR SERVICES


1.Your enquiries about our products will be answered within 12 hours.


2.OEM or ODM projects are very welcome.


3.We can die cut or design products according to your requirements.shock-proof, shading, etc.


4.Provide perfect after-sales service, if you have questions, please contact us.


5.Pack according to your requirement and deliver on time.


COMMON PROBLEM


1.)How to order from Pufeng?
Just send us an email or call us.
2.)Do you provide free samples for testing?
Yes, we provide samples free of charge.
3.)How to deliver the goods?
We will advise you on the appropriate mode of transport, sea, air or express. Of course, if you have your own repeater, that's no problem.
4.)Can we trust the quality of Pufeng products?
Of course, don't worry. Our quality will definitely match the samples we send. If not, we will be responsible.
5.)What payment does Buffon accept?
For small quantities, we require 100% TT payment in advance; Other conditions, negotiable.
6.)What is the lead time of each order?
If the tape you ordered is in stock, we can deliver it within 1~3 days.
If die cutting is required, delivery time shall be determined by quantity.
