Intelligent Material Inventory Monitoring System for Sanitary Napkin Production Line with Automated Material Handling

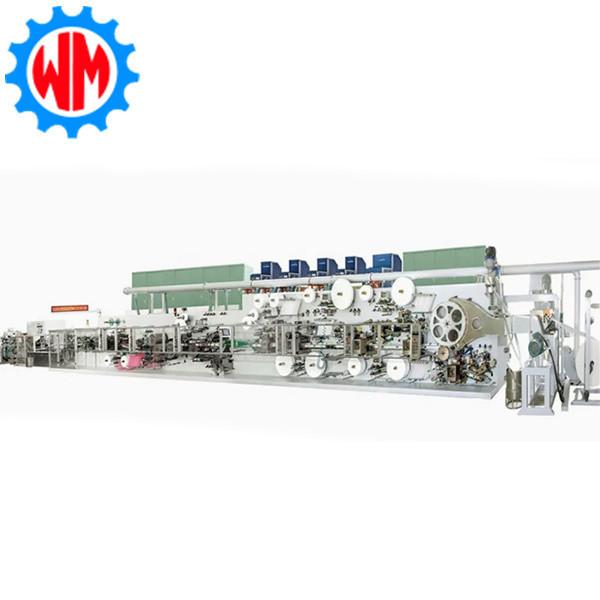

Intelligent Material Inventory Monitoring System for Sanitary Napkin Production Line with Automated Material Handling
Specifications
Brand Name :
Womeng
Model Number :
WM-SN101
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1
Price :
$250000~$350000
Payment Terms :
L/C,T/T
Supply Ability :
40sets/year
Delivery Time :
90-120days
Packaging Details :
Seaworthy Wooden Box
Cutting System :
Servo motor control
After-Sales Service :
Engineers available to service machinery overseas
Packaging System :
Automatic bagging and sealing
Control System :
PLC control
Working Type :
Automatic
Qualified Rate :
≥98%
Description

Product Description

Sanitary Napkin Production Line with Ergonomic Design​​

Our production line incorporates thoughtful details and user-friendly features to ensure superior product quality and operational efficiency:

  1. ​​Comfort-Optimized Elastic Application​​

    • Utilizes adaptive elastic bonding technology for waist and leg openings

    • Ensures secure yet gentle fit to prevent skin irritation

    • Eliminates uncomfortable pressure marks while maintaining leak-proof performance

  2. ​​Enhanced Softness Technology​​

    • Implements delicate embossing surface treatment

    • Significantly improves material softness and breathability

    • Maintains structural integrity while enhancing wearer comfort

  3. ​​Intuitive Operation System​​

    • Features large-format touchscreen control interface

    • Enables simple parameter adjustment and function switching

    • Requires minimal training for operator proficiency

  4. ​​Maintenance Efficiency​​

    • Modular component design for quick access and replacement

    • Reduces downtime through simplified maintenance procedures

    • Lowers long-term operational costs with efficient serviceability


Product Info

Product size
M: 680X450 L: 800X650 XL: 950X760(Customixed according to customer requirement)
Product structure
 Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
 Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 50 Tons approximately
