Professional Design High Speed Full Servo Lady Pant Production Line PLC Control Easy Operation
Professional Design High Speed Full Servo Lady Pant Production Line PLC Control Easy Operation
Specifications
Brand Name :
Womeng
Model Number :
WM-LB03
Certification :
CE,ISO
Place of Origin :
Quanzhou City,China
MOQ :
1
Price :
$450000~$600000
Payment Terms :
L/C,T/T
Supply Ability :
24sets/year
Delivery Time :
120~150days
Packaging Details :
Seaworthy Wooden Box
Material :
Non-woven fabric, SAP, fluff pulp
Waistband Type :
Elastic waistband
Power Supply :
380V, 50Hz, 3-phase
Control System :
PLC
Warranty :
1 year
Machinery Test Report: :
Provided
Description

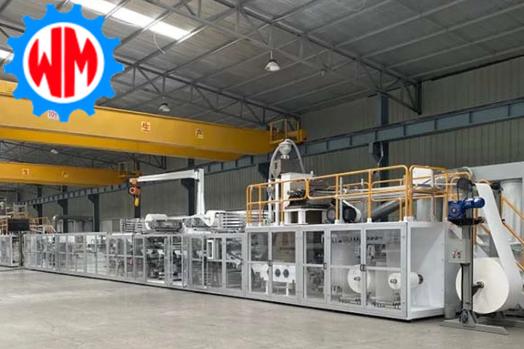

Professional Design High Speed Full Servo Lady Pants Production Line PLC Control Easy Operation


Product Descripiton

This lady pants manufacturing equipment specializes in optimizing traditional material handling processes. Featuring an advanced material flattening system, it effectively eliminates wrinkles and curls formed during raw material storage and transportation.


The device automatically adjusts pressure and tension parameters to accommodate various materials - including non-woven fabrics of different thicknesses and textures, as well as plastic films - ensuring smooth, wrinkle-free material feeding into the processing zone. This precise control guarantees optimal layer alignment during composite processing, significantly enhancing the final product's quality consistency and structural stability.


Professional Design High Speed Full Servo Lady Pant Production Line PLC Control Easy Operation


​​Technical Specifications​​

  1. ​​Design Speed​​: 500 pcs/min

  2. ​​Operating Speed​​: 400 pcs/min

  3. ​​Qualification Rate​​: ≥97% (excluding waste from glue applicators and material splicing joints)

  4. ​​Efficiency​​: ≥90%

  5. ​​Power Requirement​​: ≥205 kW

  6. ​​Power Supply​​: 380V ±5%, 50Hz

  7. ​​Cable Specification​​: Three-phase four-wire 380V/50Hz (with ground wire) 3×120mm² + 1×50mm² + 1×25mm²

  8. ​​Air Pressure​​: 6 kg/cm² (≥0.6 MPa)

  9. ​​Total Weight​​: 100 tons

  10. ​​Machine Dimensions​​: 40×6×4 m (L×W×H)

  11. ​​Workspace Requirement​​: 45×8×7 m (L×W×H)

  12. ​​Color​​: Rice white (customizable upon request)

  13. ​​Product Sizes Available​​: S, M, L, XL
