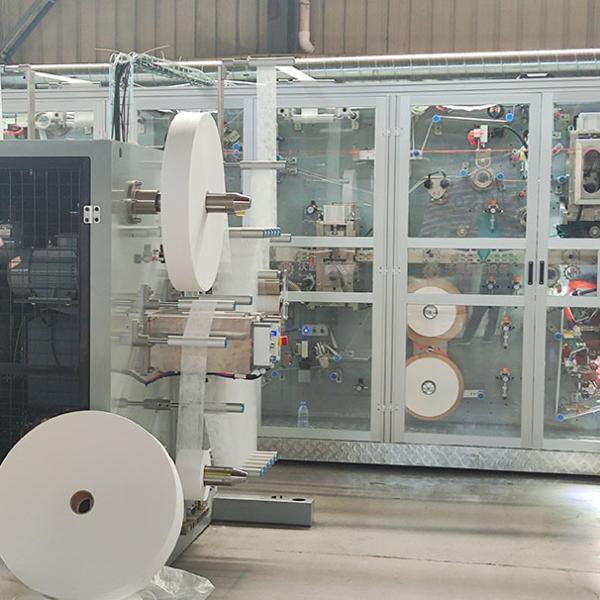

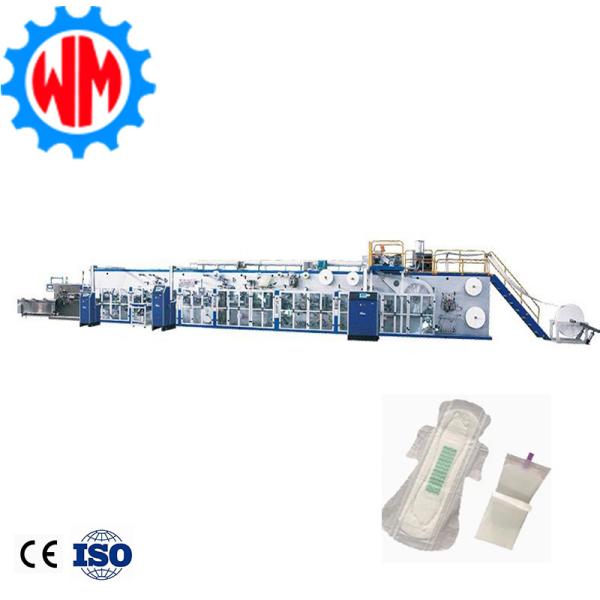

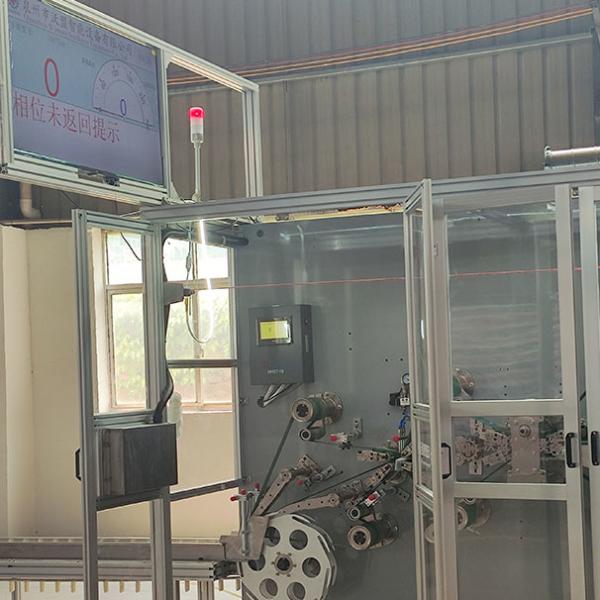

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent
New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent
New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent
New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent
New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent
New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent
New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent
New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent
Specifications
Brand Name :
Womeng
Model Number :
WM-ASN04
Certification :
CE
Place of Origin :
Quanzhou City,Fujian Province, China
MOQ :
1 piece
Price :
$350,000-$500,000
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
20sets/year
Delivery Time :
60-100days
Packaging Details :
Seaworthy Wooden Box
Design :
Full Servo Control System
Control System :
PLC
Waste Collection System :
Automatic
Operation Mode :
Touch screen
Material :
Stainless Steel
Shipping Port :
Xiamen port
Machine Color :
According to Customized
Efficiency :
90%
Production Speed :
1200 pcs/min
Product Size :
240mm, 280mm, 320mm,420mm
Description

Product Info


Product size
25m*2.5m*3m(for reference only)
Product structure
 Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Servo Drive(Easy to change size), timing belt and flat be
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&Blt are import products, and all the key parts, are import bearings.
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
 Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
400KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 50 Tons approximately

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent


New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent


New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

New Model Women Sanitary Pad Production Line CE Certificate with Sample to Be Sent

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com





Stable and efficient mass production capacity, suitable for large-scale orders


High continuous operation: The core components of the equipment (such as the pressing roller and the cutting knife) are made of wear-resistant materials, with an effective daily production time of over 20 hours, reducing downtime caused by material jamming and component wear. It is suitable for accepting large batch orders from chain supermarkets and brand merchants.


Flexible switching of multiple specifications: Without modifying the equipment, it can quickly produce sanitary napkins of different lengths (180mm-420mm) and types (daily-use, night-use, sanitary pads, ultra-thin), meeting the demands of multi-category orders, especially suitable for customers with a rich product line.


The quality of the finished products is reliable, enhancing terminal recognition


Leak-proof and bonding guarantee: By optimizing the bonding strength of the side wings and the uniformity of the water-absorbing layer distribution, defects such as "side leakage" and "faults" are reduced, and the finished product qualification rate remains stable at over 98%. The elastic waist tension is adjustable to fit users of different body types and enhance wearing comfort.


Skin-friendly design: The surface bonding process is adjustable to avoid stiffness caused by excessive compaction. The products produced have a soft touch, reducing the risk of irritation to sensitive skin and are suitable for markets with high requirements for "comfort" (such as Europe, America, Japan and South Korea).
