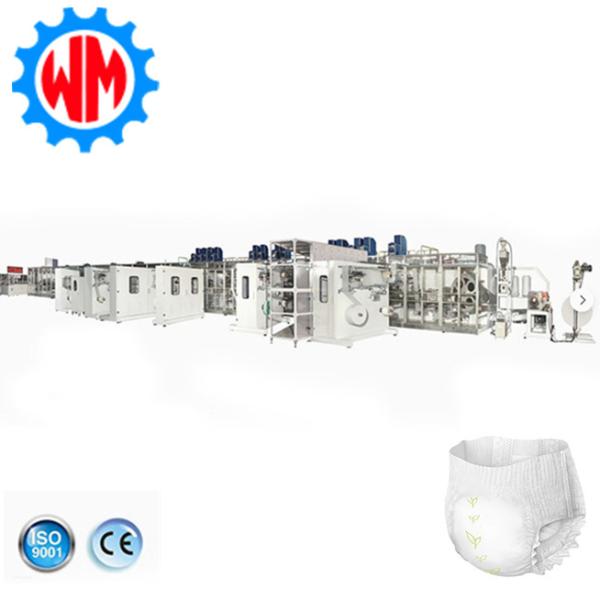

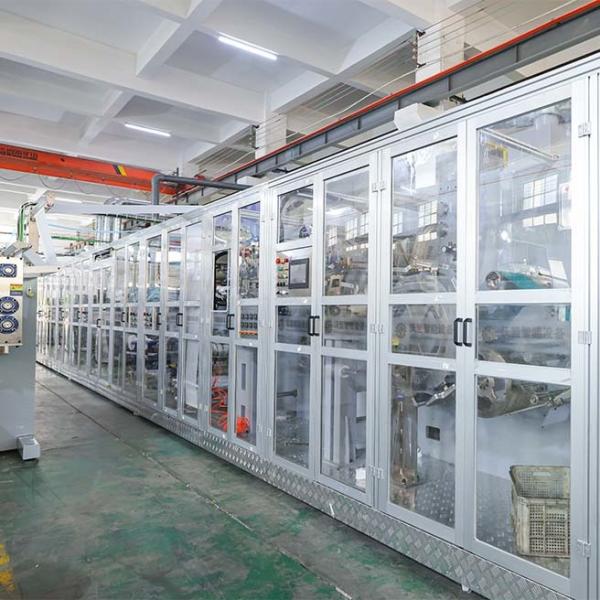

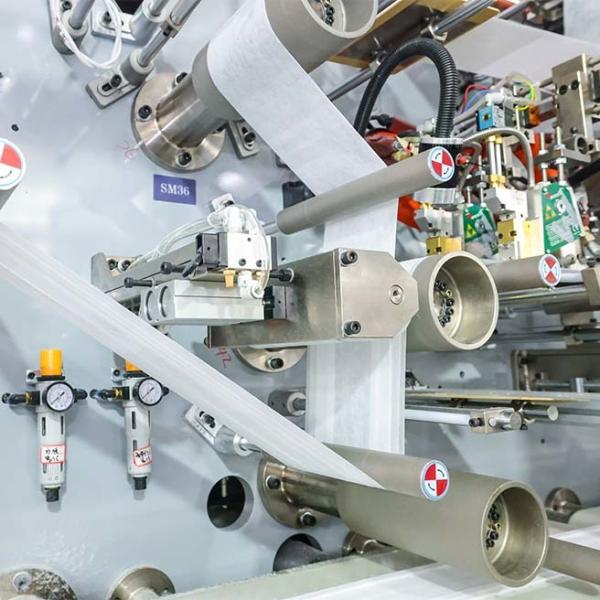

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate
Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate
Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate
Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate
Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate
Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate
Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate
Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate
Specifications
Brand Name :
Womeng
Model Number :
WM-FTP12
Certification :
CE
Place of Origin :
Fujian,China
MOQ :
1
Price :
$500,000.00-$800,000.00
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
12sets/year
Delivery Time :
80~120 Days
Packaging Details :
Seaworthy Wooden Box
Size Range :
S, M, L, XL
Raw Material :
Non-woven fabric, SAP, PE film
Warranty :
1 year
Function :
Automatic cutting, folding, and sealing
Production Speed :
500-700 pieces per minute
Size :
Adjustable
Type :
Fully Automatic
Operating Interface :
Touch Screen
Color :
Customizable
Control System :
PLC
Description

Product Info



Product size
35m*6m*3m(for reference only)
Product structure
 Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker.
Control system
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
Drive system
Semi Servo Drive, timing belt and flat belt are import products, and all the key parts, are import bearings.
Tension system
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor.
Safety system
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
Packaging system according to customer requirements with palletizer machine (double push double exit ) adjustable
Materials corrective system
 Materials corrective system: Adopt international famous brand deviation correction system
Power
380V, 50HZ three phase five wire
Machine Capacity
230KW (Excluding glue machine and air compressor)
Bleed pressure
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
Machine weight 100 Tons approximately

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate


Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Stable Production 700pcs/min Baby Training Panties Production Line CE Certificate

Whatsapp: +008615805080212

Email:jessie@wm-machinery.com

https://www.diapersmachines.com





High adaptability: Flexibly respond to differences in the international market



Multi-size quick switching:

No need to disassemble the core components. Just adjust the parameters through the touch screen, and the size switch from "Newborn Size (NB) to Extra size (XL)" can be completed within 30 to 45 minutes. It supports the production of 6 to 8 common sizes on the same production line, meeting the needs of infants of different age groups.


Functional modules can be added or removed:

According to the buyer's requirements, functional modules such as "urine display strip printing", "breathable bottom film composite", and "ultra-thin core forming" can be flexibly installed or removed (without the need to modify the main body of the production line). For example, for the European market, "biodegradable material adaptation modules" can be installed, and for the Middle East market, "high absorption core modules" can be installed to quickly achieve product differentiation.


Local material compatibility:

Supports adaptation to global mainstream raw materials (such as Sumitomo high molecular absorbent resin from Japan, local non-woven fabric from Southeast Asia). Whether buyers choose low-cost local materials or high-specification imported materials, the production line can stably form without affecting the core performance of the product such as absorption and breathability.


IF you want to know anything else,please contact us!
