Specifications
Brand Name :
JOHNSON TOOLS
Model Number :
LCB100-X
Certification :
GB, SGS
Place of Origin :
CHINA
MOQ :
10pcs
Price :
Negotiate
Payment Terms :
L/C,T/T,Western Union
Supply Ability :
100000pcs/year
Packaging Details :
Paper box
Processing technology :
Laser welded
Application :

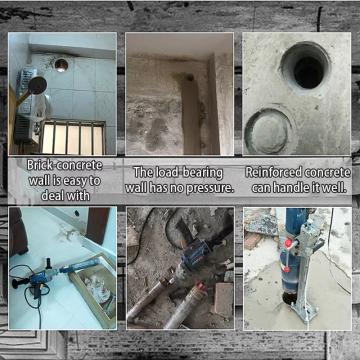

Masonry, brick, concrete, reinfored concrete
Size :
100mm
Connector Type :
1 1/4 UNC
Working length :
250mm
Segment Type :
Net Shape Segment
Description


Drilling Tools OD32-350mm Concrete Diamond Core Drilling Bits For Masonry & Concrete


1.PRODUCT DETAILS :


High quality diamond concrete core drill bit. With the special design segment, it can easily flush away the chipping, and enhanced the drilling efficiency. The construction core drill bit widly used for drilling concrete, brick, reinforced concrete and so on.


2.How dose a diamond core bit work?

A diamond core bit does not cut but works by milling. During the sharpening process performed at the factory, individual diamond crystals are exposed on the face and sides of the segment and it is these that do the milling work. The metal matrix holds each diamond in place. During the work, each diamond is supported by a comet’s tail which strengthens the supporting action of the bond immediately “behind” the diamond crystals.


A diamond tool properly suited to the material to be cut, the equilibrium between the work of the diamond and the abrasion-resistance of the bond is optimum; the diamond is held in place until it is destroyed and new crystals appear. It is in this equilibrium that all the quality of the diamond tool resides.
A core bit intended for cutting hard, dense (less abrasive) materials requires a softer segment bond. This wears out more rapidly, by replacing the worn diamonds relatively quickly so that the blade continues to cut.


3.Specification:


Item No. Diameter Segment Dimension Teeth No. Working Length
mm Height Thickness
LCB32 32 7 3 4 450
LCB38 38 7 3 4 450
LCB50 50 7 3.5 5 450
LCB63 63 7 3.5 6 450
LCB75 75 7 3.5 7 450
LCB89 89 7 3.5 8 450
LCB102 102 7 4 9 450
LCB115 115 7 4 9 450
LCB127 127 7 4 10 450
LCB150 150 7 4 12 450
LCB178 178 7 4.5 14 450
LCB200 200 7 4.5 16 450
LCB230 230 7 4.5 18 450
LCB250 250 7 5 20 450
LCB300 300 7 5 22 450
LCB350 350 7 5 24 450
