Specifications
Brand Name :
HT
Model Number :
HT-VBGW
Certification :
ISO9001:2015
Place of Origin :
China
MOQ :
2
Price :
Price negotiable
Payment Terms :
T/C,T/T
Supply Ability :
300/pcs per month
Delivery Time :
2-3weeks
Packaging Details :
Carton Box
Shape :
Cylindrical
Size :
According to you need
Material :
CBN
Bond :
Ceramic/Vitrified
Usage :
Internal grinding
Application :
Fuel Injection pump nozzle
Specification :
1A8W 4*7*2*6*57 B91
Hardness :
Normal
Description

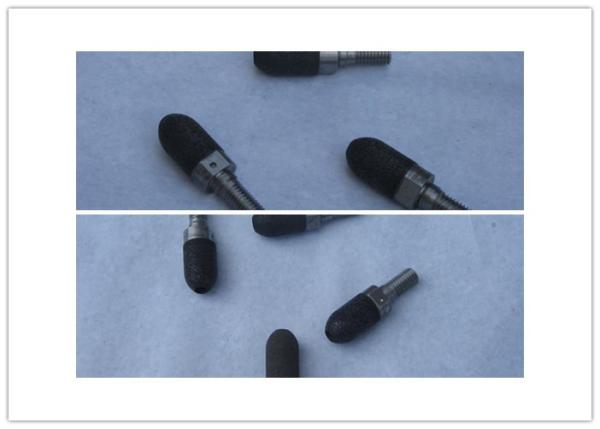

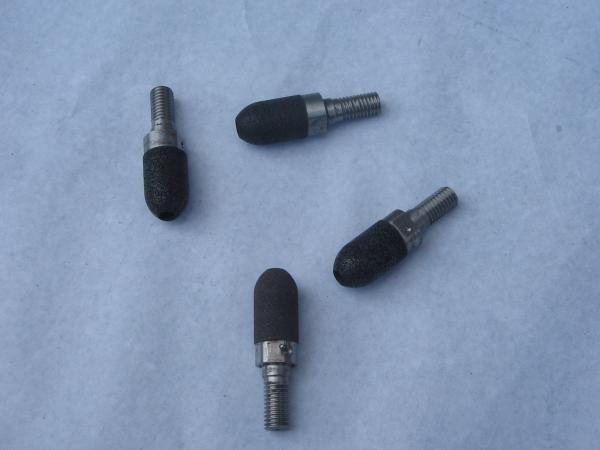

Fuel Injection pump nozzle and high pressure common rail special CBN grinding wheel

The channel grinding wheel is one of the forming grinding methods, and the connection method is the same as the inner grinding wheel, which is connected with the machine tool through the base thread or the matching rod. This kind of grinding wheel is mainly used for grinding the inner and outer channel grinding of constant velocity universal joint ball cage of automobile drive shaft, mainly supporting imported CNC high precision channel grinding machine. The main structural feature of the product is that the top of the abrasive layer is fixed into a circular arc of a certain size, and the surface is processed by the driving of the numerical control program.

Shape Layer dimensions Shank dimensions Type
D T X Y Y1 L
1A1W 4 6 1.1 3 2.5 T+60 1
1A1W 5 6 1.5 3 - 2
1A1W 6 6 1.5 6 4 1
1A1W 8 6 2 6 5 1
1A1W 8 10 2 6 5 1
1A1W 10 6 2 6 - 2
1A1W 10 10 2 6 - 2
1A1W 12 6 2 6 - 2
1A1W 12 10 2 6 - 2
1A1W 15 6 2 6 - 2
1A1W 15 10 2 6 - 2
1A1W 20 6 2 6 - 2
1A1W 20 10 2 6 - 2

Featured Application:

Internal Grinding Fuel Injection Nozzle Bore and Seat face;

Internal grinding of Valve Lifter Bore;

Internal Grinding of Power Steering Pump Stator;

Internal Grinding of Compressor Stator;

Grinding of Inner and outer faces of Ball & Roller Bearings;

Grinding of Bores of Inner Rings

Grinding of Hydraulic and Pneumatic Cylinders

Grinding of Con-rods ends in the Auto. Industry;

Grinding of Gun Barrels,

Grinding of Gears Bores, Collects;
