CNC Diamond Wire Saw Machine for Marble Circular Plate Digital Letter Cutter

Specifications

Brand Name :

Xianda

Model Number :

CNC-2000

Certification :

API, CCC, SONCAP, GOST, ISO, CE

Place of Origin :

Jinjiang,Fujian,China

MOQ :

Price :

$ 32000-36500

Payment Terms :

L/C,D/A,D/P,T/T

Supply Ability :

1000set/year

Delivery Time :

45days

Description

Basic Info.

Model NO.

CNC-2000/2500/3000

Application

Machinery & Hardware, Art & Craft, Construction, Mineral Industry, Stone Industry

Source Voltage

380V

Automation

Automatic

Cutting Ability

High Speed

Control

CNC

Certification

API, CCC, SONCAP, GOST, ISO, CE

Max Processing Size

3000*2000*1500mm

Dimension of Worktable

2500*1300mm

Main Motor

7.5kw

Gross Motor

11kw

Outline Dimension

6500*6300*3800mm

Gross Weight

5000kg

Water Consumption

4m3/H

Color

Blue and Yellow

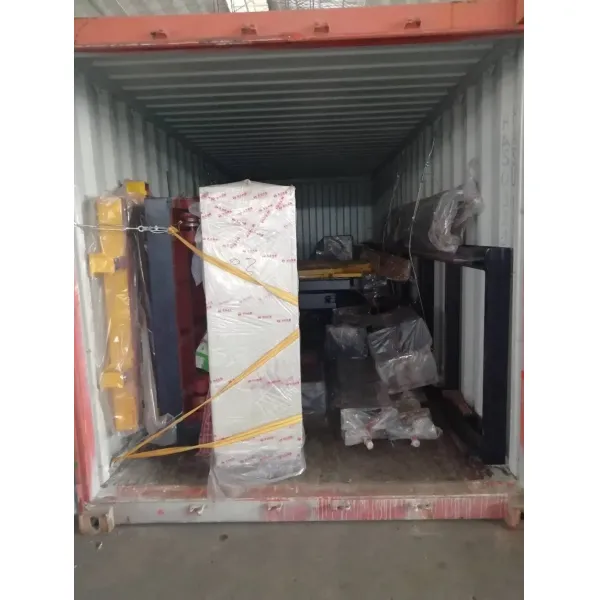

Transport Package

Load in a 20 Feet Container

Specification

6500*6300*3800mm

Trademark

Xianda

Origin

Jinjiang, Fujian, China

HS Code

84641090

Production Capacity

1000 Sets/Year

Product Description

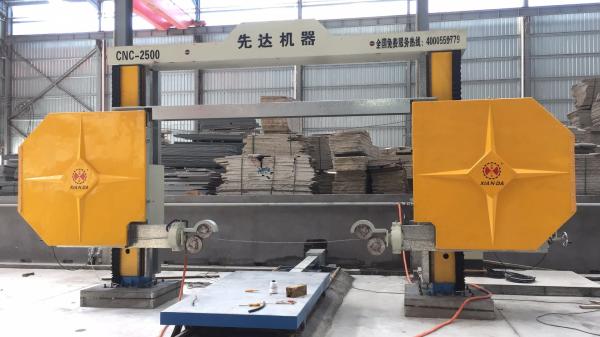

CNC Diamond wire saw machine

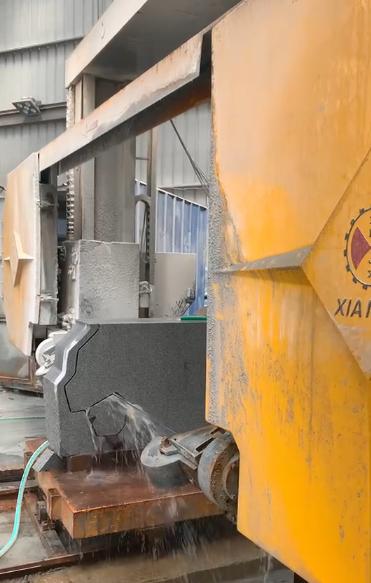

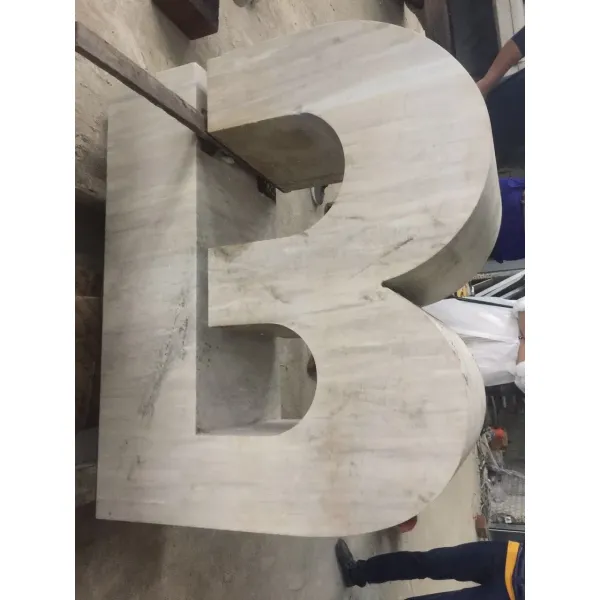

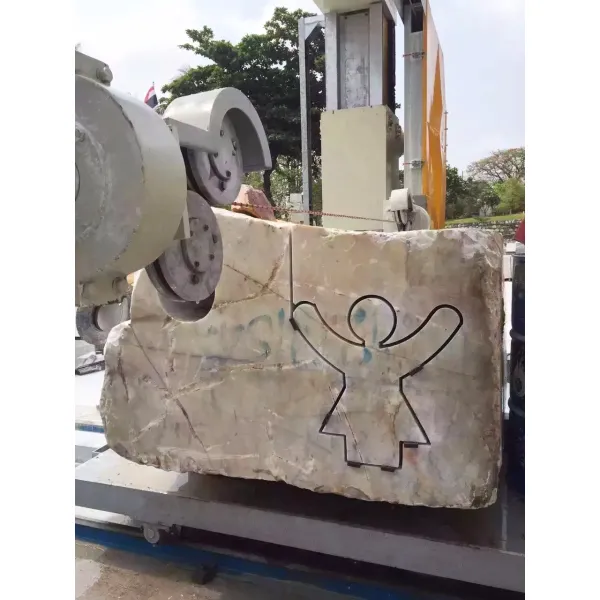

CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.

1. It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
2. The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the conbine of lead screw and double nuts.
3. Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel,guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
4. Worktable is running by lead screw and railway.
5. There has automatic alarm if wire broken.
6. Aluminum wheel diameter is 1600mm.One fly wheel slide through sheave, oil pump control rope tension.

Parameter	Unit	CNC-2000	CNC-2500	CNC-3000
Max processing size	mm	300020001500	300025001500	300030001500
Dimension of worktable	mm	2500*1300	2500*1300	2500*1300
Main motor	kw	7.5	7.5	7.5
Gross motor	kw	11	11	11
Outline dimension	mm	650063003800	700063003800	750063003800
Gross weight	kg	5000	5500	6000
Water consumption	m³/h	4	4	4

SIMILAR PRODUCT

Fujian Jinjiang Xianda Machinery Co.Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine,wire saw stone cutting machine,block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.

With the rapid development of company ,we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep " Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.

CNC Diamond Wire Saw Machine for Marble Circular Plate Digital Letter Cutter

Exhibition

Manufacturer Profiles	Quality Control
We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985. We own 70% China market share at special shape stone cutting machine series. *We are a company which is specially for producing stone machines for exporting.	We have our own experienced QC. Our machine will be strictly inspected. *We will provide a Testing Video for each machines before shipping out if required by customer.
Delivery time	Warranty
*Based on order quantity, normally three weeks against payment.	*All the machines have one year warranty.

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* After-sales service 24 hour on line.
If you have any problem,just conact our sales department,customer service department,etc at any time.

Q:How is After-sales Service Provided?
A: Engineer can dispatch for assembly machinery

Q:Are you Manufacture Factory?
A: Yes that we are the stone machinery factory for over 30 years

Q:What about the warranty time of the machine?
A:We provide one year for parts warranty service

Q:What can this machine be used to?
A:This machine is designed to cut lines on stone like columns lines ,big arc shaped slabs and special stone shapes.
