1300*2500mm Trolley Stone Machine for Block Dividing and 4m3/H Water Consumption
1300*2500mm Trolley Stone Machine for Block Dividing and 4m3/H Water Consumption
1300*2500mm Trolley Stone Machine for Block Dividing and 4m3/H Water Consumption
1300*2500mm Trolley Stone Machine for Block Dividing and 4m3/H Water Consumption
Specifications
Brand Name :
Xianda Machinery
Model Number :
RSM-3000-15/ RSM-3500-18/21
Place of Origin :
Jinjiang, Fujian, China
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
MOQ :
1
Price :
To Be Negotiable
Packaging Details :
Plastic Package, Suitable for Sea Transportation
Delivery Time :
1 month
Payment Terms :
L/C， T/T， D/P， ，Paypal ，， Others
Supply Ability :
1000 Sets/Year
Water Consumption :
6m3/H
Key Words :
Stone Machine
Warranty Time :
One Year
Name :
Diamond Wire Saw Machine
Main Motor :
11kw
Table bearing weight :
20
Trolley size :
1300*2500mm
Max Processing Size :
3000*2500*1500mm
Wire Diameter :
0.6-1.8mm
Automation :
Automatic
Wire Length :
10m
Control Type :
CNC
Cutting Length :
20-60m
Diameter :
8.5mm to 11.5mm
Cutting Precision :
High
Spindle :
15KW
Trolley Size :
1400*2500mm
Adjustment Distance :
450mm
Gross Motor :
11kw
Control System :
PLC SYSTEM
Rated Power :
2.2kw
Description
1300*2500mm Trolley Stone Machine for Block Dividing and 4m3/H Water Consumption
Product Specifications
Attribute Value
Certification API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Water Consumption 4m3/H
Key Words Stone Machine
Warranty Time One Year
Name Diamond Wire Saw Machine
Main Motor 11kw
Table bearing weight 20
Trolley size 1300*2500mm
Max Processing Size 3000*2500*1500mm
Wire Diameter 0.6-1.8mm
Automation Automatic
Wire Length 10m
Water Consumption 6m3/H
Control Type CNC
Cutting Length 20-60m
Diameter 8.5mm to 11.5mm
Cutting Precision High
Spindle 15KW
Trolley Size 1400*2500mm
Adjustment Distance 450mm
Gross Motor 11kw
Control System PLC SYSTEM
Rated Power 2.2kw
Product Description

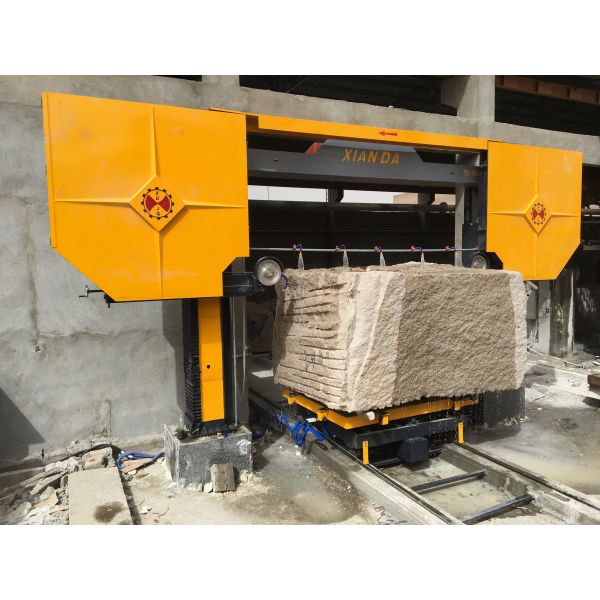

Block dividing machine
This machine adopts PLC control, lifting adopt Synchronous screw drive transmission structure, cutting stable and high efficiency during processing, it is the ideal equipment for marble and granite slicing. This machine is good quality with high processing precision.

Technical Parameters
Parameter Unit RSM-3000-15 RSM-3500-18 RSM-3500-21
Max processing size mm 3000*3000*1500 3500*3000*1500 3500*3500*2100
Wheel diameter mm 1600 1900 2200
Trolley size mm 1600*2500 1800*2500 2000*2500
Table bearing weight T 20 35 50
Wire speed m/s 0-40 0-40 0-40
Main motor kw 11 11 15
Outline dimension mm 8800*5500*3800 9300*5900*4500 9800*6800*5300
Gross weight kg 6000 7500 9000
Water consumption m³/h 5 6 6
Support and Services
  • Installation and commissioning of the Diamond Wire Saw Machine
  • Operator training and certification
  • Regular maintenance and repair services
  • On-site troubleshooting and problem-solving
  • Remote support and troubleshooting via phone or email

Our team of experienced technicians and engineers are dedicated to providing timely and effective technical support and services to our customers. We are committed to ensuring that our customers' machines are always running at optimal performance levels.
