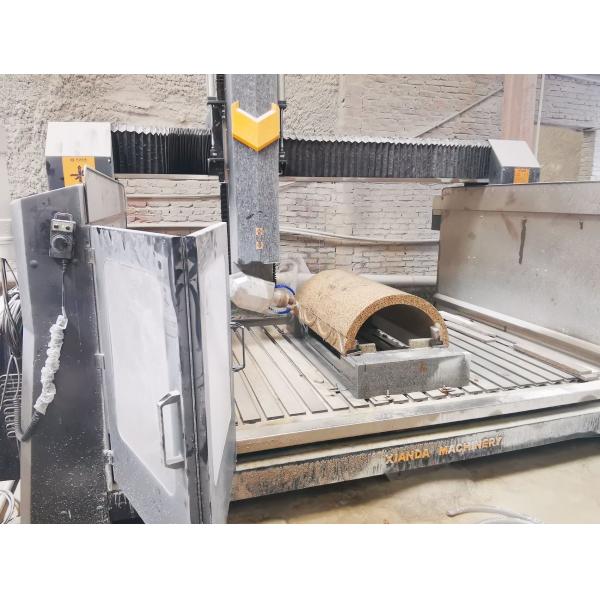

Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Specifications
Brand Name :
Xianda Machinery
Model Number :
Carving machine
Place of Origin :
Jinjiang, Fujian, China
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
MOQ :
1
Price :
To Be Negotiable
Packaging Details :
Plastic Package, Suitable for Sea Transportation
Delivery Time :
1 month
Payment Terms :
L/C， T/T， D/P， ，Paypal ，， Others
Supply Ability :
1000 Sets/Year
Material :
Stone
Positioning Accuracy :
0.02mm
Outline Dimension :
2360mm*3600mm*2200mm
Control System :
CNC
Air Speed :
15m/min
Spindle Power :
5.5KW
Weight :
1000kg
Type :
CNC Machine
Description
Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Product Specifications
Attribute Value
Material Stone
Positioning Accuracy 0.02mm
Outline Dimension 2360mm*3600mm*2200mm
Control System CNC
Air Speed 15m/min
Spindle Power 5.5KW
Weight 1000kg
Type CNC Machine
Product Overview

The Xianda 4-Axis High Precision CNC Carving Machine represents advanced computer numerical control technology for stone processing applications. Designed specifically for working with granite, marble, and sandstone, this machine delivers exceptional precision with 0.02mm positioning accuracy and powerful 5.5KW spindle performance.

Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power Xianda 4 Axis High Precision CNC Carving Machine With 0.02mm Positioning Accuracy And 5.5KW Spindle Power
Technical Parameters
Parameter Unit ACM-2515-1Q ACM-3015-2Q
Spindle type / 1 Tilting head 2 Tilting head
Dimension of worktable mm 2500*1500 3000*1500
Feed height mm 650 650
Air speed m/min 13 12
Number of spindles pcs 1 2
Spindle power kw 7.5 7.5*2
Outline dimension mm 3700*2410*3500 4200*2410*3500
Water consumption m³/h 1 2
Applications

This high-precision CNC stone carving machine is engineered for diverse stone processing applications including:

  • Architectural stone decoration and facades
  • Precision stone carving and engraving
  • Tombstone and memorial processing
  • 3D stone sculptures and artistic engravings
  • Monument and signage production

The machine's intuitive operation makes it suitable for both professional stone workshops and industrial manufacturing facilities.

Support & Services
  • Professional installation and machine commissioning
  • Comprehensive operator training and maintenance guidance
  • Scheduled maintenance programs for optimal performance
  • 24/7 technical support and troubleshooting
  • Software updates and technology upgrades
  • Custom engineering solutions for specialized requirements
Packaging & Shipping
Standard Package Includes:
  • Complete CNC Stone Carving Machine
  • Control System with software
  • Comprehensive User Manual and Installation Guide
Shipping Information:
  • Shipping Method: Sea Freight (standard)
  • Estimated Delivery: 30-45 days after order confirmation
  • Departure Port: Xiamen Port, China
  • Insurance: Full coverage included
