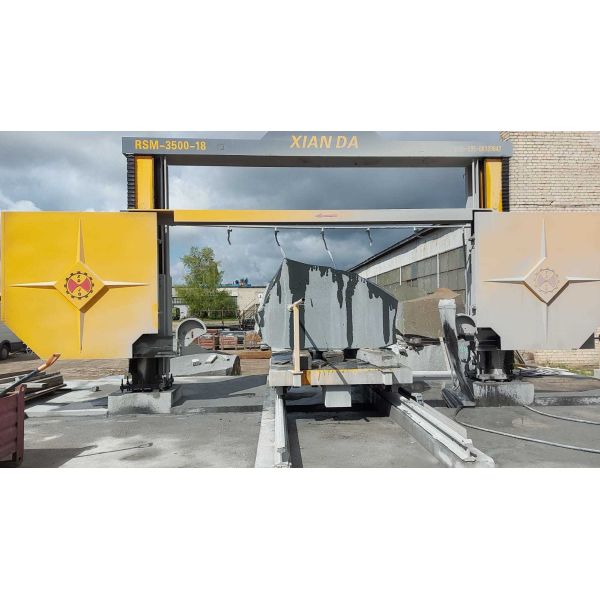

PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing
PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing
PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing
PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing
PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing
PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing
PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing
PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing
Specifications
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Packaging Details :
Suitable for sea/air/land/rail transportation.
Main Motor Power :
11 kW and 15 kW
Industrial Construction :
heavy-duty industrial use with robust construction and reliable performance
Material :
Marble & Granite Slicing
Table Bearing Weight :
20 T or 35 T
Gross Weight :
6000 kg, 7500 kg, and 9000 kg.
Outline Dimensions :
9800*7800*5300mm
Brand Name :
Xianda Machinery
Max Processing Size :
3000×3000×1500 mm, 3500×3000×1800 mm, and 3500×2100 mm.
Place of Origin :
Jinjiang, Fujian, China
Delivery Time :
1 Month
Wheel Diameter Options :
1600 mm, 1900 mm, and 2200 mm
Water Consumption :
3 or 4 m³/h
MOQ :
1 Set
Price :
To Be Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,
Wire Speed Range :
20 to 40 m/s
Supply Ability :
1000 Sets/Year
Model Number :
RSM-3000-15A/B RSM-3500-18/21/22/A/B
transmission structure :
Synchronous Screw/Shaft Drive Transmission
Trolley Size :
1600×2500 mm and 1800×2500 mm.
Control System :
PLC control system
Description
Block Dividing Machine PLC Control For Cutting Marble And Granite
RSM Series Diamond Wire Saw Machine Overview
Our RSM Series diamond wire saw machine delivers precision and efficiency for stone processing operations. Engineered with advanced PLC control and synchronous screw drive transmission, this equipment provides stable, high-performance cutting for marble and granite slicing applications.
Key Features & Benefits
  • PLC Control System: Ensures precise and stable operation for consistent cutting results
  • Synchronous Screw Drive Transmission: Delivers reliable lifting performance and smooth cutting operation
  • High Processing Precision: Provides exceptional accuracy for superior finished product quality
  • Heavy-Duty Construction: Built for durability and long-term performance in demanding industrial environments
  • Versatile Model Options: Multiple configurations available to meet specific processing requirements
PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing PLC Control Diamond Wire Saw Machine with Synchronous Screw Drive for 3000×3000×1500 mm Marble and Granite Block Dividing
Technical Specifications
Parameter Unit RSM-3000-15A/B RSM-3500-18A/B RSM-3500-21A/B
Max processing size mm 3000×3000×1500 3500×3000×1800 3500×2100
Wheel diameter mm 1600 1900 2200
Trolley size mm 1600×2500 1800×2500 2000×2500
Table bearing weight T 20 35 50
Wire speed m/s 20~40 20~40 20~40
Main motor power kW 11 11 15
Outline dimension A mm 8800×5500×3800 9300×5900×4500 9800×6800×5300
Outline dimension B mm 8800×6800×3800 9300×7200×4500 9800×7800×5300
Gross weight kg ≈6000 ≈7500 ≈9000
Water consumption m³/h ≈3 ≈4 ≈4
Applications
This industrial diamond wire saw machine is specifically designed for:
  • Marble slicing operations
  • Granite slicing applications
  • Heavy-duty stone processing
  • Industrial manufacturing environments
Why Choose Our RSM Series?
  • High Efficiency: Stable cutting performance reduces processing time and increases production output
  • Precision Engineering: Delivers consistent, high-quality results for every cutting project
  • Durable Design: Built to withstand the demands of continuous industrial operation
  • Customizable Options: Multiple models available to meet specific processing requirements
