Specifications
Brand Name :
XIANDA MACHINERY
Model Number :
DRM-300
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Place of Origin :
Jinjiang,Fujian,China
MOQ :
1 SET
Price :
To Be Negotiable
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
1000 Sets/Year
Delivery Time :
1 Month
Packaging Details :
Wire rope lashing,Suitable for sea transportation.
Color :
Black and Yellow,Optional,Customized
Grade :
A-GRADE,Customer's Request
Model :
DRM-300
Key Words :
Vertical Drilling Machine,Stone Core Drilling Machine, Tombstone Hole Drill
Power Source :
Electric
Weight :
1300KG
Control System :
Manual
Production Capacity :
1000 Sets/Year
Application :
Drilling Stone
Description

DRM-300 Vertical Drilling Machine

Precision Vertical Driller for Tombstones, Lanterns & Crafts – Ø300 mm × 700 mm Stroke

1. Machine Overview

The DRM-300 is a vertical-spindle drilling machine built for deep, accurate holes in tombstones, address stones, lantern blanks and craft blocks.
With Ø300 mm max bit, 700 mm lift and 7.5 kW direct motor, it drills straight, chip-free holes 10× faster than hand-held units—ideal for single-piece or small-batch stone workshops.


Why DRM-300?

Feature Benefit
Ø300 mm drilling capacity Accepts large core bits, countersinks and lantern hollow bits
700 mm vertical stroke Drills through 650 mm stone in one pass
Cross-beam lifting Bit approaches stone, not table—safer, faster setup

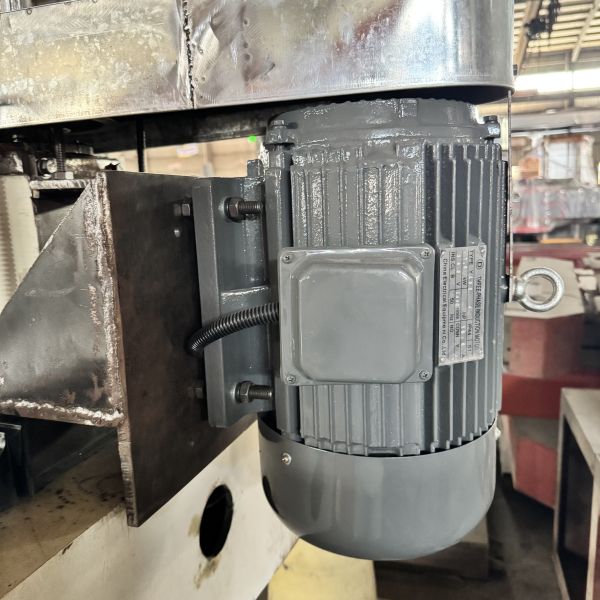

7.5 kW main motor Constant torque under full load, no belt slip
2 m³/h wet system Cools bit, removes sludge, extends tool life

Quick Specs

Parameter DRM-300
Max drilling diameter Ø300 mm
Cross-beam lift 700 mm
Table size 500 × 400 mm (standard)
Main motor 7.5 kW, 3-phase, 380 V
Spindle speed 480–1 400 rpm (inverter)
Water consumption 2 m³/h (recycled)
Dimensions 1 300 × 800 × 2 500 mm
Weight ~1 300 kg



DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor

DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor


DRM-300 Vertical Drilling Machine with Ø300 mm Drilling Capacity 700 mm Vertical Stroke and 7.5 kW Main Motor

2. Ideal Applications

  • Tombstone flower holes
  • Address stone cores
  • Lantern craft
  • Countertop faucet holes
  • Monument base anchors
Materials: granite, marble, basalt, engineered stone, limestone.

3. Workflow (1 Operator)

  1. Place stone on table, clamp manually
  2. Select speed on inverter panel
  3. Lower bit with hand-wheel until contact
  4. Start spindle + water – automatic feed completes hole
  5. Lift bit, remove stone – core falls out

4. Package, Delivery & Warranty

  • Export crate: plywood + steel frame
  • Delivery: 10 days (stock) / 20 days (custom colour)
  • Warranty: 12 months for parts
  • Installation: video-guide + remote support; on-site service optional
  • Spare parts: 48 h dispatch from regional warehouse

8. Pricing, MOQ & Shipping

表格
复制
Item Detail
MOQ 1 (one) machine
Shipping Sea freight to nearest port included
Incoterms FOB, CIF, DDP optional
Lead time 10 days stock / 20 days custom
Payment T/T 30 % deposit, 70 % before shipment; L/C at sight accepted
