Diamond Single Wire Stone Cutting Machine for Marble and Granite
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Specifications
Brand Name :
Xianda Machinery
Model Number :
CNC-2000
Certification :
CCC, SONCAP, GOST, ISO, CE
Place of Origin :
Jinjiang, Fujian, China
MOQ :
1
Price :
To Be Negotiable
Payment Terms :
L/C,D/A,D/P,,T/T
Supply Ability :
1000 Sets/Year
Delivery Time :
30 dyas
Description
Diamond Single Wire Stone Cutting Machine for Marble and Granite
Product Overview

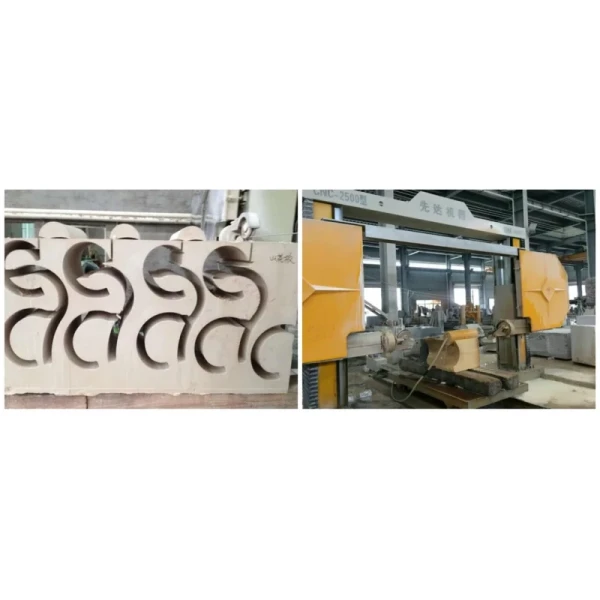

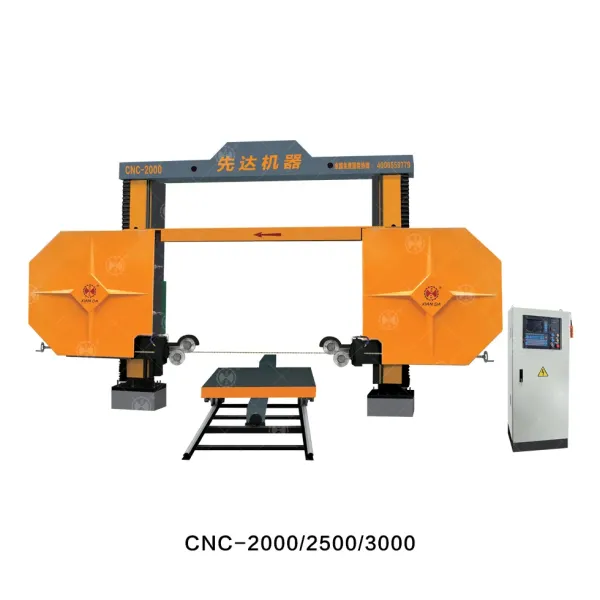

CNC-2000 diamond wire saw stone cutting machine is an excellent solution for irregular stone processing. Designed for easy operation, it can cut various special shapes with precision.

Key Features
  • Heavy load bearing structure with four orbits on each upright column
  • Synchronized lifting system with enhanced accuracy
  • CNC-controlled guide wheel system for precise cutting
  • Worktable runs on lead screw and railway system
  • Automatic wire break alarm system
  • 1600mm diameter aluminum wheel with oil pump controlled rope tension
Diamond Single Wire Stone Cutting Machine for Marble and Granite Diamond Single Wire Stone Cutting Machine for Marble and Granite Diamond Single Wire Stone Cutting Machine for Marble and Granite
Technical Specifications
Parameter Unit CNC-2000 CNC-2500 CNC-3000
Max processing size mm 3000*2000*1500 3000*2500*1500 3000*3000*1500
Dimension of worktable mm 2500*1300 2500*1300 2500*1300
Main motor kw 11 11 11
Outline dimension mm 6800*6300*3800 7800*6300*3800 8800*6300*3800
Gross weight kg 6000 6250 6500
Water consumption m3/h 4 4 4
Basic Information

Model No.: CNC-2000

Applications: Machinery & Hardware, Art & Craft, Construction, Stone Industry

Source Voltage: 380V

Automation: Automatic

Certifications: CCC, SONCAP, GOST, ISO, CE, SGS

Warranty: One Year

Production Capacity: 1000 Sets/Year

About Xianda Machinery
Diamond Single Wire Stone Cutting Machine for Marble and Granite

Established in 1985, Fujian Jinjiang Xianda Machinery Co., Ltd specializes in developing and manufacturing stone processing machinery including column making machines, wire saw stone cutting machines, and profiling stone cutting machines.

With ISO9001 certification and CE compliance, we maintain our commitment to advanced technology and high quality. Our "Xianda" brand machines are recognized for their reliability and performance in stone processing applications.

Our Services
Diamond Single Wire Stone Cutting Machine for Marble and Granite Diamond Single Wire Stone Cutting Machine for Marble and Granite
  • Comprehensive machine installation and operation training
  • Overseas engineering support available
  • 24-hour online after-sales service
