Automatic Stone Slab Cutting and Slicing Machine for Marble, Granite and Natural Stone
Automatic Stone Slab Cutting and Slicing Machine for Marble, Granite and Natural Stone
Specifications
Model Number :
SD-1200
Transport Package :
Load In A 20 Feet Container
MOQ :
1 SET
Packaging Details :
Plastic Package, Suitable for Sea Transportation
Color :
Blue and Yellow
Wire Saw :
0-40m/s
Payment Terms :
L/C,D/A,D/P,T/T
Dimension Of Worktable :
1800mm*2500mm
Cutting Technology :
Diamond Wire Cutting Technology
Head Rotation Degree :
0°-360°
Price :
To Be Negotiable
Type :
Band Saw
Use :
block cutter,granite and marble
Supply Ability :
1000 Sets/Year
Cutting Accuracy :
±0.1 mm
Machine Weight :
1500-3000 kg
Power Source :
Electric
Place of Origin :
Jinjiang, Fujian, China
Control :
CNC
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Keyword :
CNC automatic cutting saw machine
Brand Name :
Xianda Machinery
Voltage :
380V/50Hz or customizable
Condition :
New
Description
Automatic Stone Slab Cutting and Slicing Machine for Marble, Granite and Natural Stone
Advanced automatic stone slab cutting and slicing machine designed for processing marble, granite, and natural stone materials with precision and efficiency.
Main Features

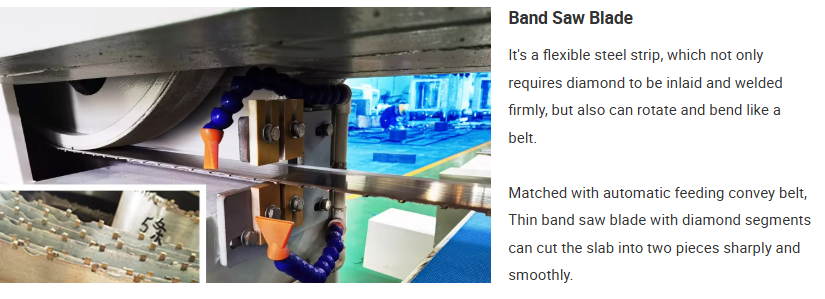

  • Automatic Constant-Pressure Hydraulic Blade Tensioning The saw blade features an automatic constant-pressure hydraulic tensioning system that ensures uniform tension and stable pressure during operation. This design extends blade service life, improves cutting stability, and simplifies machine operation.
  • PLC-Controlled Automatic Thickness Adjustment Slicing thickness can be easily set through the touchscreen interface and automatically controlled by the PLC system. This intelligent control provides convenient operation, improves cutting consistency, and significantly increases production efficiency.
Automatic Stone Slab Cutting and Slicing Machine for Marble, Granite and Natural Stone Automatic Stone Slab Cutting and Slicing Machine for Marble, Granite and Natural Stone Automatic Stone Slab Cutting and Slicing Machine for Marble, Granite and Natural Stone Automatic Stone Slab Cutting and Slicing Machine for Marble, Granite and Natural Stone
Technical Specifications
Maximum Cutting Width 1250mm
Maximum Cutting Thickness 100mm
Conveyor Speed 0-177mm/min
Large Wheel Diameter 1100mm
Band Saw Length 8300mm
Wire Saw Length 8200mm
Blade Thickness 2-7mm
Rope Diameter 6.3-7.3mm
Main Motor Power 7.5KW
Total Power 8.99KW
Water Consumption 2 cubic meters/hour
Total Weight 2.5 tons
Dimensions 3500*3700*2200mm
