CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
Specifications
Model Number :
BLMM-1800 MAX
Name :
Four-slice Edge Cutting Machine Column Slab
MOQ :
1 UNIT
Delivery Time :
45 days
Warranty :
12 months for parts
Payment Terms :
T/T
Price :
16000 USD/SET
Water consumption :
3m³/h
Supply Ability :
10 SETS 2 MONTHS
Certification :
CE, ISO9001
Outline dimension :
4350x6300x3600
Place of Origin :
Quanzhou City, Fujian Province
Gross power :
24kw
Brand Name :
Xianda
Description
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
Product Overview

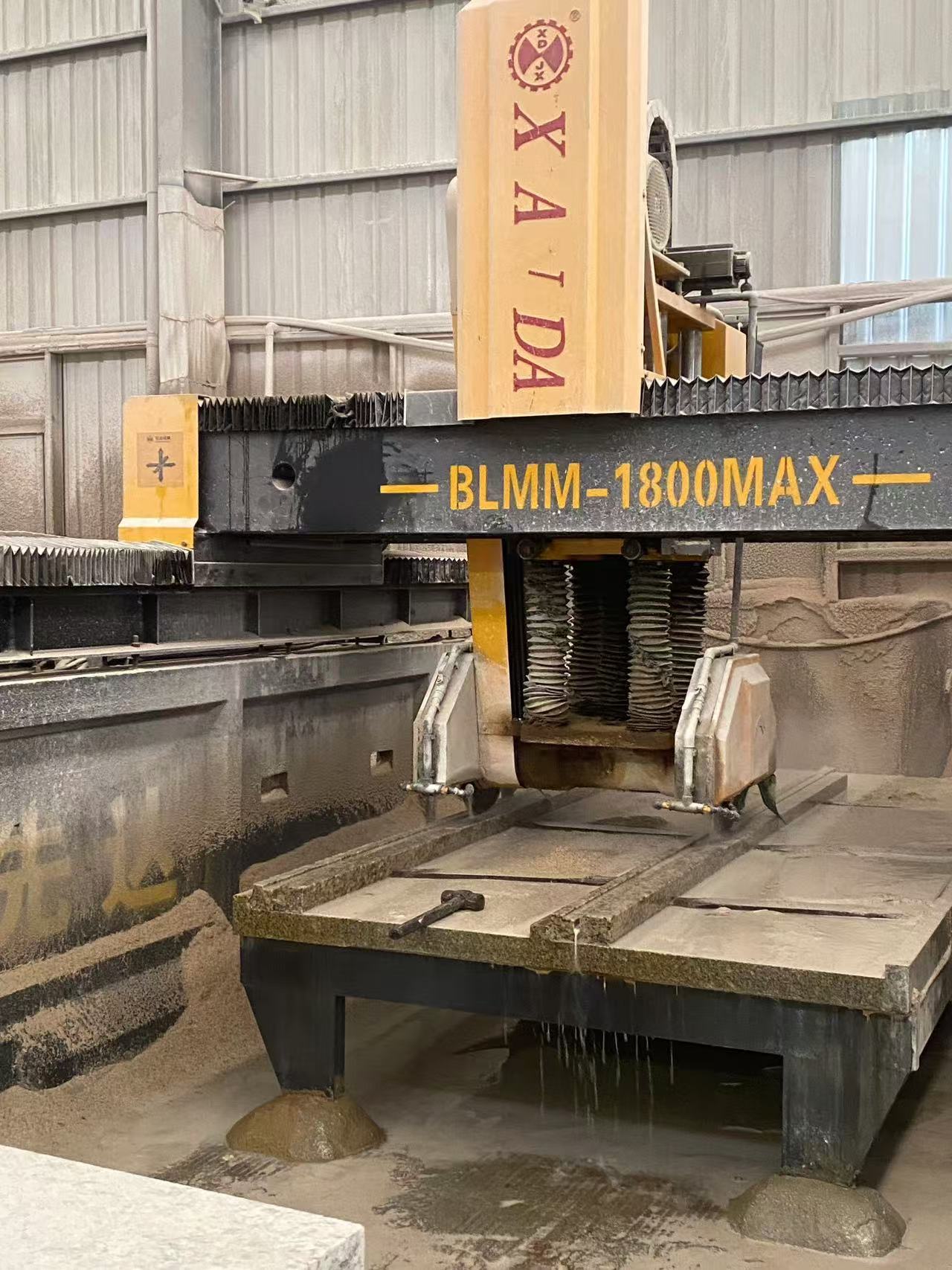

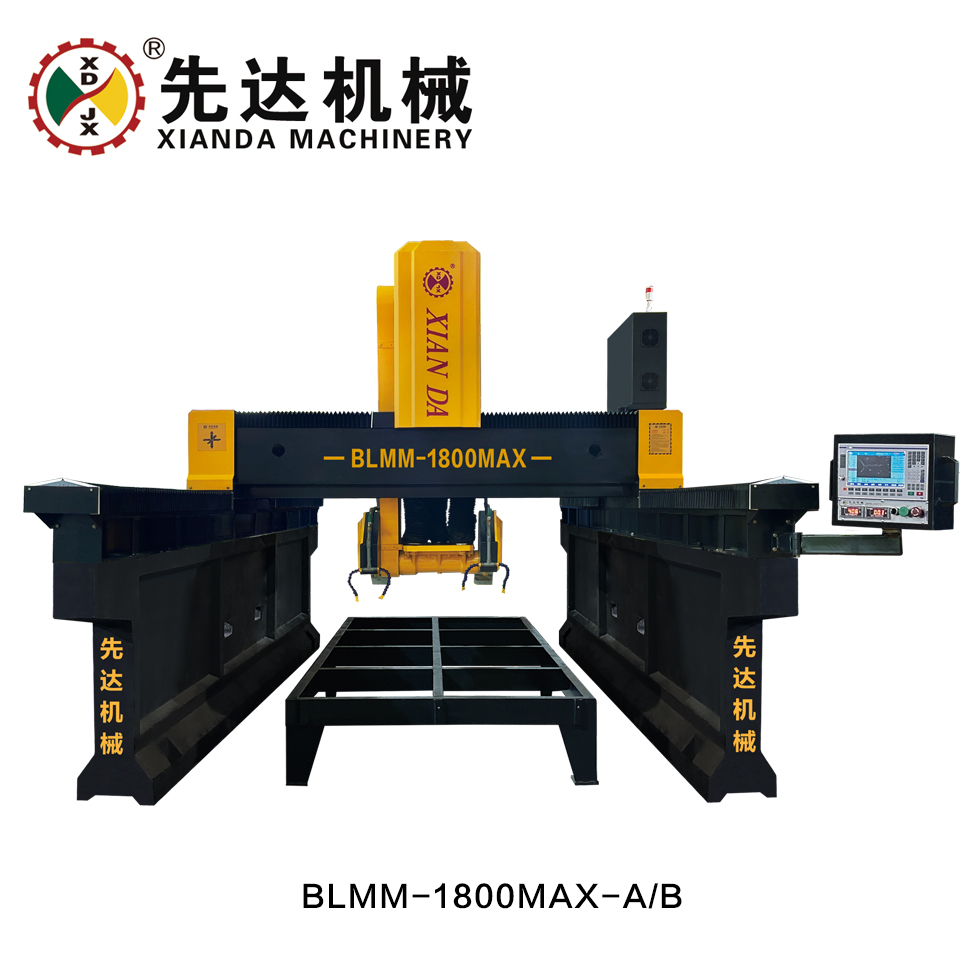

Xianda CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite. This 3-axis CNC system machine performs rough cutting, fine cutting, and finish milling operations. Featuring a bridge-type structure with blade lifting via guide pillar and copper bush, it combines profiling machine power with linear guide ball screw rod accuracy. With high efficiency, precision, and stability, it's the ideal equipment for processing linear, square baluster, and special shapes of kerbstone.

Key Features
  • CNC Control System
  • Versatile processing capabilities for various stone shapes
  • High-quality construction with exceptional processing precision
  • Robust design for industrial stone processing applications
Technical Specifications
Blade diameter φ400-700mm
Lifting travel 600mm
Trolley size 1800mm x 3500mm
Max processing length 3500mm
Main motor 18.5kw/22kw
Gross power 24kw/27.5kw
Outline dimension 4350 x 6300 x 3600
Y axis transmission structure Walking wheel/Linear Guide
Y axis transmission mode Single/Dual Y axis drive
Water consumption 3m³/h
Product Gallery
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
Factory Overview
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
Certifications
CNC Bridge Type Linear Cutting and Milling Machine for Marble Granite
Our Services
  • Machine testing videos and thorough inspection before shipping
  • 32 years of manufacturing experience with over 70% market share in China for special shape stone cutting machines
  • Top 5 stone cutting machine manufacturer with ISO & CE certification
  • Global reach with products sold to more than 20 countries
  • Use of top brands to ensure high quality components
  • Competitive pricing and volume discounts available
  • Strong supply capacity with over 1000 sets produced annually
  • 24/7 online after-sales service and technical support
  • Professional installation guidance and operator training
  • Complaint resolution and quality assurance services
Frequently Asked Questions
How to place order to your company?
1. Inquiry - Professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales sends Proforma Invoice with seal
4. Customer makes deposit payment and sends bank receipt
5. Sales confirms receipt and arranges production with estimated timeline
How is After-sales Service Provided?
Engineer can be dispatched for machinery assembly and technical support.
Are you Manufacture Factory?
Yes, we are the stone machinery factory established since 1985, with 41 years of manufacturing experience.
What about the warranty time of the machine?
We provide one year parts warranty service.
What can this machine be used for?
This machine is designed to cut lines on stone including columns, big arc shaped slabs, and special stone shapes.
