Horizontal Core Drilling Machine For Marble Granite Processing
Horizontal Core Drilling Machine For Marble Granite Processing
Horizontal Core Drilling Machine For Marble Granite Processing
Horizontal Core Drilling Machine For Marble Granite Processing
Horizontal Core Drilling Machine For Marble Granite Processing
Horizontal Core Drilling Machine For Marble Granite Processing
Specifications
Model Number :
THCD-5000
Name :
Horizontal Core Drilling Machine
MOQ :
1 UNIT
Delivery Time :
45 days
Gross weight :
5000kg
Payment Terms :
T/T
Ourline dimension :
15500 x 1600 x 1500
Price :
22000 USD/SET
Water consumption :
4m³/h
Supply Ability :
10 SETS 2 MONTHS
Certification :
CE, ISO9001
Warranty :
12 months for parts
Brand Name :
Xianda
Place of Origin :
Quanzhou City, Fujian Province
Gross power :
30kw
Description

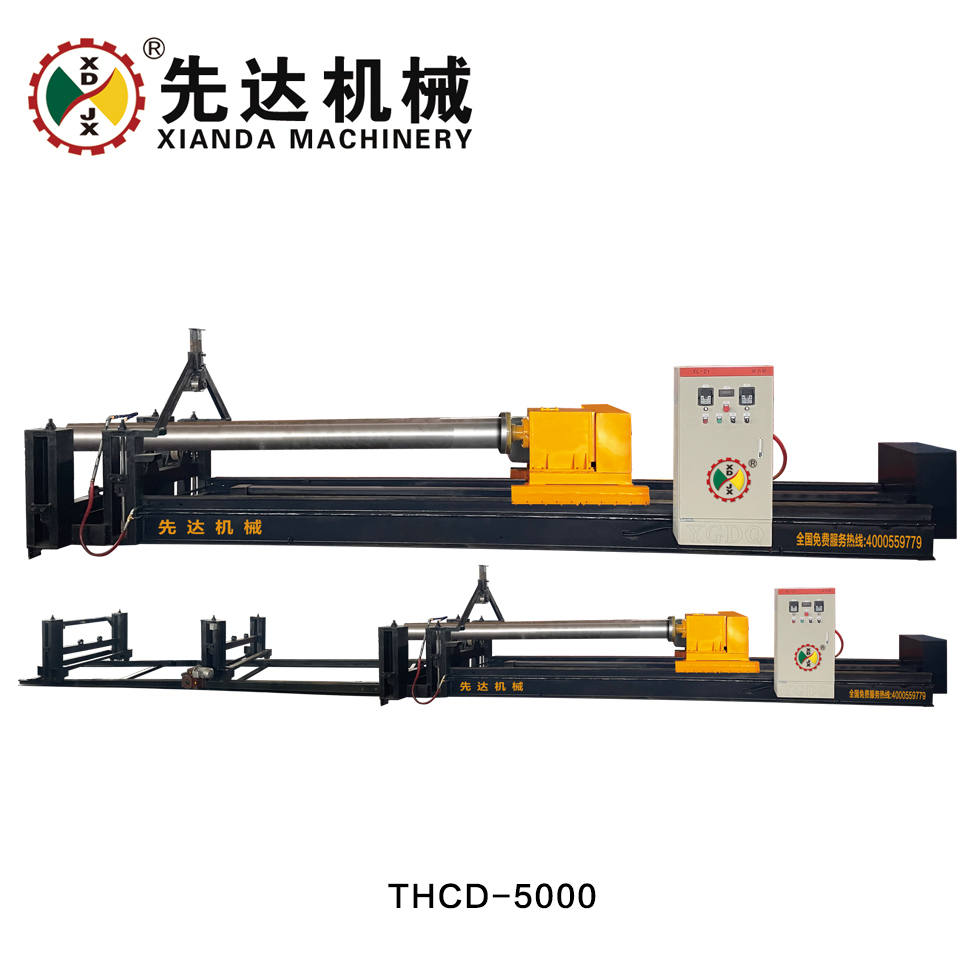

Horizontal Core Drilling Machine For Marble Granite Processing
Product Overview

This horizontal core drilling machine features a large torque oblique gearbox for enhanced durability. With computer-automated control loading and third-order automatic track transmission, it securely fixes stone materials while automatically pulling cores. The drilling process is exceptionally smooth with minimal noise, low power consumption, and high efficiency, making it the ideal solution for drilling horizontal solid columns.

Key Features
  • PLC control system for precise operation
  • Versatile processing capabilities for various stone shapes
  • High-quality construction with exceptional processing precision
  • Robust design built for industrial stone processing applications
Technical Specifications
Parameter THCD-5000
Max diameter φ600mm
Main motor 30kw
Max processing length 5000mm
Gross weight 5000kg
Outline dimension 15500 x 1600 x 1500
Water consumption 4m³/h
Product Gallery
Horizontal Core Drilling Machine For Marble Granite Processing Horizontal Core Drilling Machine For Marble Granite Processing
Factory Overview
Horizontal Core Drilling Machine For Marble Granite Processing Horizontal Core Drilling Machine For Marble Granite Processing Horizontal Core Drilling Machine For Marble Granite Processing Horizontal Core Drilling Machine For Marble Granite Processing
Certifications
Horizontal Core Drilling Machine For Marble Granite Processing
Our Services
  • Machine testing videos and thorough inspection before shipping
  • 32 years of manufacturing experience with over 70% market share in China for special shape stone cutting machines
  • Top 5 stone cutting machine manufacturer with ISO & CE certification
  • Global reach with products sold to more than 20 countries
  • Use of top brands to ensure high quality components
  • Competitive pricing and volume discounts available
  • Strong supply capacity with over 1000 sets produced annually
  • 24/7 online after-sales service and technical support
  • Professional installation guidance and operator training
  • Complaint resolution and quality assurance services
Frequently Asked Questions
How to place order to your company?
1. Inquiry - Professional quotation
2. Confirm price, lead time, logo, payment terms
3. Xianda sales sends Proforma Invoice with seal
4. Customer makes deposit payment and sends bank receipt
5. Sales confirms receipt and arranges production with estimated timeline
How is After-sales Service Provided?
Engineer can be dispatched for machinery assembly and technical support.
Are you Manufacture Factory?
Yes, we are the stone machinery factory established since 1985, with 41 years of manufacturing experience.
What about the warranty time of the machine?
We provide one year parts warranty service.
What can this machine be used for?
This machine is designed to cut lines on stone including columns, big arc shaped slabs, and special stone shapes.
