Specifications
Cutting Ability :
High Speed
Place of Origin :
CHINA
Working Wire Speed :
0-40 m/s
Model Number :
CNC-2500
Spindle :
11KW
MOQ :
1
Delivery Time :
25-35 Work days
Drive System :
High Precision Reducer & Servo Motor
Payment Terms :
T/T
Function :
STONE CUTTING,Quarry stone
Origin :
Fujian, China
Price :
FOBXIAMEN: USD40000
Main Power :
11kW
Supply Ability :
2000SETS/YEAR
Worktable bearing weight :
Up to 20 T
Beads Diameter :
8.8mm-11.5mm
Brand Name :
xianda
Framematerial :
High-strength steel
Certification :
CE
Outline Dimension :
88006300*3800mm
Diameter :
8.5mm to 11.5mm
Max processing size :
3000*3000*1500mm
Max processing size- :
3000*3000*1500mm
Description
CNC Column Granite Marble Profile Cutting Diamond Wire Saw Machine Stone Cutting Machine
CNC PROFILING WIRE SAW MACHINE — HANDLES OVERSIZED CURVED, COLUMN & TOMBSTONE PRODUCTS (3000*3000*1500MM)
Application

CNC-2000/2500/3000 Mono wire cutting machine (rope saw) function: Cutting column slabs, semi circular slabs, English letters, and other diversified complicated special shape. Materials the wire saw machine can cut include marble, granite, natural stone etc.

Wire saw machine (Rope saw), mono wire cutting machine, cutting column / cylinder slabs.
Marble Granite CNC Diamond Wire Saw Stone Cutting Machine CNC-2000/2500/3000 adopts CNC systerm, Four-Axis linkage, which can process the circular stone slab, roman column, numeral, letter, Chinese characters and other designed shapes.

  • It has heavy load bearing structure, four orbits on each upright column, adjusted the balance by the rollers, with less friction and higher precision.
  • The left and right frame achieve synchronized lifting by steering equipment on the upper frame. The lifting accuracy increased by the combine of lead screw and double nuts.
  • Cantilever part, firstly the lead screw and pole adjust the distance of guide wheel, guide wheel is controlled by CNC. Secondly in order to make the diamond wire rope cutting direction coincidence, reducer control the guide wheel rotating angle.
  • Worktable is running by lead screw and railway.
  • There has automatic alarm if wire broken.
  • Aluminum wheel diameter is 1600mm. One fly wheel slide through sheave, oil pump control rope tension.
Keywords: Stone machine, stone cutting machine, marble cutter, wire cutting machine, mono wire cutting machine
Technical Parameter
ParameterUnitCNC-2000CNC-2500CNC-3000

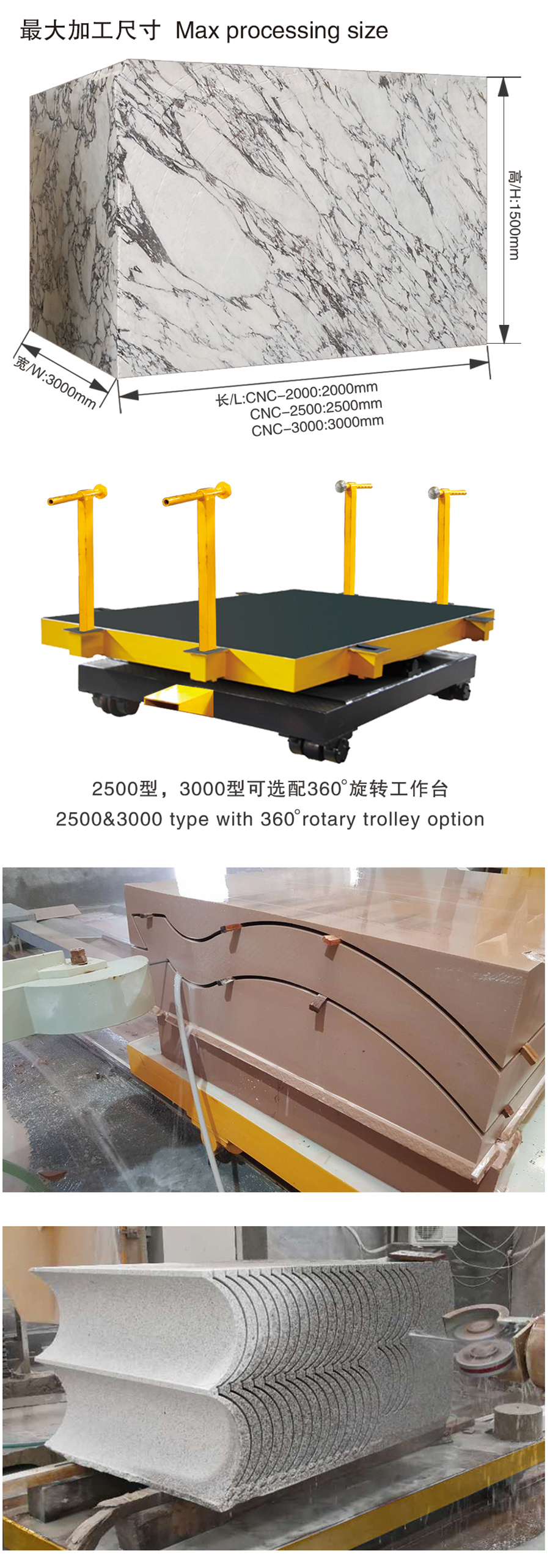

Max processing size (L*W*H)mm3000*2000*15003000*2500*15003000*3000*1500
Dimension of worktablemm2500*13002500*13002500*1300
Main motorKw7.57.57.5
Gross motorKw111111
Outline dimension(L*W*H)mm6500*6300*38007000*6300*38007500*6300*3800
Gross weightKg500055006000
Water consumptionM3/h444
Xianda machinery

Fujian Xianda Machinery Co. Ltd was established in 1985 and have been dedicated to the development and producing of a serious of column making machine, wire saw stone cutting machine, block trimming machine, bridge saw cutting machine, profiling stone cutting machine etc.
With the rapid development of company, we have passed the ISO9001 verifing, CE, and won many honory tiles include International Gold Plant Quality Award etc. We keep "Advanced Tecnology and High Quality" as our aim. We have developed a range of 'Xianda' Brand special stone shape processing machines.
CNC PROFILING WIRE SAW MACHINE — HANDLES OVERSIZED CURVED, COLUMN & TOMBSTONE PRODUCTS (3000*3000*1500MM)
CNC PROFILING WIRE SAW MACHINE — HANDLES OVERSIZED CURVED, COLUMN & TOMBSTONE PRODUCTS (3000*3000*1500MM)
CNC PROFILING WIRE SAW MACHINE — HANDLES OVERSIZED CURVED, COLUMN & TOMBSTONE PRODUCTS (3000*3000*1500MM)
CNC PROFILING WIRE SAW MACHINE — HANDLES OVERSIZED CURVED, COLUMN & TOMBSTONE PRODUCTS (3000*3000*1500MM)
CNC PROFILING WIRE SAW MACHINE — HANDLES OVERSIZED CURVED, COLUMN & TOMBSTONE PRODUCTS (3000*3000*1500MM)
Our after-sale service Team

We are a vigorous and creative team with great passion, we are always trying to provide better service for you, if you meet any problems about stone cutting machine, please contact us at any time suits you.
Other stone cutting machines we produce: Diamond wire saw machine, bridge cutting machine, bridge saw and a series of stone machine for special shape processing.

FAQ
1. Manufacturer Profiles

We are the Top 10 stone cutting machine manufacturer with ISO & CE certificate since 1985.
We own 70% China market share at special shape stone cutting machine series.
We are a company which is specially for producing stone machines for exporting.

2. Quality Control

We have our own experienced QC.
Our machine will be strictly inspected.
We will provide a Testing Video for each machines before shipping out if required by customer.

3. Delivery time

Based on order quantity, normally three weeks against payment.

4. Warranty

All the machines have one year warranty.

5. After Services

Our marketing team will response for your question within 24 hours.
Technical support will be available in any time.
Free replacement will provide once the failure confirmed caused by our product quality.

6. Contact

 Add: Anqi Road, Wuli Industrial Park, Jinjiang City, Fujian, China.
