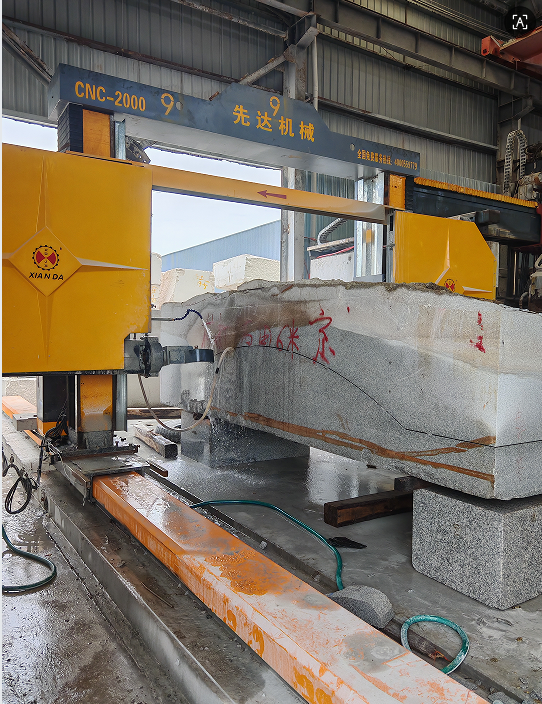

CNC Control Diamond Wire Saw Machine With High Cutting Precision And Four-Spindle Linkage For Stone Cutting
CNC Control Diamond Wire Saw Machine With High Cutting Precision And Four-Spindle Linkage For Stone Cutting
Specifications
Model Number :
CGWS-3500-21
Payment Terms :
L/C， T/T， D/P， ，Paypal ，， Others
Control :
CNC
Max Processing Size :
3500*3500*2100mm
Transport Package :
Plastic Package, Suitable For Sea Transportation
Water Consumption :
4m3/H
Spindle :
15KW
Price :
USD50000-55000
Main Motor :
15kw
Adjustment Distance :
450mm
Table bearing weight :
15T
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Diameter :
8.5mm to 11.5mm
Wire Length :
10m
MOQ :
1
Packaging Details :
Plastic Package, Suitable for Sea Transportation
Model NO. :
CNC-2000/2500/3000
Name :
Diamond Wire Saw Machine
Brand Name :
Xianda Machinery
Delivery Time :
15-30days
Advantage :
Multi Function With Good Quality And Price
Wire Speed :
0-40m/S
Gross Motor :
11kw
Cutting Length :
20-60m
Trolley Size :
1400*2500mm
Cutting Precision :
High
Control System :
PLC SYSTEM
Place of Origin :
Jinjiang, Fujian, China
Warranty Time :
One Year
Control Type :
CNC
Rated Power :
2.2kw
Supply Ability :
1000 Sets/Year
Wire Diameter :
7.2-11mm
Automation :
Automatic
Description
CNC Control Diamond Wire Saw Machine With High Cutting Precision And Four-Spindle Linkage For Stone Cutting
CNC Control Diamond Wire Saw Machine with High Cutting Precision and Four-Spindle Linkage for Stone Cutting. Diamond Wire Saw Machine is an advanced and reliable cutting solution for special shape stone. Designed with four-spindle linkage and diamond wire saw for accurate cutting with high precision and quality. Equipped with CNC control system for easy operation.
CNC Control Diamond Wire Saw Machine With High Cutting Precision And Four-Spindle Linkage For Stone Cutting
Technical Specifications
Model Number CGWS-3500-21
Control System CNC
Certifications API, CCC, SONCAP, GOST, ISO, CE, SGS
Gross Weight 10500kg
Outline Dimension 9600*5900*6500mm
Max Processing Size 3500*2500*2100mm
Water Consumption 4m³/H
Table Bearing Weight NO WORKTABLE(OPTIONAL)
Wire Speed 0-40m/S
Production Capacity 1000 Sets/Year
Origin Jinjiang, Fujian, China
Applications
CGWS-3500-21 mono wire cutting machine (rope saw) function: Cutting column slabs, semi circular slabs, English letters, and other diversified complicated special shapes. Materials include marble, granite, natural stone, etc.
  • Europe: Stone Processing Factory & Countertop Production
  • USA: Architectural Stone & Monument Cutting Projects
  • Middle East: Luxury Hotel & Villa Stone Decoration
  • Southeast Asia: Construction Stone & Tile Manufacturing
  • Australia: Quarry & Stone Slab Processing
Key Features
Heavy load bearing structure with four orbits on each upright column
Synchronized lifting with increased accuracy via lead screw and double nuts
Cantilever part with CNC-controlled guide wheel distance and rotation angle
Worktable running by lead screw and railway
Automatic wire break alarm system
1600mm aluminum wheel diameter with oil pump controlled rope tension
Four-spindle linkage for precise cutting operations
Factory Strength
  • 40+ years manufacturing experience in stone cutting machinery
  • Export to 60+ countries worldwide
  • Professional R&D team for CNC cutting equipment
  • Full OEM/ODM customization support
  • Complete production line & strict quality inspection
  • After-sales service & technical support globally
Support & Services
We offer comprehensive technical support and service including on-site support, maintenance, troubleshooting, and repair services. Our experienced technicians are available to ensure optimal machine performance.
Packaging & Shipping
Securely packed in specialized packaging material with bubble wrap or foam protection. Shipping options include ground, air, and international shipping. All shipments are tracked and insured for safe delivery.
Frequently Asked Questions
What materials can the four-spindle diamond wire saw machine cut?
It can cut granite, marble, quartz, artificial stone, and other hard stones.
What is the cutting precision of this CNC diamond wire saw?
High cutting precision up to ≤0.01mm, ensuring smooth and accurate cutting.
Do you support customized size and parameters?
Yes, we provide full OEM/ODM customization for table size, power, voltage and functions.
Can you export to Europe, USA, Middle East and Southeast Asia?
Yes, we have rich export experience and provide safe packaging and fast delivery.
What is the advantage of four-spindle linkage?
It improves cutting efficiency, stability and multi-angle processing capacity.
