Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Specifications
Certification :
CE/ISO9001
Machine Models :
GWS-3500-22FW / CGWS-3500-22FW
Model Number :
GWS-3500-21
Machine Type :
Gantry Movable CNC Diamond Wire Saw Machine
Supply Ability :
1000 Sets/Year
Machine Weight Approx. :
10,300–10,500 kg
MOQ :
1 Set
Delivery Time :
25-35 working days after deposit
Cutting Capacity Max. :
3500 × 3500 × 2200 mm
Application Materials :
Granite, Marble, Quartz, Limestone, Sandstone & Natural Stone
Payment Terms :
L/C,D/A,D/P,T/T
Main Motor :
15 kW High-Efficiency Motor
Price :
To Be Negotiable
Wire Speed :
20–40 m/s Adjustable
Brand Name :
Xianda Machinery
Product Name :
Diamond Wire Saw Machine
Packaging Details :
Suitable for sea transport
Place of Origin :
Jinjiang, Fujian, China
Control System :
PLC or CNC Automatic Control
Description
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
CNC/Gantry Wire Saw Machine for Large Stone Block Cutting
Product Introduction

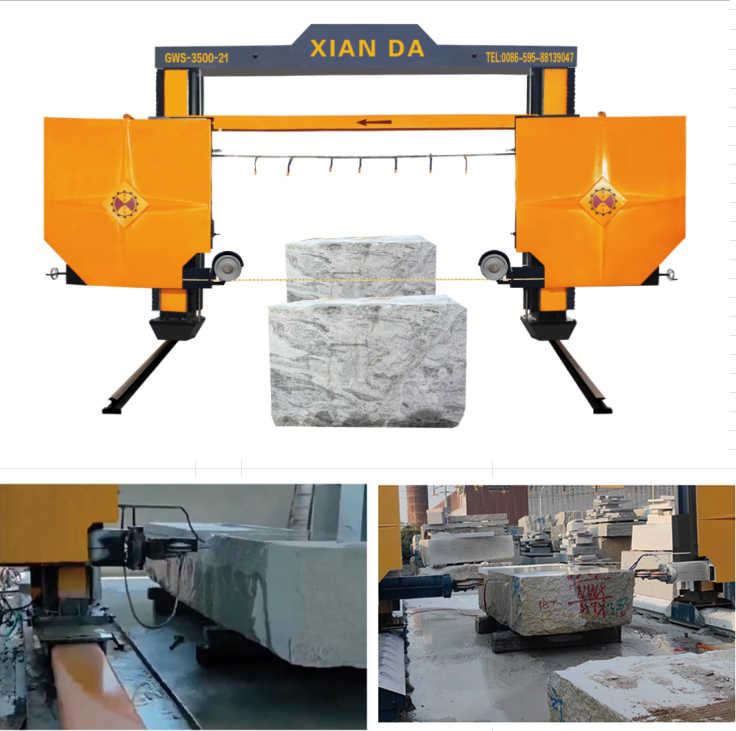

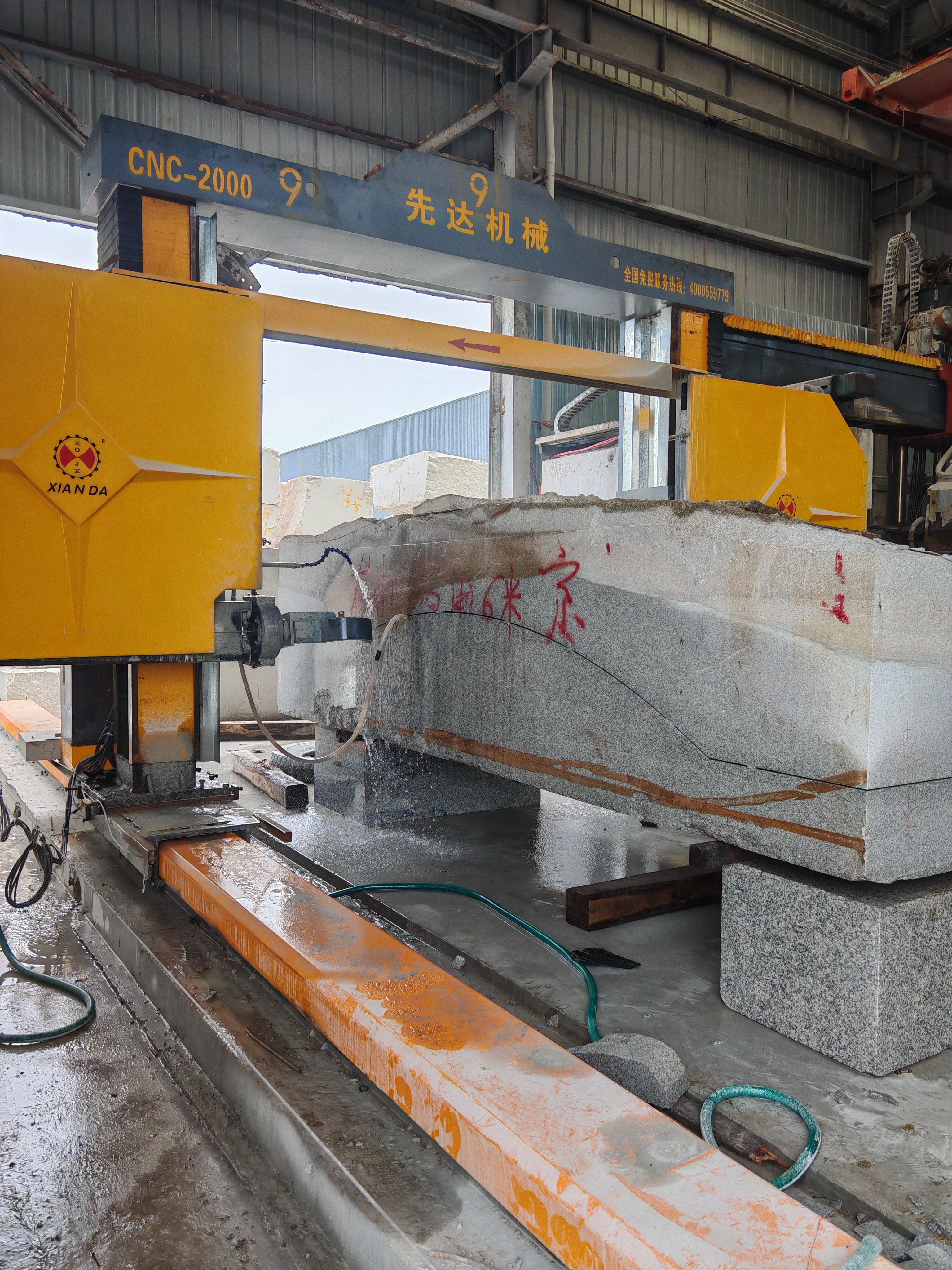

This stone wire saw machine adopts a gantry-type moving structure. Raw stone blocks can be placed directly on the ground for processing, which eliminates the need for transport trolleys and lowers maintenance costs.

The lifting assembly adopts sixteen-sided guide rails with 28 sets of roller units. Intermediate transmission enables synchronous vertical movement. Featuring high stability, high cutting efficiency and excellent precision, the machine is specially developed for processing large-size natural stone materials.

Main Technical Parameters
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Parameter Unit GWS-3500-21 CGWS-3500-21 GWS-3500-25FW
Control system / PLC CNC PLC
Max processing dimension mm 3500×3500×2100 3500×3500×2100 3500×3500×2500
Wire speed m/s 20~40 20~40 20~40
Main motor power kW 15 15 15
Overall dimension mm 9800×5900×5600 9800×5900×5600 9600×5900×6500
Water consumption m³/h ≈4 ≈4 ≈4
Key Advantages
  • Ground placement processing design, save trolley investment and maintenance work
  • 16-sided guide rail + 28 roller groups, stable synchronized lifting
  • Two control options: PLC automatic control and CNC programmable control
  • Stable wire movement, high precision for curved & special-shaped large stone
  • Suitable for granite, marble, engineered stone large block profiling, arch stone processing
Application

Ideal for stone factories processing large stone blocks, arch components, curved slabs, special-shaped monument and architectural stone.

Xianda Family
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
Workshop
Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting Gantry Movable CNC PLC Wire Saw Machine for Large Stone Block Cutting
FAQ - Gantry Stone Wire Saw Machine
1. What materials can this gantry wire saw process?

It cuts granite, marble and engineered stone. Perfect for arch stone, curved profiles and custom special-shaped stone products.

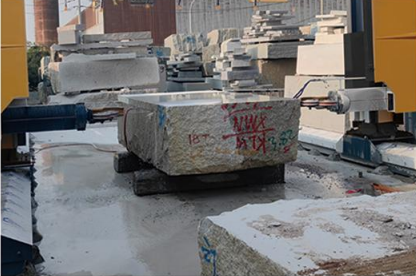

2. Can stone blocks be placed directly on the ground?

Yes. The gantry moving design requires no transport trolley, lowering extra investment and maintenance expenses.

3. What is the difference between PLC and CNC models?

PLC version suits regular cutting jobs with simple operation. CNC model supports program input for complex curved stone processing.

4. What are the maximum processing dimensions?

3500×3500×2100 mm (GWS-3500-21 / CGWS-3500-21)
3500×3500×2500 mm (GWS-3500-25FW)

5. Is the lifting structure stable during operation?

Equipped with a 16-sided guide rail and 28 roller groups. Synchronized lifting ensures stable running and high cutting precision.

6. What is the wire speed range?

Adjustable wire speed: 20 ~ 40 m/s.

7. How powerful is the main motor?

All models adopt a 15 kW main motor.

8. What is the hourly water consumption?

Approximately 4 m³/h for cooling.

9. What after-sales support can you provide?

We supply English operation manuals and tutorial videos. Overseas on-site technical service can be arranged as requested.

10. Is this machine suitable for large stone processing plants?

Absolutely. This machine is specially engineered for large-size raw stone block processing.
