CNC Diamond Wire Saw Machine | 4‑Spindle Linkage Special‑Shape Granite Marble Tombstone Cutter
CNC Diamond Wire Saw Machine | 4‑Spindle Linkage Special‑Shape Granite Marble Tombstone Cutter
Specifications
Supply Ability :
1000 Sets/Year
Cutting Precision :
High
Control Type :
CNC
Main Motor :
15kw
Model Number :
DTWS-1500
Trolley Size :
1500*2500mm
Spindle :
15KW
MOQ :
1
Delivery Time :
15-30days
Table bearing weight :
15T
Wire Diameter :
7.2-11mm
Diameter :
8.5mm to 11.5mm
Payment Terms :
L/C,D/A,D/P,T/T
Automation :
Automatic
Model NO. :
DTWS-1500/2000
Control :
CNC
Price :
To Be Negotiable
Advantage :
Multi Function With Good Quality And Price
Name :
Diamond Wire Saw Machine
Max Processing Size :
3500*3500*2100mm
Certification :
API, CCC, SONCAP, GOST, ISO, CE, SGS;IAF
Transport Package :
Plastic Package, Suitable For Sea Transportation
Warranty Time :
One Year
Place of Origin :
Jinjiang, Fujian, China
Water Consumption :
4m3/H
Adjustment Distance :
450mm
Packaging Details :
Plastic Package, Suitable for Sea Transportation
Wire Speed :
0-40m/S
Brand Name :
Xianda Machinery
Wire Length :
10m
Gross Motor :
11kw
Description

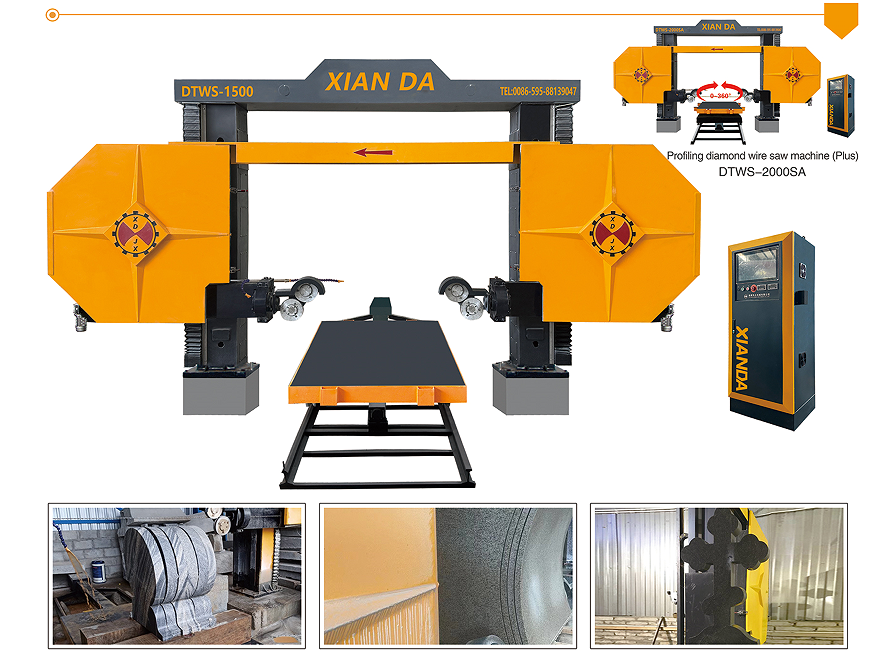

CNC Diamond Wire Saw Machine | 4‑Spindle Linkage Special‑Shape Granite Marble Tombstone Cutter
Product Overview

Designed for high-precision profiling and intricate shaping of natural stone, the 4-spindle linkage CNC diamond wire saw machine delivers superior cutting accuracy and stable operational performance for diverse stone processing projects. Tailored to solve complex curved and special-shaped cutting challenges, this intelligent stone cutting equipment effectively minimizes material loss while ensuring ultra-smooth cutting finishes.

Powered by a mature CNC intelligent control system, the machine supports flexible programming and automated cutting process management. It enables consistent, high-precision machining results throughout long-duration operation, greatly improving production efficiency and reducing manual operation errors.

Equipped with professional diamond wire cutting technology, the equipment features stable cutting force, strong wear resistance and reliable durability, adapting to high-intensity industrial stone processing scenarios.

CNC Diamond Wire Saw Machine | 4‑Spindle Linkage Special‑Shape Granite Marble Tombstone Cutter
Key Features
  • 4-Spindle Linkage Cutting System: Adopts professional four-spindle linkage technology to realize multi-axis coordinated motion, delivering ultra-precise cutting and outstanding machining flexibility for complex, irregular and special-shaped stone workpieces.
  • High-Quality Diamond Wire Cutting Performance: Equipped with premium diamond wire cutting technology, the machine produces flawless smooth cutting edges, precise dimensional tolerance and superior stone surface finish, eliminating secondary polishing procedures.
  • Intelligent CNC Control System: Features advanced CNC intelligent operation system with flexible automatic programming and precise cutting process management. It simplifies operational steps, reduces manual errors and maintains consistent machining accuracy during long-hour continuous production.
  • Reinforced Heavy-Duty Structure: Built with heavy load-bearing structure and four tracks on each upright column. The lead screw and double-nut synchronized lifting design effectively reduces vibration, improves overall stability and extends the equipment service life in harsh industrial processing environments.
  • Precision Adjustable Machining Structure: The cantilever part supports CNC automatic adjustment of guide wheel distance and rotation angle. The worktable adopts lead screw and railway driving mode, ensuring ultra-stable running and high positioning accuracy for customized cutting demands.
  • Intelligent Safety & Tension Control: Comes with an automatic wire break alarm system for operational safety protection. Equipped with 1300mm large-diameter aluminum wheels and oil pump-controlled rope tension system, it keeps constant wire tension and ensures stable cutting quality.
  • High Material Utilization & Efficiency: Optimized cutting trajectory and mechanical structure minimize stone material loss, greatly improve raw material utilization rate and overall production efficiency, bringing higher economic benefits for stone processing factories.
  • Wide Application Range: Perfect for processing granite, marble, sandstone and other natural stones, widely applicable for tombstone shaping, curved stone components, architectural stone materials, custom stone sculptures and various special-shaped stone customization projects.
Technical Specifications
Model Number DTWS-1500 DTWS-2000 DTWS-2000SA
Control System CNC CNC CNC
Certifications API, CCC, SONCAP, GOST, ISO, CE, SGS API, CCC, SONCAP, GOST, ISO, CE, SGS API, CCC, SONCAP, GOST, ISO, CE, SGS
Trolly size 1500*2500mm 1500*2500mm 1500*2000mm
Gross Weight 7000kg 7500kg 8000kg
Outline Dimension 6300*6300*3300mm 6800*6300*3300mm 6800*6300*3600mm
Max Processing Size 1500*3000*1200mm 2000*3000*1200mm 2000*3000*1200mm
Water Consumption 3m³/H 3m³/H 3m³/H
Main Motor 11KW 11KW 11KW
Table Bearing Weight 15T 15T 15T
Wire Speed 20-40m/s 20-40m/s 20-40m/s
Production Capacity 1000 Sets/Year 1000 Sets/Year 1000 Sets/Year
Origin Jinjiang, Fujian, China Jinjiang, Fujian, China Jinjiang, Fujian, China
Applications

DTWS-1500 CNC wire cutting machine (rope saw) function: Cutting column slabs, semi circular slabs, English letters, and other diversified complicated special shapes. Materials include marble, granite, natural stone, etc.

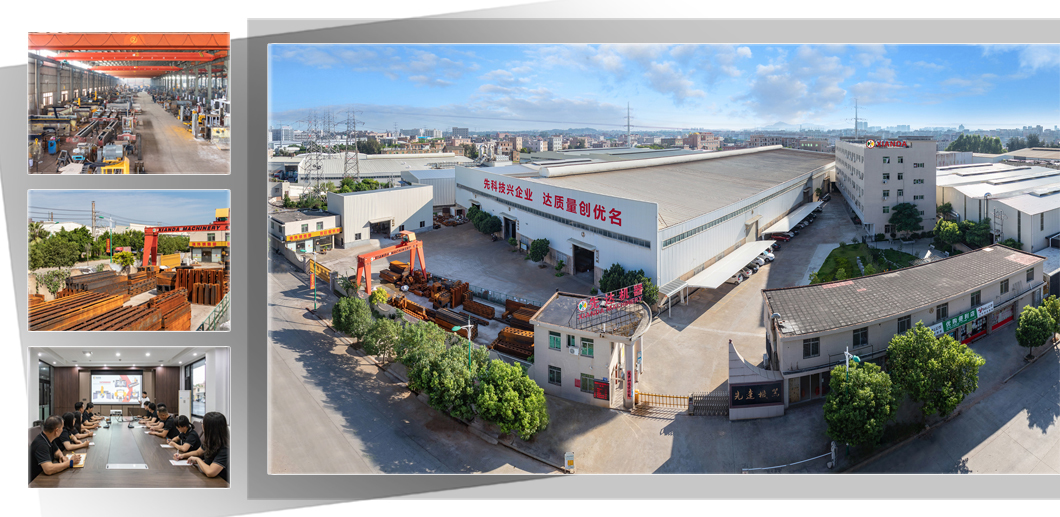

Factory Strength
CNC Diamond Wire Saw Machine | 4‑Spindle Linkage Special‑Shape Granite Marble Tombstone Cutter
  • 40+ years manufacturing experience in stone cutting machinery
  • Export to 60+ countries worldwide
  • Professional R&D team for CNC cutting equipment
  • Full OEM/ODM customization support
  • Complete production line & strict quality inspection
  • After-sales service & technical support globally

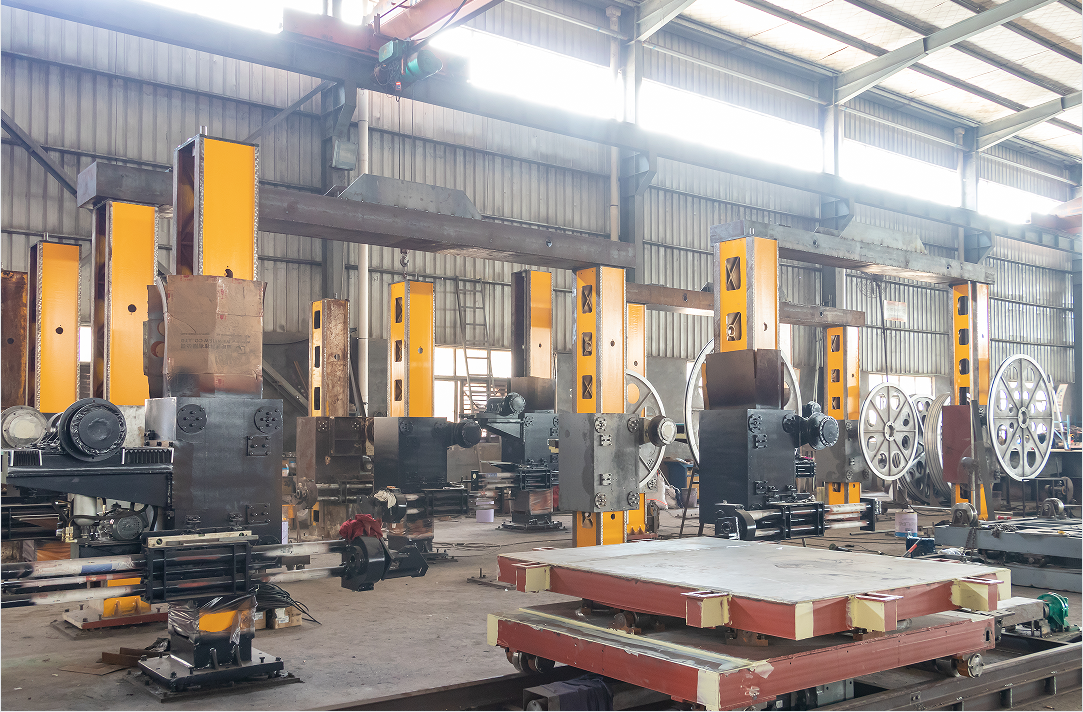

Assembly Line
CNC Diamond Wire Saw Machine | 4‑Spindle Linkage Special‑Shape Granite Marble Tombstone Cutter

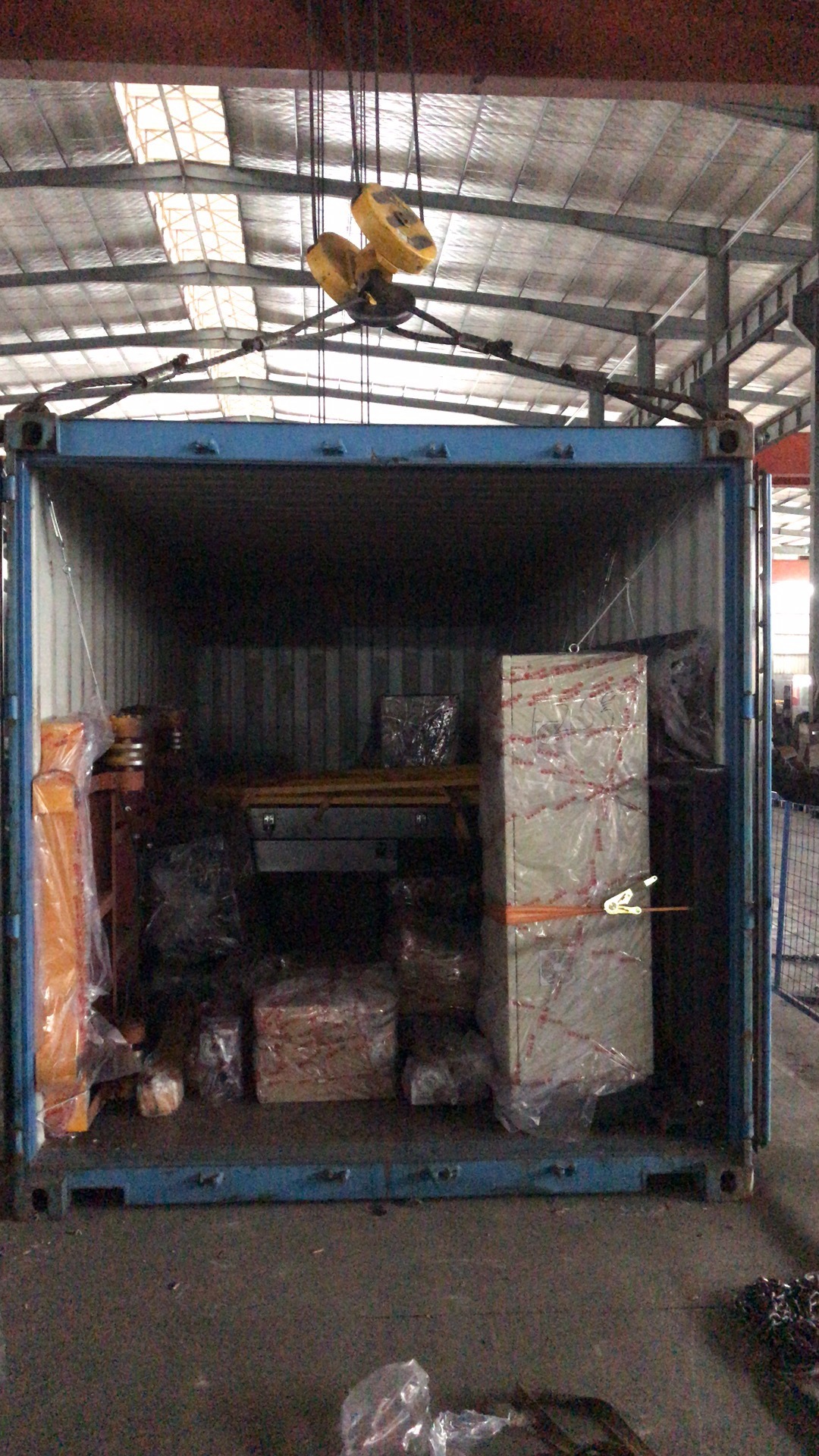

Packaging & Shipping

Securely packed in specialized packaging material with bubble wrap or foam protection. Shipping options include ground, air, and international shipping. All shipments are tracked and insured for safe delivery.

CNC Diamond Wire Saw Machine | 4‑Spindle Linkage Special‑Shape Granite Marble Tombstone Cutter CNC Diamond Wire Saw Machine | 4‑Spindle Linkage Special‑Shape Granite Marble Tombstone Cutter CNC Diamond Wire Saw Machine | 4‑Spindle Linkage Special‑Shape Granite Marble Tombstone Cutter
Frequently Asked Questions
What materials can the four-spindle diamond wire saw machine cut?
This machine is suitable for cutting granite, marble, quartz, artificial stone, and other hard stone materials. It supports high-precision processing of natural stone, engineered stone, and various stone slabs used in construction, memorial, and custom stone projects.
What is the cutting precision of this CNC diamond wire saw?
The CNC diamond wire saw machine offers high cutting precision up to ≤0.01mm. It ensures accurate dimensions, smooth cutting edges, and consistent finish, which helps reduce secondary polishing and improves overall production efficiency.
Do you support customized size and parameters?
Yes, we provide full OEM/ODM customization services. Customers can customize table size, power, voltage, cutting capacity, and additional functions according to different stone processing requirements.
Can you export to Europe, USA, Middle East and Southeast Asia?
Yes, we have rich export experience and can deliver to Europe, the United States, the Middle East, Southeast Asia, and other regions. We adopt safe packaging and arrange reliable transportation to help customers receive the equipment in good condition.
What is the advantage of four-spindle linkage?
The four-spindle linkage system improves cutting efficiency, operational stability, and multi-angle processing capacity. It allows the machine to handle complex shapes, curved surfaces, and special-shaped stonework with higher accuracy and smoother performance.
