Bridge Type Automatic High Efficiency Polishing Machine
Bridge Type Automatic High Efficiency Polishing Machine
Specifications
Model Number :
ZDPM-3522/3522SJ
Warranty Time :
One Year
Payment Terms :
T/T,
Certification :
CE/SEO
Cutting Ability :
High Speed
MOQ :
1
Supply Ability :
5000sets per month
Brand Name :
XIADNA
Key Selling Points :
Competitive Price, Automatic
Place of Origin :
Quanzhou,China
Outline Diamension :
6800*3850*2900 mm
Description

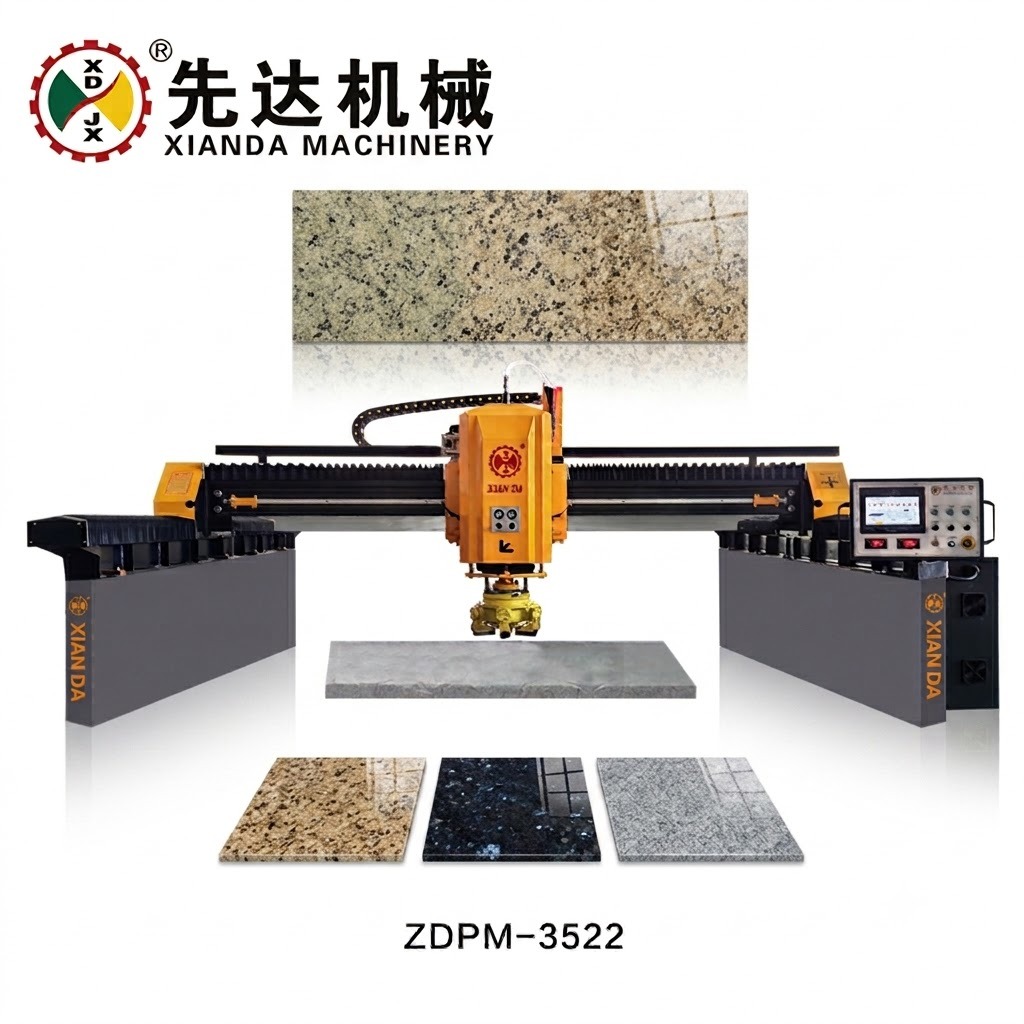

Bridge Type Automatic High Efficiency Polishing Machine

Our Bridge Type Automatic High Efficiency Polishing Machine is engineered for high-precision, smooth, and uniform surface grinding and polishing of natural stone slabs. Designed with a heavy-duty bridge structure, this machine combines exceptional mechanical stability, user-friendly operation, and advanced automatic controls to maximize productivity while maintaining superior finish quality.

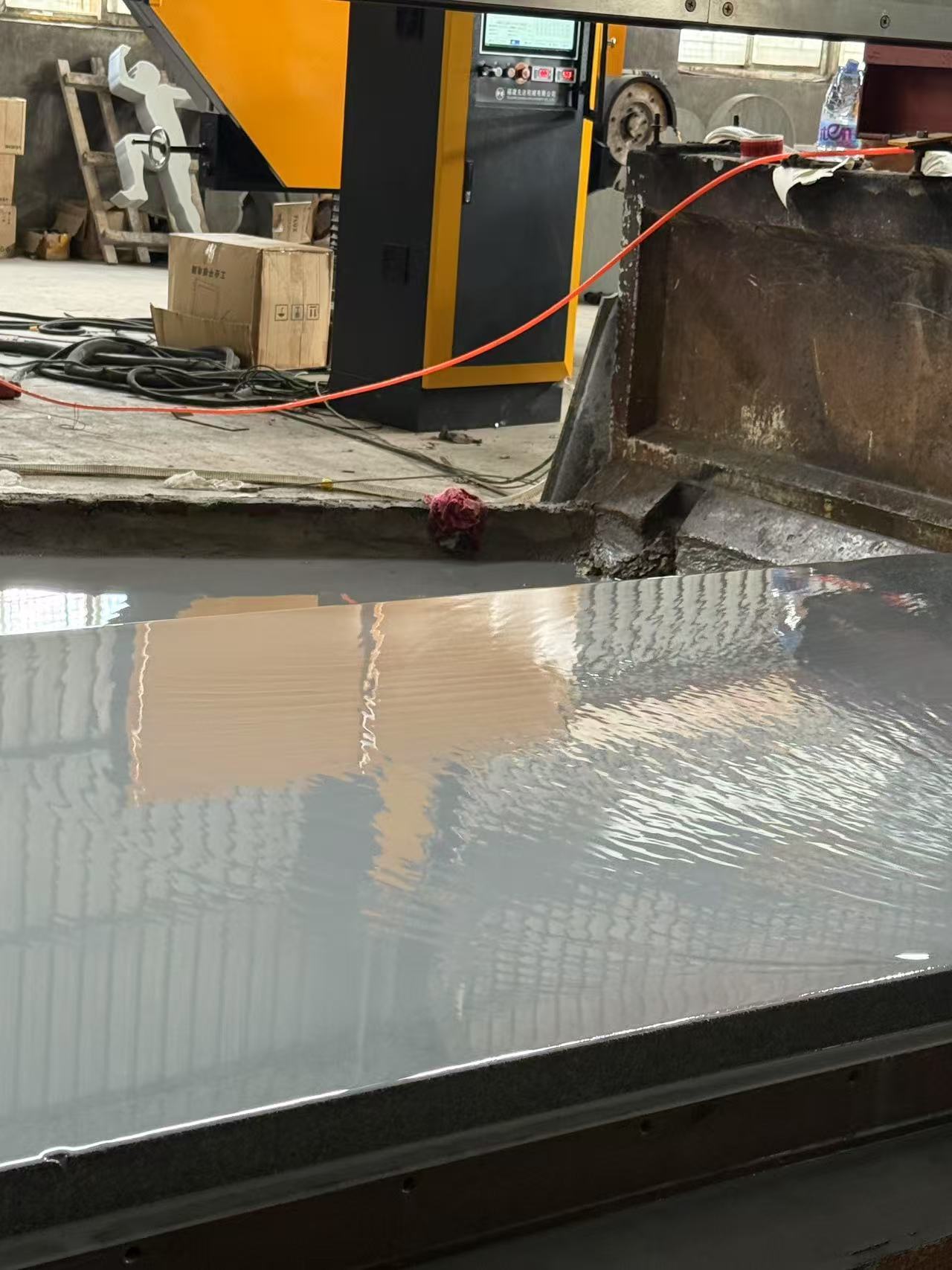

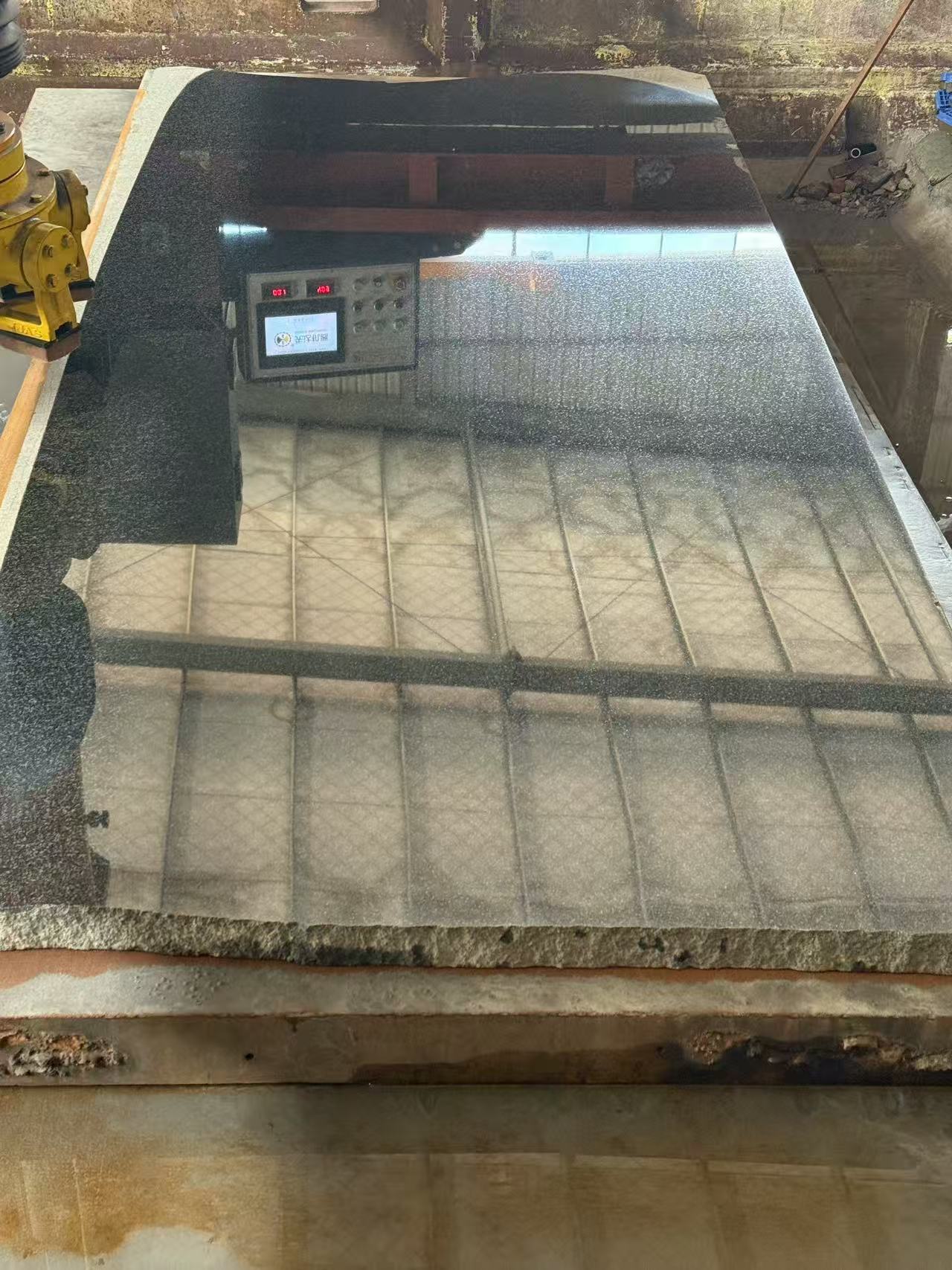

Machine photo

Machine Parameter
Paramter Unit ZDPM-3522 ZDPM-3522SJ
Front and back travel mm 2200 2200
Left and right travel mm 3500 3500
Lifting stroke mm 200 200
Main motor power kw 15 15
Total power kw 19 19
Outline dimension mm 6000*3850*2900 6000*3850*2900
Grinding head type / Six claw grinding head Six claw grinding head
Air compressor power kw 3 3

  • Robust Bridge Structure: Built with high-strength castings and precise guide rails to minimize vibration, ensuring long-term stability and high machining accuracy.

  • Automated & High Efficiency: Features an intelligent control system that automatically manages the polishing stroke and head pressure, significantly reducing labor intensity and operational costs.

  • Superior Surface Finish: Equipped with an optimized single polishing head mechanism that delivers high torque and even pressure distribution, producing high-gloss, scratch-free surfaces.

  • Easy Operation & Maintenance: Intuitive control panel allows quick adjustments of travel speed and polishing depth. Low maintenance design minimizes equipment downtime.

  • Versatile Application: Ideal for processing slab surfaces, countertop edge finishing, and custom stone surface treatments across varied dimensions.

Why Choose Our Polishing Machine?

By integrating precision engineering with durability, our bridge-type polishing machine offers stone manufacturers a reliable, cost-effective solution to elevate slab output and surface quality. Whether for high-volume factory production or specialized custom processing, it is built to perform consistently under demanding industrial conditions.
