Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency
Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency
Specifications
Brand Name :
Xianda Machinery
Certification :
API, CCC, UL, SONCAP, GOST, ISO, CE, SGS;IAF
Place of Origin :
China
MOQ :
1 set
Price :
To Be Negotiated
Payment Terms :
L/C, T/T
Supply Ability :
100, 000, 000 PCS/Year
Packaging Details :
Plastic Package, Suitable for Sea Transportation.
Model Number :
WKQ-1200
Blade material :
diamond
Type :
Bridge cutting machine
Application :
Cutting,Marble,Granite
Advantage :
Fast Cutting Speed,High Sharpness
Usage :
granite,marble,Stone
Diameter (mm) :
700-1200mm
Description

Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency

Technicial Parameter:

Parameter Unit WKQ-1200
Blade diameter range mm 700-1200
Max lifting travel mm 760
Trolley size mm 3000*2000
Worktable rotating angle ° 0-90
Main motor kw 22-6/30-6(optional)
Gross power kw 29/37(optional)
Outline dimension mm 6150*4800*4400(Including foundation height)
Gross weight kg 6800
Water consumption m³/h 4

Product Description:

This machine is with single-cylinder sliding plate structure, it can adjust the wear space, lift up and down speed fast and stable.
It's suitable for cutting thick slabs, and square blanks.

700-1200mm Blade diameter range

Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency

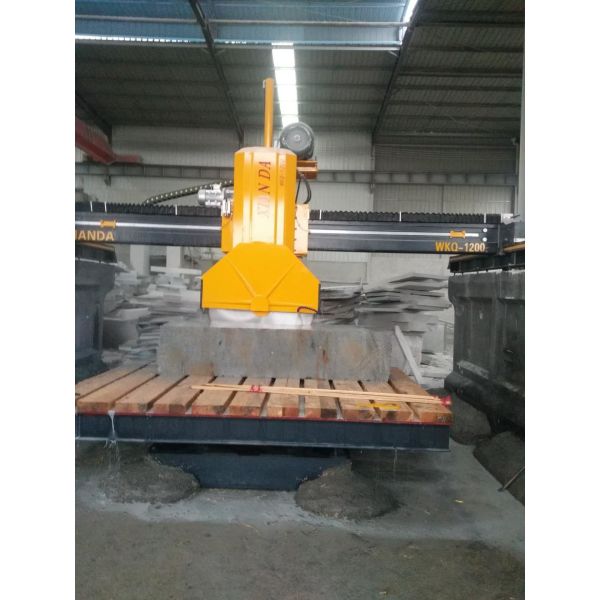

Picture picture:
Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency
Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency

Our Products:

1. diamond wire saw machine for quarry
2. double blade machine for granite quarry
3. horizontal core boring machine for horizontal drilling
4. DTH drilling machine for horizontal,vertical, inclined drilling
5. diamond wire for stone quarrying, squaring, profiling
6. diamond segments for all sorts of stone cutting
7. diamond blade for all sorts of stone cutting
8. diamond grinding and polishing tools

Middle Block Stone Cutting Bridge Saw Cutting Machine With High Efficiency
