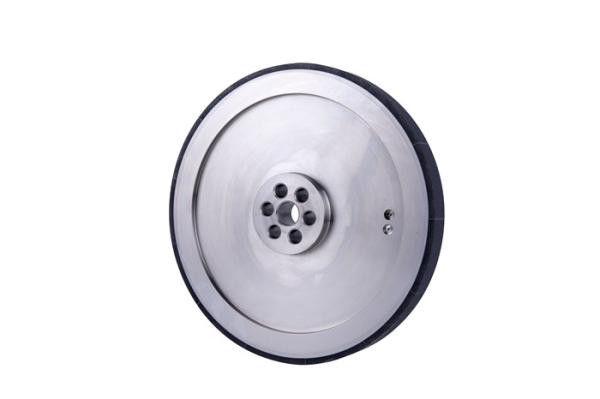

1A1 Centerless Grinding Wheel For Bearing Industry 300×80×H×10
1A1 Centerless Grinding Wheel For Bearing Industry 300×80×H×10
Specifications
Certification :
High QC standard, 100% inspection
Place of Origin :
China
MOQ :
1PC
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
20000 pcs per month capacity
Delivery Time :
10-14 days delivery time
Packaging Details :
Box
Name :
Grinding Wheel For Bearing Industry
Feature :
Long using life
Workpiece: :
Tungsten carbide rods, Bearing rings, valve plug, piston pin etc.
Application :
Bearing industry
Hardness: :
customized
Keyword: :
Centerless Grinding Wheels
Description

1A1 Centerless Grinding Wheel For Bearing Industry 300×80×H×10

Centreless grinding with its most basic explanation is a cylindirical grinding application where the workpiece seeks its own axis of rotation between the grinding wheel and a regulating wheel. Centerless grinding is mostly seen in Automotive, manufacturing of gas springs for furniture or whiteware, mould components manufacturing, bearing etc.

The grinding wheel and regulating wheel are the most important components of centerless grinding.

Specification:

Resin Bond

Shape (D×T×H×X) Shape (D×T×H×X)
1A1 300×80×H×10 1A1 350×100×H×10
1A1 300×100×H×10 1A1 350×125×H×10
1A1 300×150×H×10 1A1 350×150×H×10
1A1 400×150×H×10 1A1 500×100×H×10
1A1 400×205×H×10 1A1 500×150×H×10
1A1 450×205×H×10 1A1 500×200×H×10
1A1 450×255×H×10 1A1 500×250×H×10
1A1 600×405×H×10 1A1 750×455×H×10

Vitrified bond

Shape (D×T×H×X)
1A1 405×95×H×4
1A1 450×205×H×5
1A1 500×250×H×5

Metal bond

Shape (D×T×H×X)
1A1 455×130×H×3
9A1S 220×101×H×5
9A1S 220×141×H×5

Application:

Normally be used for grinding outer cylindrical or conical surface. Often used for mass production of outer cylindrical surface.
Workpiece: Tungsten carbide rods, Bearing rings, valve plug, piston pin etc.
