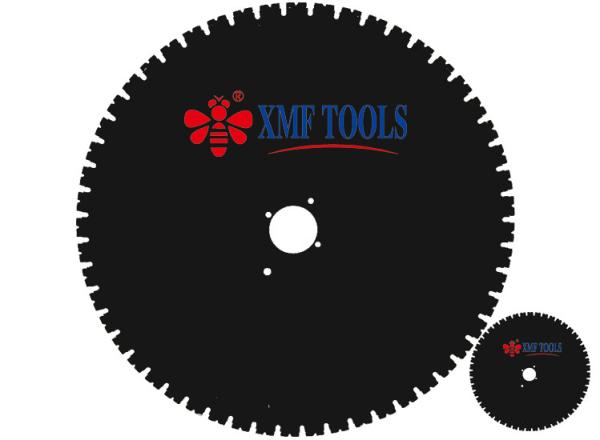

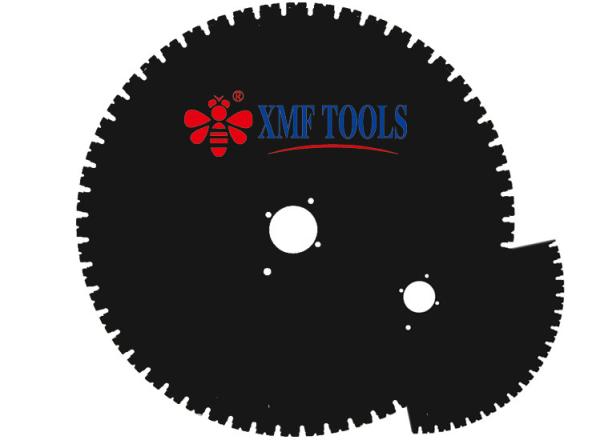

Segmented diamond blade for wet cutting cured concrete wall,and brick wall with perfect performance...
Application:
cured concrete wall,brick wall
Machinery:
Hydraulic or electric powered wall saw
Different arbor sizes and segment specifications are available upon request
| Item NO. | Diameter | Bore | Segment | Segment | |
| inch | mm | size(mm/inch) | thickness(mm) | height(mm) | |
| CS600SM | 24" | 600 | 25.4/ 1" | 4.5 | 10/12 |
| CS650SM | 26" | 650 | 25.4/ 1" | 4.5 | 10/12 |
| CS700SM | 28" | 700 | 25.4/ 1" | 4.5 | 10/12 |
| CS750SM | 30" | 750 | 25.4/ 1" | 4.5 | 10/12 |
| CS800SM | 32" | 800 | 25.4/ 1" | 4.5 | 10/12 |
| CS900SM | 36" | 900 | 25.4/ 1" | 4.5-6.0 | 10/12 |
| CS1000SM | 40" | 1000 | 25.4/ 1" | 5.5-6.5 | 10/12 |
| CS1100SM | 44" | 1100 | 25.4/ 1" | 5.5-6.5 | 10/12 |
| CS1200SM | 48" | 1200 | 25.4/ 1" | 5.5-7.0 | 10/12 |
