2025 Xhorse VVDI Key Tool Max Pro Original Xhorse Key Programmer

Specifications

Place of Origin :

China

Certification :

Model Number :

max pro

MOQ :

1 Set

Price :

Best Price

Packaging Details :

Standard Package

Delivery Time :

Within 48 hours

Payment Terms :

TT/PayPal /Western Union/ Money Gram

Supply Ability :

In Stock

Brand Name :

Xhorse

Function :

IMMO OBD Match Maintenance Remote leakage detection Remote battery voltage detection Remote key / smart card key generation

Description

VVDI Key Tool Max Pro is the upgraded version which combines functions of Key Tool Max and Mini OBD Tool
Newly add the CAN FD, Read Voltage and Leakage Current functions
CAS3 Key Programming (Comming soon)
Partial Toyota Models Key Programming (Comming soon)

Xhorse VVDI Key Tool Max Pro With MINI OBD Tool Function Support CAN FD/ Voltage and Leakage Current

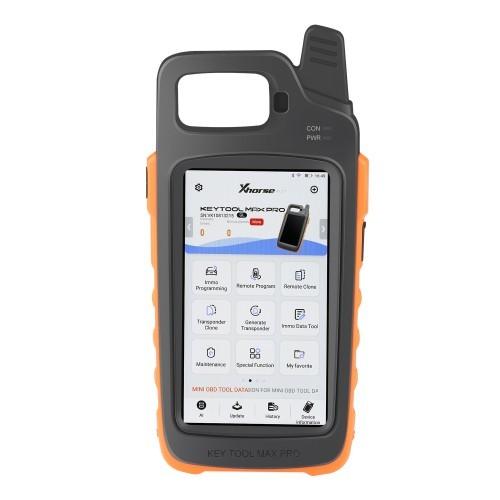

Xhorse VVDI KEY TOOL MAX PRO is a professional all-in-one smart device with multi-function, Bluetooth and WIFI communication interface, which is convenient for connecting and controlling Xhorse key cutting machines. It supports various OBD functions such as vehicle diagnosis, IMMO program, throttle program, TPMS, and maintenance light reset.

Highlights:

1. With Built-in OBD module, Combines functions of Key Tool Max and Mini OBD Tool
2. Comes with integrated CAN FD for GM vehicles and All in One
3. Adds battery voltage measurement, and leakage current measurement
4. Supports Toyota H all keys lost with 8A AKL adapter
5. Control Xhorse Condor/Dolphin key cutting machines
6. App Language: English, German, Spanish, Persian, French, Hebrew, Hindi, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Ukrainian, Vietnamese (App language has no limitation. Free to switch now, database language is English)
7. CAS3 Key Programming
8. Partial Toyota Models Key Programming

How to get ID48 96bit transponder clone function?
Use VVDI Max Pro to generate new vvdi remote key 10pcs, after collect points, 2 hours later, server will open ID48 96bit function automatically. Please note all brand new remotes.

VVDI Key Tool Max Pro Main Functions:

IMMO OBD Match

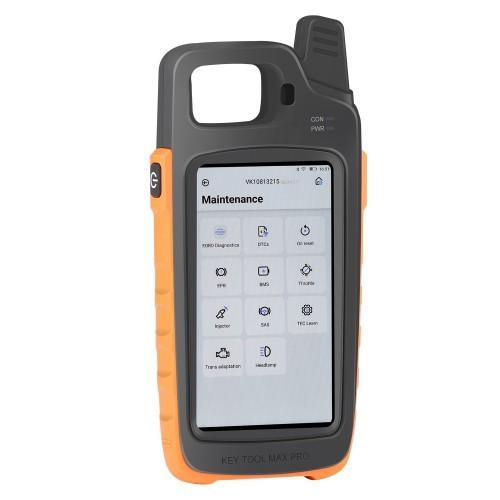

Maintenance
Remote leakage detection
Remote battery voltage detection
Remote key / smart card key generation

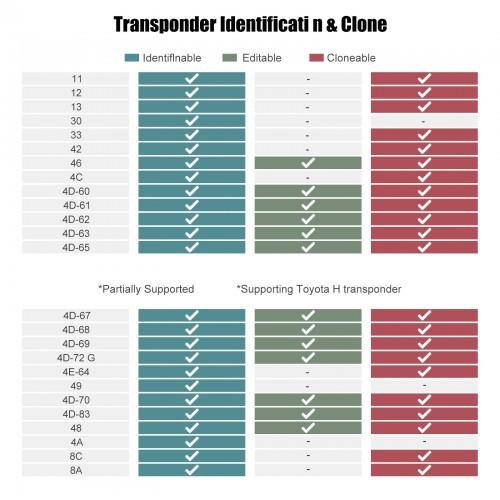

Transponder Editing & Cloning
Generate Transponder
Remote Renew
Access Card identification / copy
Generate Garage Remote
Frequency Detection and Copy Remote
Work with DOLPHIN XP-005, XP005L, Condor MINI Plus, MINI Plus II

TPMS Function:

Support XTPMS programming, up to 20 sensors simultaneously
Reprogram XTPMS sensor (Xhorse TPMS Sensor please more time)
Activate original TPMS and XTPMS sensor (315Mhz, 433Mhz)
Copy and change sensor ID
Read TPMS data like tire pressure, temperature, battery, etc.
Support OBD reading, writing, read & clear DTCs
Compatible with multiple car models, more models coming soon

New - IMMO Programming Elevated Capability:

Support CAS3+and Lower modules:

CAS1 IMMO system
EWS IMMO system
CAS2 IMMO system
ECU ISN
CAS3/CAS3+IMMO system
Instrument mileage repair
CAS1- CAS3 Key Programming and Mileage Repair (NEW!)
Partial Toyota 8A/4D Add key and all keys lost (with 8A AKL adapter) (NEW!)
TPMS programming and activation (June 2023) (NEW!)

Support partial Toyota 8A/4D Add Key /All Key Lost:

Support List
Corolla
Highlander
Camry
REIZ
VIOS
LEVIN
CROWN
RAV4
Hiraks
Lexus
PRADO/LAND CRUISER PRADO/LAND CRUISER

Support Fiat Viaggio, Ottimo 3 Button Smart Key:

Generate Dealer Key
Add Key and All Key Lost

Support Jeep Renegade Flip Key MQB48:

Add Key and All Key Lost

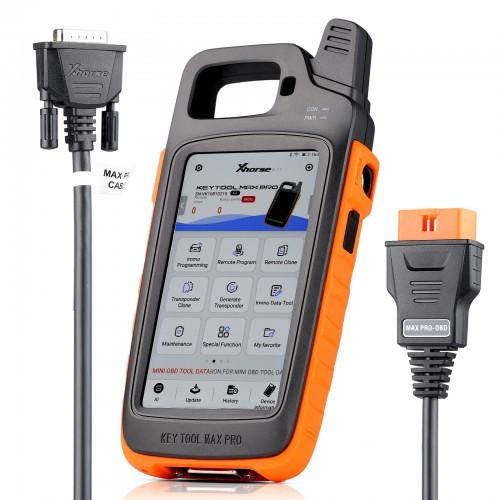

Newly Added OBD Module:

KEY TOOL MAX and MINI OBD TOOL used to be a great combination, enabling users to finish various works via wireless connection. Now, MAX PRO comes with an OBD cable which could connect it to vehicle OBDⅡ port, which means you don't need to purchase MINI OBD TOOL for immo programming and other functions. Meanwhile, wire connection usually can be highly secure and reliable with low risk.

Built-in CAN_FD Module, Expanded Function:

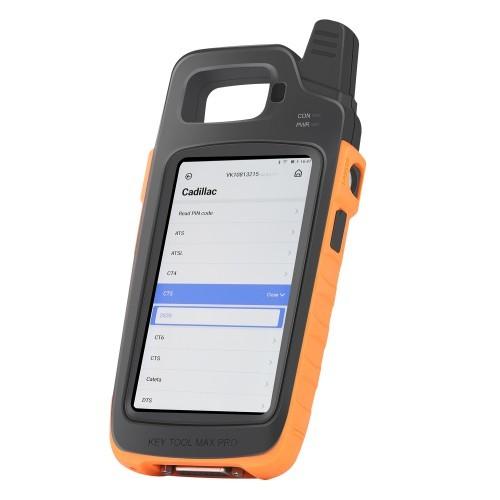

Concerning immo programming, MAX PRO is designed with a CAN_FD module, making it possible to complete immo programming for various CAN_FD models such as Cadillac CT4/CT5, Buick GL8, Encore, etc. Of particular note, Xhorse offers continuous upgrades for free and car models supported keep increasing for your convenience.

2025 Xhorse VVDI Key Tool Max Pro Original Xhorse Key Programmer

Read Voltage and Leakage Current:

This function is only used for leakage detection and voltage detection of remote, please do not use it for detection of other products.
Leakage detection: it can detect the current when the remote is leaking, and support current range is 1 microamp~35 milliampere(Do not insert battery into remote)
Voltage detection: it can detect the voltage of the remote battery,and support voltage range is 0V-36V

2025 Xhorse VVDI Key Tool Max Pro Original Xhorse Key Programmer

Key Tool Max Pro Parameter:

Battery capacity: 3375mAh
Battery life>6 hours
Standby time>5 days
Recharging current: 1500mAh
Brightness>400nlts
Screen resolution: 1280*720P
Camera resolution: 800W
WIFI & Bluetooth: 802.11a/ b / g / n / ac & 4.2 BLE

Xhorse Key Tool Max vs. Key Tool Max Pro:

	Key Tool Max	Key Tool Max Pro
Hardware
System	4-Core CPU	4-Core CPU
Memory	1G+8G	1G+8G
OBD Module	work with Mini OBD Tool	√
CANFD Module	×	√
Charge via OBD	×, via USB cable	√, via OBD/USB cable
Current/Voltage Test Module	×	√
Software
IMMO	Buy Extra Mini OBD Tool	√
Cadillac CT4/CT5 CAN_FD	×	√
Buick GL8/Encore etc. CAN_FD	×	√
Chevyrolet Cavalier/Trax etc. CAN_FD	×	√
Maintenance	work with Mini OBD Tool	√
Generate Remote (flip, remote, smart card, Toyota smart card, garage door etc.)	√	√
Remote Clone	√	√
Identify/clone Transponder	√	√
Generate Transponder	√	√
File Make key	√	√
Special Function	√	√

2025 Xhorse VVDI Key Tool Max Pro Original Xhorse Key Programmer

Package List:

1pc x Xhorse Key Tool Max Pro
1pc x OBD to DB15 Cable with Light
1pc x Remote Programming Cable
1pc x Leakage Detection Cable
1pc x USB Cable
1pc x User Manual
