Specifications
Brand Name :
TECGEN
Model Number :
TGPS
Place of Origin :
CHINA
Certification :
CE/SONCAP/FCC/SGS
MOQ :
1 Unit
Price :
Negotiation
Packaging Details :
Plywood case Package or Plastic film package in container
Delivery Time :
15-20 working days after received deposit
Payment Terms :
T/T or L/C
Supply Ability :
200 Units Per Month
Engine Brand :
Perkins
Alternator Brand :
Leroy Somer / Stamford / Tecgen
Fuel Type :
Diesel
Noise Level :
Low
Frequency :
50Hz
Controller :
Deepsea / Smartgen
Cooling System :
Water-cooled
Phase :
Single/Three Phase
Description

50HZ 20KVA Silent Power Generators With Perkins Engine Diesel Fuel Type

Product Description:

Silent Power Generators are the perfect choice for any environment where noise levels must be minimized, such as schools, hospitals, luxury apartments, and other residential areas. Our generators are equipped with high quality diesel engines from the renowned brand Perkins, and alternators from the renowned brands Leroy Somer, Stamford, and Tecgen. The frequency of our generators is 50 Hz, and noise levels are extremely low. With our Quiet Power Generators, you can enjoy the benefits of noiseless power generation.

50HZ 20KVA Silent Power Generators
DIESEL GENERATOR SET
Genset Model TG22PS
Prime Power 20KVA/16KW
Standby Power 22KVA/17.6KW
Rated Voltage (V) 380
Rated Frequency (Hz) 50
Rated Speed (RPM) 1500
Power Factor (COS¢) 0.8 (lagging)
ENGINE DATA
Engine Brand Perkins
Engine Model 403A-22G1
Engine Power(KW) 20.6
No. of Cylinders 4
Air intake way Natural
Governor Mechanical
Bore*Stroke (mm*mm) 84*100
Displacement (Liter) 2.216
Compression Ratio 23.3:1
Cooling System Water-Cooled
Starting Method DC 12V Electrical Starting
Fuel Consumption (g/kw.h) 237
ALTERNATOR DATA
Alternator Brand Stamford
Alternator Model PI144D
Connecting Type 3 Phases and 4 Wires
Number of Bearing Single
Production Grade IP23
Altitude ≤ 1000m
Exciter Type Brushless, Self-exciting, AVR & 100% Copper Winding Wire
Insulation Class H
Telephone Influence Factor (TIF) ≤ 50
Telephone Harmonic Factor (THF) ≤ 2%
Voltage Regulation, Steady State 1.00%
Transient State Voltage ≤ -15% ~ +20%

Tecgen Power Generator Feature:

1, Output range: 10kVA to 3000kVA Heavy Duty diesel generator.

2, Different brands of engine, alternator and controller as options

3, Coupled with Stamford alternator, Leroy Somer alternator, Marathon alternator or Tecgen Power alternator

4, Open type, silent type, super silent type or mobile type generator.

5, CE, ISO9001-2008, SONCAP, SASO and SGS certified

6, Starter System with maintenance-free battery

7, Control Panel with Key Start (Power Switch)

8, With 100% fire-resistant sound attenuating sponge

9, 10% of rate output of overload for 1hours in every 12hours

10, Spare parts are easy to get from worldwide market with much cheaper price

11, Perfect after-service network

12, Both 50Hz and 60Hz

13, Chint circuit breaker

14, Three-phase output meets differing requirements

15, ATS ( auto transfer switch for city power and generator power ) / AMF (auto mains failure) /parallel running for option

16, Large fuel tank ensure continuous running.

17, Anti-Vibration Mounted

18, Industrial silencer and flexible exhaust hose

19, 0-110% load test for each unit before delivery

20, Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date

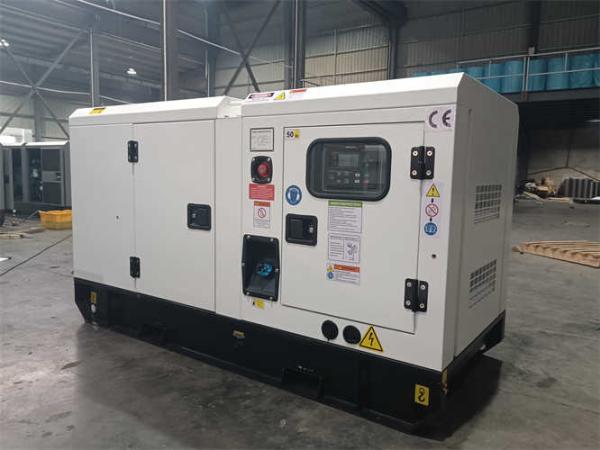

20KVA Silent Power Generators

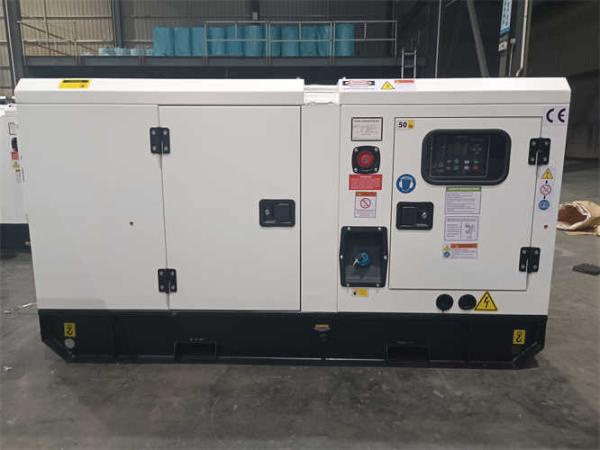

20KVA Silent Power Generators

Applications:

For those who are looking for a noiseless power generator, TECGEN's Silent Power Generator (Model TGS) is the perfect choice. Featuring a low noise level, this silent power generator is the perfect choice for sensitive locations. With advanced fuel-saving technology and a Perkins engine, this generator is both reliable and efficient. Moreover, it is certified by CE/SONCAP/FCC/SGS, providing you with the assurance of quality. This generator is also designed to be water-cooled, making it suitable for both indoor and outdoor use.

The Silent Power Generator from TECGEN comes with a minimum order quantity of one unit and price is negotiable. All the orders are securely packed in either plywood case or plastic film package for container delivery. Customers can expect to receive their orders within 15-20 working days after the deposit is made. TECGEN also offers flexible payment terms such as T/T or L/C. And with a production capacity of 400 units per month, customers can rest assured that their orders will be fulfilled on time.

Support and Services:

We offer technical support and services for Silent Power Generators. Our team is available to answer any questions you may have about the product. We provide comprehensive technical support, including troubleshooting and repairs, to ensure that your Silent Power Generator works as efficiently as possible.

We also provide regular maintenance and servicing to help keep your Silent Power Generator in optimal condition. Our technicians are highly trained and experienced in the field and can help identify any potential issues before they become costly problems.

We take great care in ensuring that our customers are satisfied with the products and services we provide. If you are not satisfied with the performance of your Silent Power Generator, you can contact us for a full refund or exchange.

Send your message to this supplier
Send Now

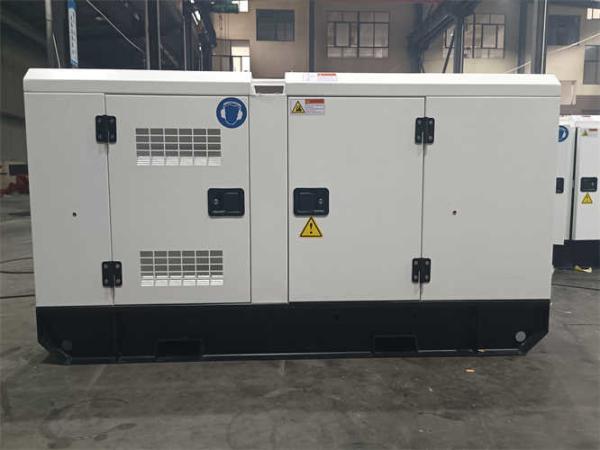

20KVA Silent Power Generators
