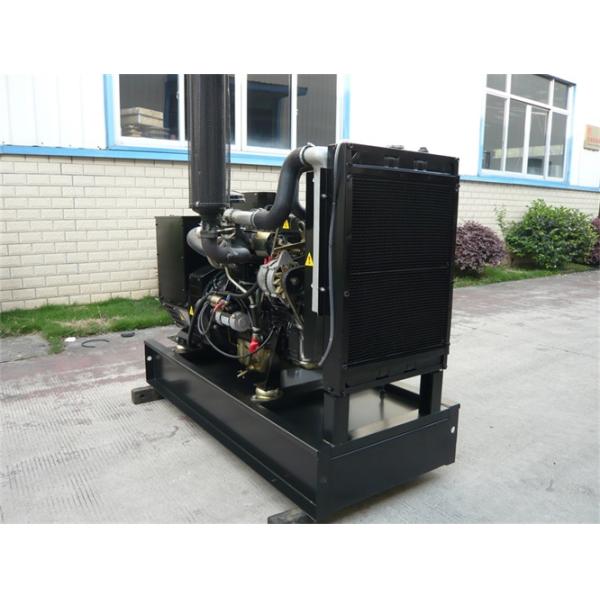

Backup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency Use
Backup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency Use
Backup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency Use
Backup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency Use
Specifications
Brand Name :
Tecgen Open DG Set
Model Number :
TG138R
Place of Origin :
Fuzhou, China
Certification :
ISO / CE / SASO / CIQ /CO
MOQ :
1 SET
Price :
Negotiation
Packaging Details :
Plastic film package or Polywooden Package
Delivery Time :
10 Working Days
Payment Terms :
T/T / L/C
Supply Ability :
400 Units Per Month
Generator Type :
Open-frame
Frequency :
50Hz
Engine brand :
Weifang Ricardo
Warranty :
18Months/1500hours
Governor :
MECH
Power Rating :
138KVA
Cooling System :
Water
Alternator type :
Brushless / Single Bearing
Description

Product Description:

Open Type Diesel Generators are diesel-powered generators that are designed for reliable, cost-efficient power generation. These Ricardo Generators are open type generators and come with a governor that is manually adjusted for a more precise control over the power output. The frequency of these Ricardo Generators is 50Hz, and their engine brand is Weifang Ricardo. The cooling system of these generators is both air and water-based, and the alternator type is brushless and single bearing.

Features:

  • Product Name: Open Type Diesel Generators
  • Generator Type: Open-frame
  • Frequency: 50Hz
  • Cooling System: Water
  • Power Rating: 138KVA
  • Warranty: 18Months/1500hours
  • Diesel-Powered Generator
  • Open-Type Diesel Generator
  • Weifang Ricardo Genset

Backup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency Use

Technical Parameters:

Technical Specification:
110kW Ricardo Weifang Engine Generator Set Specification
Genset Model TG138R TG138RS
Open Silent
Frequency 50Hz
Voltage 400/230V
Phase 3 Phase, 4 Wires
Rate Current 144.3A
Prime Power 100kW / 125kVA
Standby Power 110kW / 138kVA
Engine Model 4RT55-110D
Alternator Model TGI274S100
Controller Mebay DC52D
Weight & Dimensions
Length (mm) 1800 2450
width (mm) 950 1100
Height (mm) 1150 1450
Weight (kgs) 1550 2050
Engine Specification
Brand KOFO Ricardo Series
Engine Model 4RT55-110D
Prime power (kw) 110
Injection Indirect
Aspiration Turbocharged & InterCooled
No. of cylinders 4
Bore of Stroke (mm) 110 x 140
Displacement (L) 5.32
Cooling water
Compression Ratio 17:1
Engine Oil capacity (L) 12
Coolant Capacity ( In radiator) 12
Governor Mech
Air Filter Dry Element
Fuel consumption at 50Hz
100% Load (L/h) 27.8
75% Load (L/h) 20.5
50% Load (L/h) 13.7
25% Load (L/h) 6.8
Alternator Specification
Brand Tecgen
Model TGI274S100
Rate Output 100kW
Pole 4
Winding Connections Star
Insulation Class H
Enclosure IP23
Altitude (m) ≤1000
Voltage Regulator AVR
Steady State Voltage Regulator 1%
Bearing Single
Controller System
Brand Mebay
Model DC52D
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
ATS Connection
OPTIONAL EQUIPMENTS
ATS Box, Switch Box, Remote Control, Daily Fuel Tank, Engine Heater, Water Heater, PMG Generator, Parallel Panel, Fuel-water separator, Trailer Type, 3000Hours Spare Parts

Backup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency Use

Applications:

Tecgen Open DG Set, with brand name Tecgen and model number TG138R, is a type of open-frame generator powered by Weifang Ricardo diesel engine. It is certified by ISO, CE, SASO, CIQ and CO, and the minimum order quantity is 1 SET. The price is negotiable and the packing details can be either plastic film package or polywooden package. The delivery time is 10 working days and the payment terms are T/T and L/C. The Tecgen open-type diesel generator set is capable of supplying 400 units per month with a frequency of 50Hz. The cooling system is either air or water and the alternator type is either brushless or single bearing. The power rating of the generator is 138KVA.

Tecgen open-type diesel generator set is specially designed for reliable power supply for a wide range of applications, such as factories, mines, and hospitals. It is renowned for its excellent performance, low fuel consumption and cost-effectiveness. Moreover, the open-frame generator set is easy to install and maintain. Therefore, the Tecgen open-type diesel generator set is an ideal choice for those who require high quality and reliable power supply.

Customization:

Customized Open Type Diesel Generators

Our Open Type Diesel Generators are ideal for emergency backup power and can provide reliable power for different applications. These diesel-driven generators feature an open-frame design, and come with a manual governor, air/water cooling system, and brushless/single bearing alternator.

  • Brand Name: Tecgen Open DG Set
  • Model Number: TG138R
  • Place of Origin: Fuzhou, China
  • Certification: ISO / CE / SASO / CIQ /CO
  • Minimum Order Quantity: 1 SET
  • Price: Negotiation
  • Packaging Details: Plastic film package or Polywooden Package
  • Delivery Time: 10 Working Days
  • Payment Terms: T/T / L/C
  • Supply Ability: 400 Units Per Month
  • Cooling System: Water
  • Frequency: 50Hz
  • Governor: Manual
  • Alternator type: Brushless / Single Bearing
  • Generator Type: Open-frame

Packing and Shipping:

Packaging and Shipping Open Type Diesel Generators

Open type diesel generators are typically shipped in a wooden crate for added protection. The size and weight of the generator will determine the size of the crate.

The crate should include at least 2" of material around the generator. The generator should be secured to the inside of the crate with straps or brackets. The generator must be firmly secured to the crate and all necessary precautions must be taken to reduce the possibility of it shifting during transit.

The outside of the crate should be labeled with the contents and the destination address. Proper packaging and labeling will ensure that the generator is not damaged during shipping.

Backup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency UseBackup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency UseBackup 138kVA Open Type Diesel Generators 110kW Ensuring Continuous Power Home Emergency Use

FAQ:

Q & A
  • Q: What is the brand name of the Open Type Diesel Generators?
    A: The brand name of the Open Type Diesel Generators is Tecgen Open DG Set.
  • Q: What is the model number?
    A: The model number is TG138R.
  • Q: Where is the Open Type Diesel Generators made?
    A: The Open Type Diesel Generators is made in Fuzhou, China.
  • Q: What certifications does the Open Type Diesel Generators have?
    A: The Open Type Diesel Generators has ISO / CE / SASO / CIQ /CO certifications.
  • Q: What is the minimum order quantity?
    A: The minimum order quantity is 1 SET.
