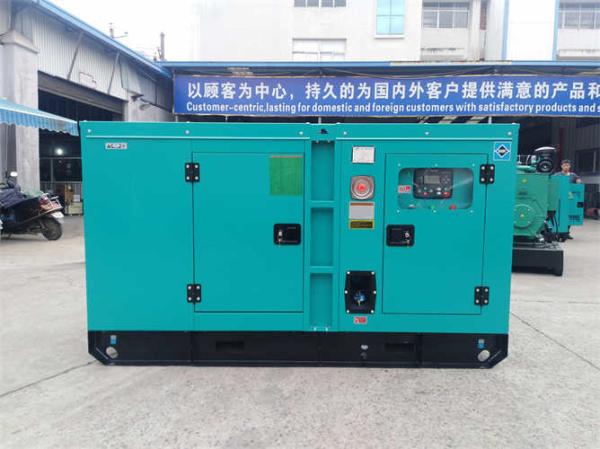

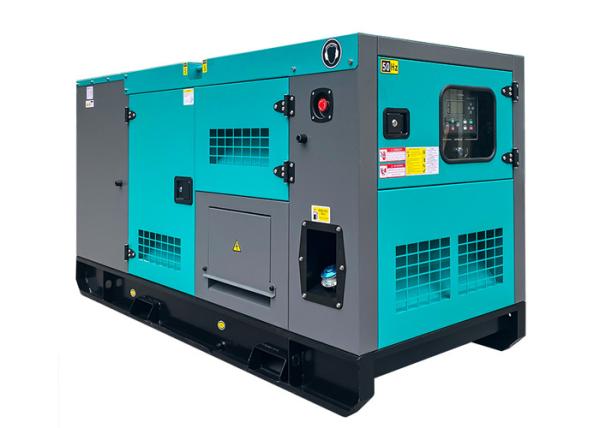

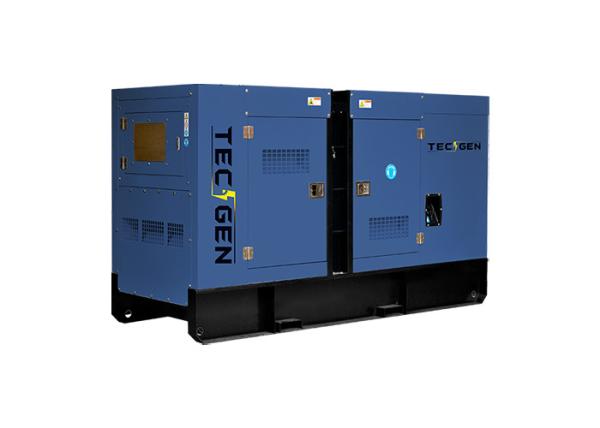

Silent Soundproof UK Perkins Diesel Generators 60HZ 100KVA 80KW
Silent Soundproof UK Perkins Diesel Generators 60HZ 100KVA 80KW
Silent Soundproof UK Perkins Diesel Generators 60HZ 100KVA 80KW
Silent Soundproof UK Perkins Diesel Generators 60HZ 100KVA 80KW
Silent Soundproof UK Perkins Diesel Generators 60HZ 100KVA 80KW
Silent Soundproof UK Perkins Diesel Generators 60HZ 100KVA 80KW
Specifications
Brand Name :
Perkins
Model Number :
TG100PSD6
Certification :
CE/SONCAP/FCC/SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
200 Units per month
Delivery Time :
15-20 working days after received deposit
Packaging Details :
Plywood case Package or Plastic film package in container
Genset Type :
Open or Silent
Engine Brand :
Perkins
Alternator Brand :
Stamford/Leroy Somer/Tecgen
Control System :
AMF/ATS
Cooling Method :
Water Cooling
Genset Color :
Optional
Description

Silent Soundproof Generator Power Genset 60HZ 100KVA 80KW UK Perkins Diesel Generator Set

1) Engine: Perkins Diesel Engine, Water-cooled

2) Alternator: Stamford / Leroy Somer / Marathon / Tecgen Alternator

Brushless H class insulation, Self excitation, IP 23 protection, AVR regulator,THF < 5%,low radio interference.

3) 3 phase 4 wires / 1 phase 2 wires

4) Three phase voltage Available :208V/220V/230V/240V/380V/390V/400V/415V/440V/460V/480V

Single phase available:100-250V

PRODUCTS DETAILS

DIESEL GENERATOR SET
Genset Model TG100PSD6
Prime Power 90KVA/72KW
Standby Power 100KVA/80KW
Rated Voltage (V) 220
Rated Frequency (Hz) 60
Rated Speed (RPM) 1800
ENGINE DATA
Engine Brand Perkins
Engine Model 1104A-44TG2
No. of Cylinders 4
Cylinder Arrangement In-line
Air intake way Turbo
Governor Mechanical
Bore*Stroke (mm*mm) 105*127
Displacement (Liter) 4.4
Fuel Consumption (g/kw.h) 208
Cooling System Water-Cooled
ALTERNATOR DATA
Alternator Brand Stamford/Leroy Somer/Tecgen
Prime Power 90KW
Connecting Type 3 Phase
Number of Bearing Single
Production Grade IP23
Altitude ≤ 1000m
Exciter Type Brushless, Self-exciting, AVR & 100% Copper Winding Wire
Insulation Class H
Telephone Influence Factor (TIF) ≤ 50
Telephone Harmonic Factor (THF) ≤ 2%
Voltage Regulation, Steady State 1.00%
Transient State Voltage ≤ -15% ~ +20%
Tecgen Diesel Genset Features:

Engine Feature

1.Diesel, heavy-duty, four stroke, water cooled and direct injection fuel system

2.24/12V D.C starter and charger alternator
3.Industrial capacity exhaust silencer supplied loose with flexible section

4.Engine driven cooling fan with protection guard

5.Steel wire braided fuel lines, vent and rain fittings

6.Set mounted acid battery installed with leads and terminals

Alternator Feature

1.Brushless self excited, single bearing, 4 poles
2.Class H insulation
3.IP21/23 protection standard
4.Self-exciting and self-regulating

5.Automatic voltage regulator (AVR)

Control System Feature

1.Manual / auto start and protection moudle
2.Equipped with Deep Sea,ComAp,Harsen,Smartgen famous control systems.

3.New integrated controllers in manual and remote start application.

4.Featuring full gen-set monitoring and protection.

5.Powerful graphic display, Icons, symbols and bar graphs

6. High functionality set new standards in gen-set control.

Silent Soundproof UK Perkins Diesel Generators 60HZ 100KVA 80KWSilent Soundproof UK Perkins Diesel Generators 60HZ 100KVA 80KW

Guarantee for 18 months or 1500 hours (accord to whichever comes first) from ex-factory date. During the guarantee period, our Tecgen Power will provide the free easy-damaged spare part for problems caused by our quality of production or raw material, except the damageable spare parts of diesel engine caused by customer's incorrect man-made operation. After expiration, our company provides cost spare parts maintenance for gen-set
