Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW
Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW
Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW
Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW
Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW
Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW
Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW
Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW
Specifications
Brand Name :
Cummins
Model Number :
TG30C
Certification :
CE/SONCAP/SASO/SGS
Place of Origin :
China
MOQ :
1 Unit
Price :
Negotiation
Payment Terms :
T/T, L/C
Supply Ability :
200 Units per month
Delivery Time :
15-20 working days after received deposit
Packaging Details :
Plywood case Package or Plastic film package in container
Product Namee :
Cummins Diesel Generator
Genset Type :
Open or Silent
Engine Brand :
Cummins
Alternator Brand :
Stamford/Leroy Somer/Tecgen
Control System :
AMF/ATS
Output Type :
AC Three Phase
Cooling Method :
Water Cooling
Ambient Temp :
≤40 C
Conditions of Use :
Land Use
Genset Color :
Color is optional
Description

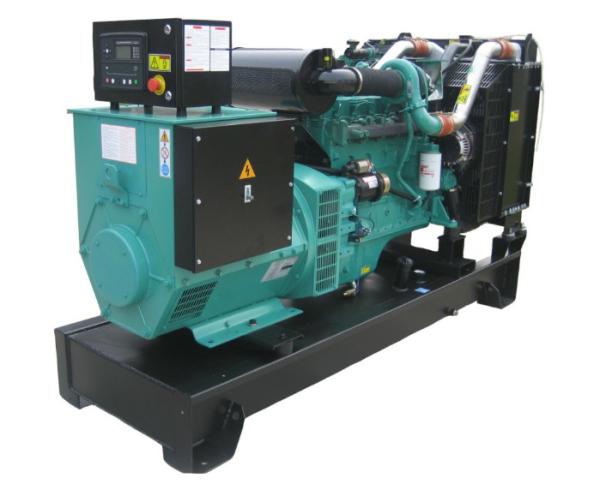

Global Warranty Cummins Stamford Power Genset 50HZ 380V 30kVA 24kW Cummins Diesel Generator Set

Standby Output: 30kVA/24kW

Prime Output: 28kVA/22kW

1) Powered by brand new original Cummins water cooled diesel engine.
2) Brand new STAMFORD, LEROY SOMER or TECGEN single bearing 3 phase alternator with IP23 and H insulation class.

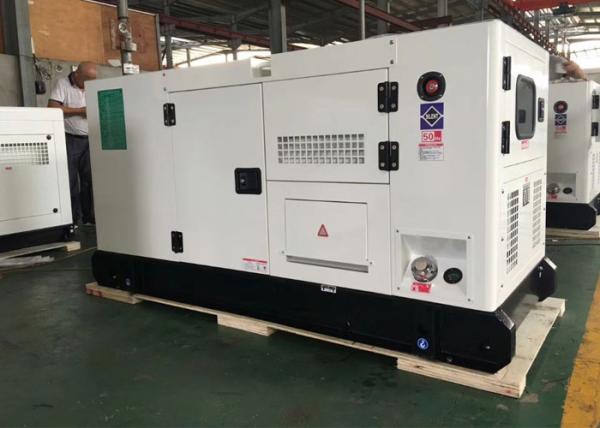

Canopy

· All canopy designed with modular principles

· All metal canopy parts painted by electrostatic polyester power paint

· Soundproof design ensure that the noise level be controlled in small scope

· Convenient to lift and move

· Easy to maintenance and operate

Base Frame

· Base frame including position for forklift and crane

· Integral fuel tank

· Daily fuel tank continuously supply for 8-24 hours

· Fuel tank easy to maintain and clean

· Anti-vibration pads are flexed between engine and alternator.

Control System
Control, monitor and protect the Generator Set including:

· High water temperature

· Low oil pressure

· Over and under speed

· Over current

· Under/Over generator voltage

· Start and stop failure

· Low and high battery voltage

· Charge fail

· Emergency stop

Specifications:

Technical Parameter for Diesel Generator Genset Model TG30C
Prime Power 28kVA/22kW
Standby Power 30kVA/24kW
Frequency 50Hz
Rated Voltage 380V
Power Factor 0.8
Engine Brand Cummins
Engine Model 4B3.9-G1
Alternator Brand Stamford
Alternator Model PI 144F
Engine General Data Max Output (kW) 27
Cyl / Arrangement 4L
Displacement (L) 3.9
Air Intake way Natural
Bore×Stroke (mm×mm) 102x120
Compression Ratio 16.5:1
Speed Governor Mechanical
Fuel Consumption at 100% load(L/H) 6.7
Alternator Data Model TGI184S-22
Brand Tecgen Stamford
Rate Output 27kVA/22kW
Frequency 50Hz
Altitude ≤1000
Insulation Class H
Protection Grade IP 23
Optional brand Leroy Somer, Marathon and Chinese brand Brushless Alternator
Control System Brand Smartgen
Model HGM6120N
Functions Control with AMF module
Static with auto. battery charger
Emergency stop push button
Alarm
Optional brand Deepsea, ComAp
Cooling System Water-cooled, 50℃ radiator with Cooper

Stamford Cummins Diesel Generators 50HZ 380V 30kVA 24kWStamford Cummins Diesel Generators 50HZ 380V 30kVA 24kW

Service:
1)Before-sale Service:
We provide detailed product technical parameters for equipment choosing and system designing.
2)Service quality assurance:
Our sale staffs are all experlence and professional ,who can provide the most proper system design and optimized equipment for the customers.
3)After sale maintenance service:
We create files for end user and provide them follow-up service, regular return visit and permanent maintenance.
4)Spare parts supply:
We provide all kinds of spare parts and technical support.
